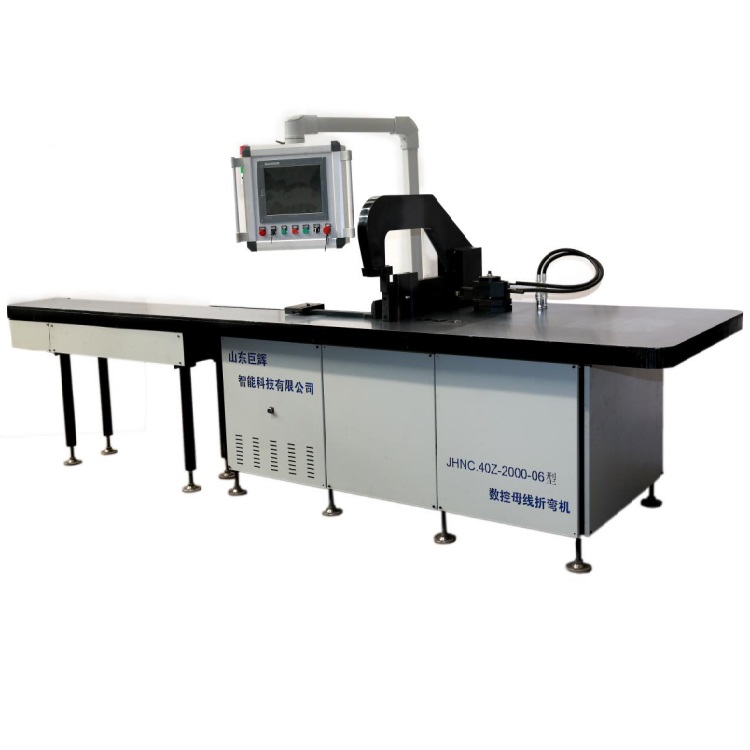

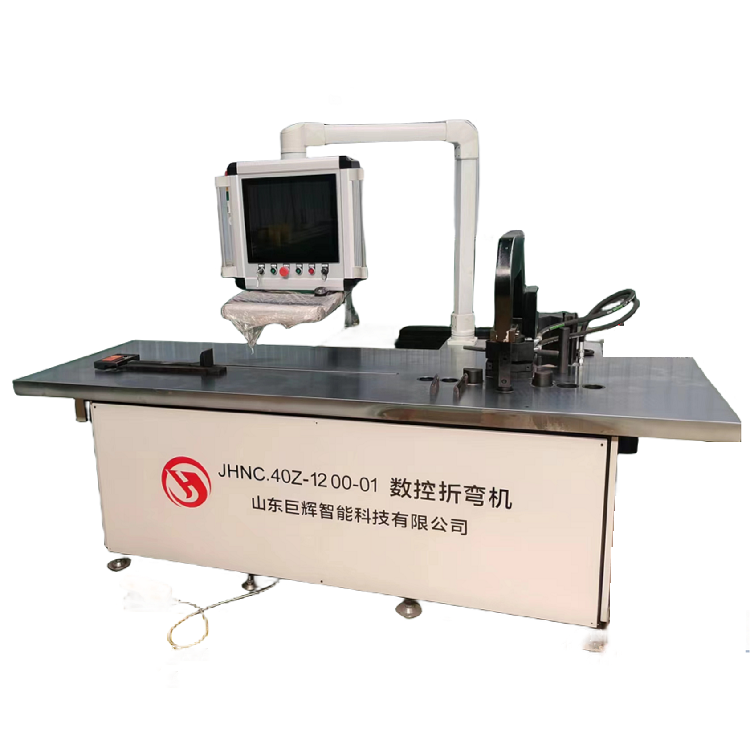

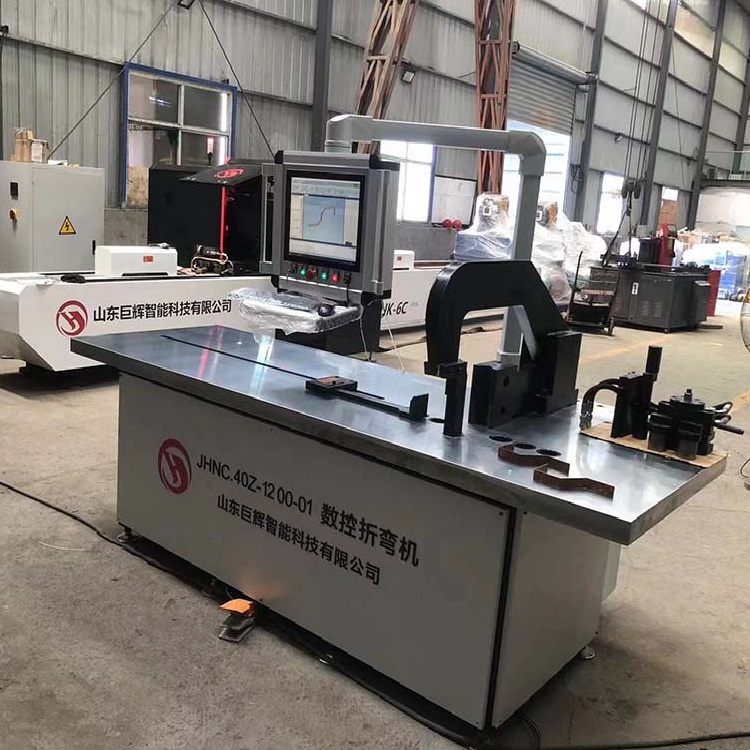

A CNC busbar bending machine is a specialized equipment machine for busbar bending processing, controlled by a computer.XAxlesYThe axis movements are intercoordinated, assisted by manual feeding, to accomplish various bending actions. Different molds can be used to complete flat bending, lateral bending, and other processing techniques for busbars. The machine can be integrated withJH3DSoftware is designed for use in conjunction with the bending machine. It accurately calculates the unfolding length for parts with multiple bending cycles, automatically determines the bending sequence, and achieves automated programming simulation of the bending process. It places the blanking die according to the simulated bending sequence, preventing errors in the bending position.
1Closed-bend structure:X、YThe two shafts utilize precision linear guides to ensure machining accuracy, avoid the drawbacks of open bend, and maintain consistent machining angles in the width direction. During the bending process, the mold of this machine features automatic clamping and release functions to guarantee the flatness of the machining plane.JHD)Connecting to the machine, it achieves programming automation. The software is user-friendly and quick to operate. It accurately calculates the punching positions after the bending unfolding, automatically generates machine codes, and eliminates the laborious process of manually compiling machine codes. It also demonstrates the entire process of busbar bending and processing, effectively preventing material waste caused by manual code input errors. Our company was the first to apply computer 3D graphic technology to the busbar processing industry, making a significant contribution to the entire industry, with its technology being at an international level.
3Touchscreen: Human-machine interface, easy to operate, real-time reflection of program running status, with the function to display equipment operation alarm information, and allows for simple setting of mold parameters and operation of equipment.
4High-speed operating system: Precision ball screw drive with high-precision linear guides, offering high accuracy and rapid efficiency. Long service life, noise-free operation.
