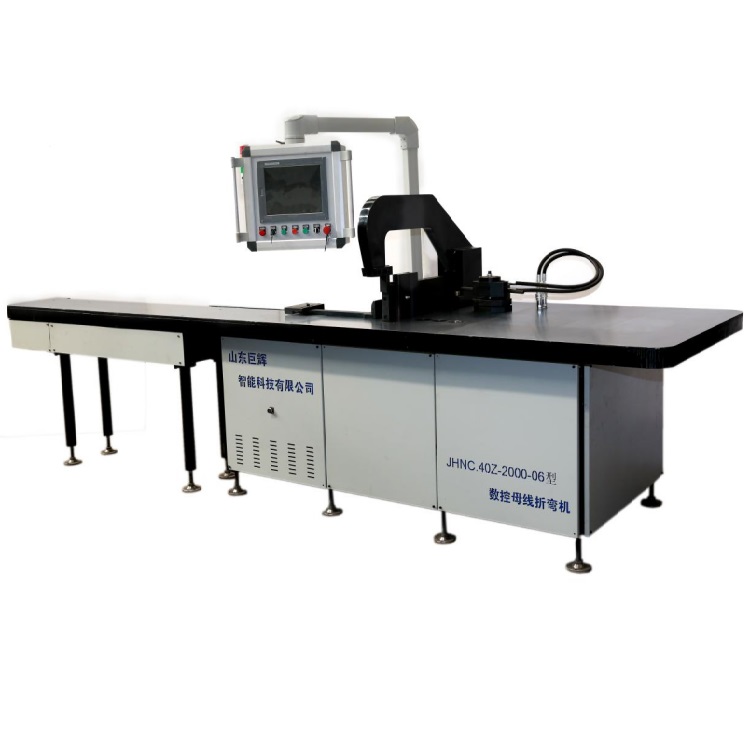

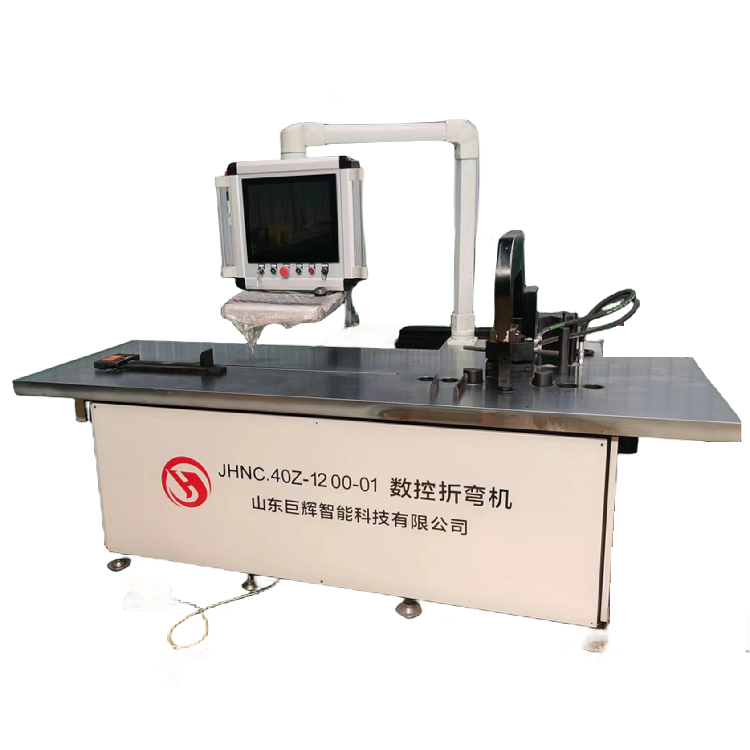

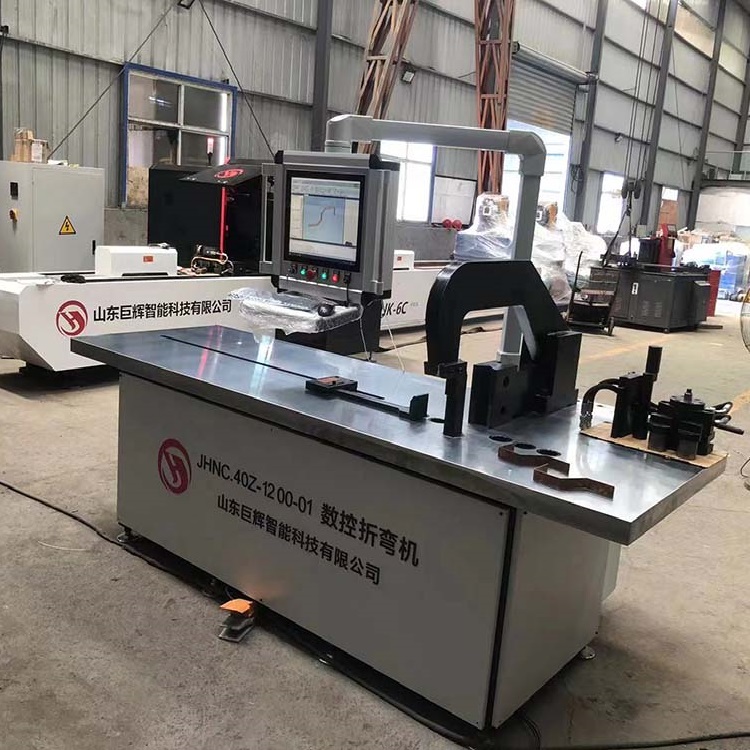

Numerical Control Bus Bending Machine is a specialized machine tool for bus bending processing, controlled by a computer.XAxlesYAxial movement coordination, manual feeding assistance, and completion of various bending actions. Different molds can be selected to achieve flat bending, side bending, and other processing technologies for busbar arrays. This machine can be used withJH3DSoftware is used in conjunction, accurately calculating the bending lay length for parts with many bending cycles. It can automatically determine the bending sequence, achieving automated programming and simulation of the bending process. The motherboards are placed according to the simulated bending sequence, preventing errors in the bending bending positions.
1Closed bend structure:X、YTwo axes utilize precise linear guides to ensure machining accuracy, avoid the drawbacks of open bending, and maintain consistent machining angles in the width direction: during bending, the mold of this machine has automatic clamping and release functions, ensuring the flatness of the machining plane.JHD)Connect the machine to use it for programming automation. The software is user-friendly and fast to operate. It accurately calculates the piercing positions after bending unfolding and automatically generates machine codes, eliminating the need for time-consuming manual coding. It also demonstrates the entire process of busbar bending and processing, effectively preventing material waste due to manual code input errors. Our company was the first to apply computer 3D graphic technology to the busbar processing industry, making a significant contribution to the entire industry, with its technology being at the international level.
3Touchscreen: User-friendly interface, simple operation, real-time display of program running status, equipped with alarm information display for equipment operation, and allows easy setting of mold parameters and control of equipment operation.
4High-speed operation system: Precision ball screw drive with high-precision linear guides, offering high accuracy and fast efficiency. Long service life, noiseless operation.
