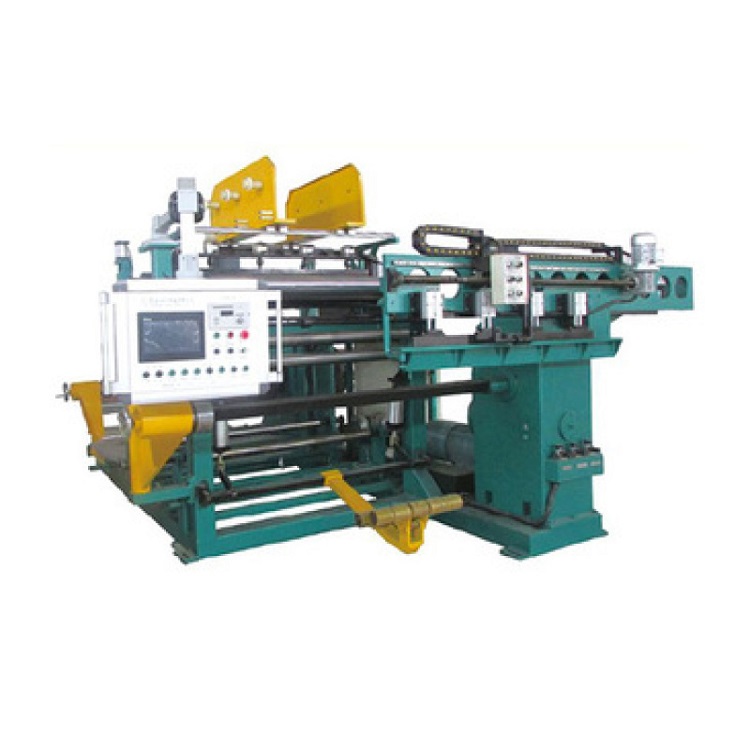

A箔式线圈 winding machine, also known as a foil winding machine, is a specialized equipment for winding transformer foil coils.

The foil material is drawn through the unwinding device into the胶辊 of the machine, then passes through the roller of the roughening device and the blade of the cutting device, finally wound onto a winding mandrel. The interlayer insulation reels are loaded behind the winding shaft of the foil winding machine, cut by the edge roller and blade, and then wound onto a winding mandrel.

● This equipment features a photo-hydraulic alignment system, manual/Automatically adjusts foil material positioning for added convenience and reliability.

● The feeding head utilizes a hydraulic expansion and contraction mechanism, offering convenient and effortless operation.

● The foil tensioning utilizes advanced tension vector control technology, ensuring precise, convenient tension control, maintaining the required tension during forward winding, stopping, and unwinding to secure tight coils. The interlayer paper tensioning employs advanced devices like air-inflated shafts and magnetic particle clutches, making material change and tension adjustment quick and easy. The automatic welding and rolling cutting mechanisms are driven by ball screw and linear guide rail, guaranteeing the equipment's lifespan and precision. This equipment is the first to adopt an integrated swing frame, effectively addressing issues of fewer coil turns and lagging correction.

● This equipment is a high-tech product developed based on the summary of numerous similar products both domestically and internationally, and tailored to the actual production needs. The entire unit employs advanced...PLCHigh-level automation, simple and reliable operation, representing the higher production level of domestic foil winding machines.
