Detailed description of BRQ0.2 plate heat exchanger:

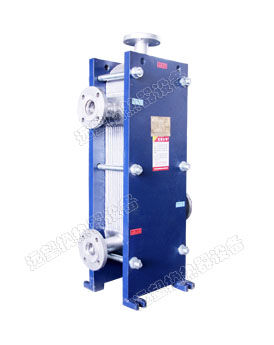

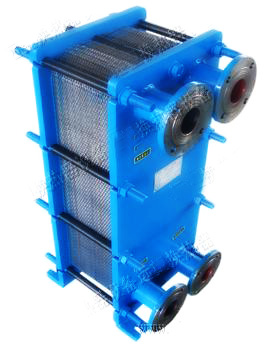

BRQ0.2 Plate Heat Exchanger

The BRQ0.2 Full-Welded Plate Heat Exchanger (hereinafter referred to as the heat exchanger) combines the advantages of high-temperature and high-pressure resistance of tubular heat exchangers with the high heat transfer efficiency of removable plate heat exchangers. It features light weight, high heat transfer coefficient, low resistance, easy-to-clean, and versatile adaptability.

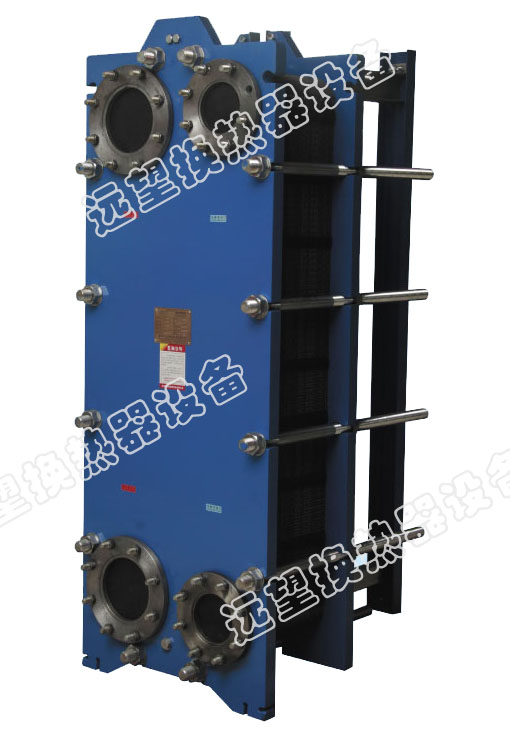

Heat exchangers are primarily composed of plates, end plates, inlet and outlet tube boxes, and end caps, etc.

The plate bundle is composed of alternating adjacent plates arranged at a 180-degree angle and joined by welding to form a channel. Fluid flows through the inlet and outlet flanges in a countercurrent manner within the plates. Due to the wavy ridges on the plates, the fluid continuously changes direction within the channel, creating turbulence, thereby significantly enhancing the heat transfer efficiency.

Section II: Equipment Dimensions

Product Features:

Advanced energy-saving heat exchange equipment with high heat transfer efficiency

Compact structure, easy operation

Withstanding high pressure and high temperature

Welded-sealed structure

Mechanical or chemical cleaning for cleaning purposes, ensuring thorough cleaning and enhancing heat exchange efficiency.

Sheet material:

Sheet Material: SUS304, 321, 316L, etc.

Sheet thickness: 1.2-0.8mm

Application Scope:

Suited for departments such as chemicals, metallurgy, machinery, power, mining, dyeing, and urban heating, to meet various process requirements including heating, condensation, cooling, and heat recovery.

Main technical parameters of BRQ0.2 plate heat exchanger:

Sheet size: 243 x 618 mm

Spacing: 4.0mm

Single Heat Transfer Area: 0.02-1.4 m²

Assembled Area: 2-1000m²

Water Treatment Capacity: 5-2,500 m³/h

Work Pressure ≤ 3.0 MPa

Operating Temperature ≤ 300℃

Flow Channel Cross-sectional Area: 0.00036-0.00261 m²

Pipe Diameter: 20-600mm
