Product Details
Section 1: Part Parameters and Technical Requirements
Material: QT500-7
Hardness: HRC 20-35
3. Drilling Range: φ50mm - φ100mm
4. Machining Hole Diameter Precision: Basic Hole Diameter + 0.15mm
5. Hole Roughness: Ra6.3
6. Axial runout Ø0.1, positional accuracy Ø0.2.
Section II: Technical Description

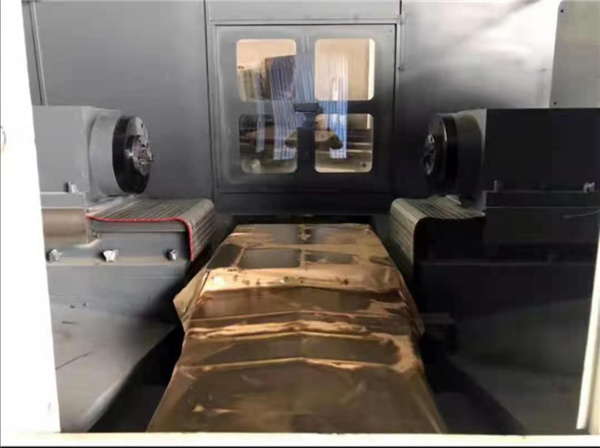

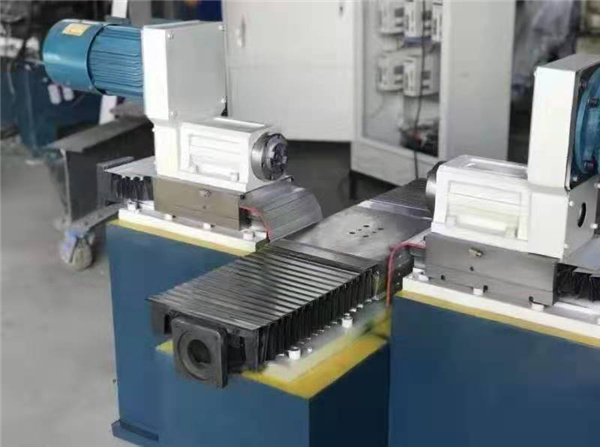

1. This equipment is a horizontal CNC automatic dedicated machine, featuring the GuangDong 980 three-axis CNC system. Drilling time: 2 minutes per piece (Product: FSJ07010A0-00001 - Rotating Body). It is manually loaded and unloaded, controlled by the CNC switch.
2. Operation Cycle: Manual loading and clamping—Close safety door—Press cycle start—Main shaft rotates—Cooling on—Both main shafts rapid forward—Main shaft feeds and drills—Main shaft rapid retract—Axis stops—Cooling off—Open door and unload—Enter next cycle.
Section 3: Key Structural Features
Base, sliding base, workbench, main spindle box, and other main components are made of HT250 cast iron. The base features a box-like structure with a compact and rational symmetrical rib design, ensuring high rigidity and bending vibration resistance. The X, Y, Z-axis guide rails are designed with rectangular guide ways, effectively guaranteeing rigidity and precision during powerful drilling on the X and Y axes. The base components are cast using resin sand molds and are heat-treated manually, providing assurance for the long-term stability of the machine tool's performance.
2. The X/Y-axis feed utilizes a high-torque servo motor paired with a high-strength TBI ball screw, ensuring quick feed rates, high torque, and resistance, thereby guaranteeing the workshop's efficiency and stability.
3. Feeds in X, Y, and Z directions utilize high-precision, high-torque imported TBI internal recirculating double nut pre-tensioned ball screw with large lead, ensuring high feed speed. The drive motor is directly connected to the ball screw via a flexible coupling, with the feed servo motor directly transferring power to the high-precision ball screw, guaranteeing the machine tool's positioning accuracy and synchronization.
4. The spindle features a central coolant supply cooling structure, with a BT50 spindle taper bore, and the maximum coolant pressure can reach 4 MPa.
5. Steel protective devices are used for the X/Y/Z-axis guides and screws, ensuring the cleanliness of the screws and guides, thereby guaranteeing the transmission accuracy and lifespan of the machine tool.
6. The machine tool exterior is designed with a full-coverage protective structure to prevent coolant splashes, ensuring easy operation and reliable safety.
7. Equipped with a reliable centralized automatic lubrication system, the machine tools are automatically and intermittently lubricated at each lubrication point with timed and measured amounts, allowing the lubrication time to be adjusted according to the working condition.
IV. Technical Specifications:
Serial Number | Item | Parameters and Standards | Note |
1 | Drillable Diameter | Φ10-φ100mm | Cast Iron + Impregnated Drill (U-Drill) |
2 | Drillable Depth | 10-280mm single-sided | |
3 | Z-axis worktable area (Length x Width) | 800mm*400mm | |
4 | Z-axis worktable stroke | 800mm | |
5 | Feed rate of X/Y axis | 1-100mm/min | Left and right sides |
6 | Z-axis worktable feed rate | 1-100mm/min | |
7 | X/Y shaft motor power | 7.5KW, 6th-level Variable Frequency | |
8 | X/Y Axis Drive Method | 2:1 synchronized wheel + synchronous belt connection | Conveyor belt width increased to 60mm |
9 | Spindle speed for X/Y axis | 1000r/min | |
10 | X/Y shaft output torque | 400N.m | Spindle speed at 400-500 rpm |
11 | X/Y axis movement | 0.01mm/100mm | |
12 | X/Y Spindle Bore and Tool Mounting Method | BT50 | Rod Extension |
13 | Center Knife Eject Pressure | 4MPa | |
14 | Servo motor maximum torque for X, Y, Z axes | 10/10/15 | |
15 | Tap Center Flow Rate | 50L/Min | |
16 | X/Y/Z axis positioning accuracy | 0.01mm | |
17 | Repetitive positioning accuracy of X/Y/Z axis | 0.01mm | |
18 | Feed servo motor power for X/Y axis | 1.5KW | |
19 | Total Machine Tool Weight | 1≤4200KG | |
20 | Main unit footprint (Length x Width x Height) | 3200*2800*1900 | |
21 | Machine Tool Color | Black on bottom, white on top |
V. Equipment Configuration:
Serial Number | Name | Model | Quantity | Origin/Brand | Note |
1 | Body | Full Body HT250 Casting | 1 unit | Self-made | |
2 | X/Y Axis Main Spindle Box | BT50 Tap | 2 units | Domestic-made | |
3 | Numerical Control System | Wide Number 980TB3 | 1 unit | Guangzhou | |
4 | Servo Feed Motors and Drives for X, Y, Z | Wuhan Maisen | 2 units | Wuhan | |
5 | XYZ-axis rectangular guide rail slider | High-frequency quenching, hand scraping and polishing | Self-manufactured | ||
6 | X/Y Axis Ball Screw | C7 Grade/3210 | 2 pieces | Shanghai Silver Rolling | |
7 | Z-axis ball screw | C7 Grade/4010 | 1 piece | Shanghai Silver Rolling | |
8 | X, Y, Z axis screw bearings | Ball screw special human-made bearing | 3 sets | Hangzhou | |
9 | X/Y shaft bearing | Human-Centric Bearings | 2 sets | Hangzhou | |
10 | X/Y/Z Axis Sliding Table | 360/400/360 | Self-made | ||
11 | X/Y axis main shaft motor | 7.5KW/6 | 2 units | Shanghai | |
12 | Work Light | LED | Nantong | ||
13 | Cooling System | Lingxiao Pump, copper tube fittings connection, explosion-proof pipes | Guangdong | ||
14 | Lubrication System | Electric Oil Pump | Nanjing | ||
15 | Electrical System | Delixi, Zhegao, Panasonic | Domestic-made | ||
16 | Chipper system | Φ100 Helical Square Steel, 0.75KW Reducer | Weihai | ||
17 | Body protector shield | Machine tool full-coverage sheet metal, PV glass, explosion-proof machine tool lights |
