Features:

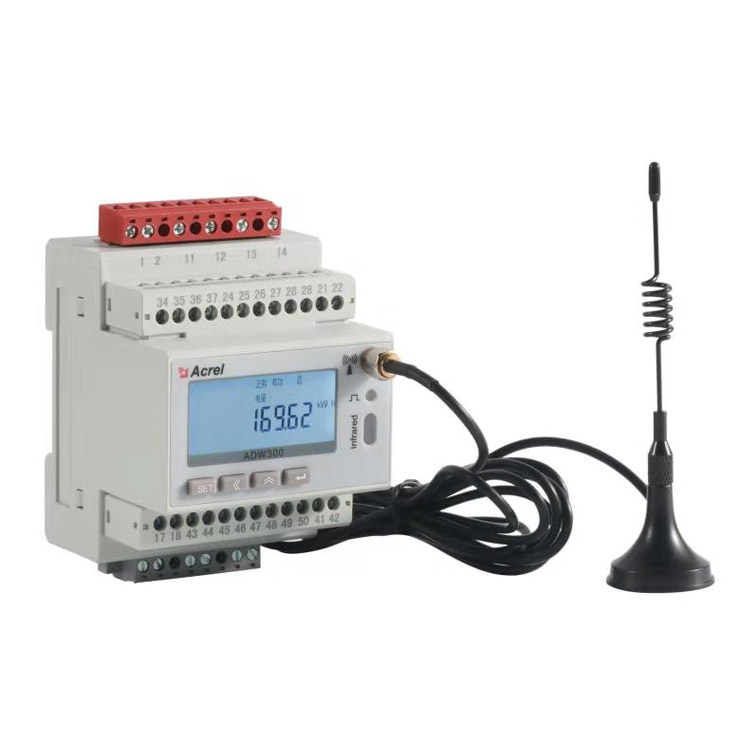

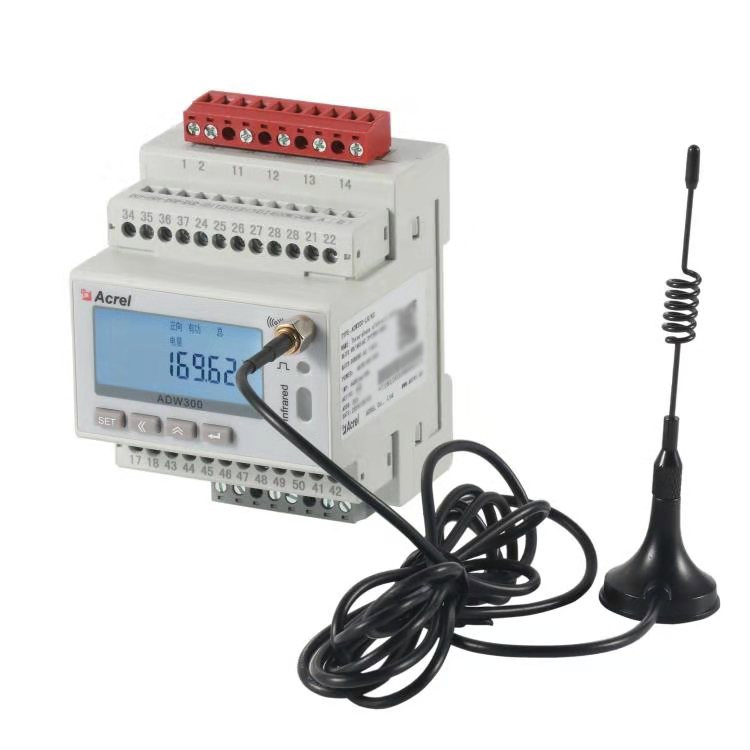

The ADW300 Wireless Metering Instrument is primarily used for measuring three-phase active electrical energy in low-voltage networks, featuring RS485 communication and 470MHz wireless communication capabilities, facilitating power consumption monitoring, centralized collection, and management. It can be flexibly installed inside distribution boxes, enabling itemized electrical energy measurement and statistical analysis for different areas and loads.

Application Scope:

The ADW300 facilitates user electricity monitoring, collection, and management, and can be flexibly installed in distribution boxes. It is suitable for online monitoring platforms such as power operation and maintenance and environmental protection supervision.

Order Example:

Specific Model: ADW300W-LR/KCTL

Technical Specifications: Rated Current 3×1.5(6)A (ADW300W), 3×20(100)A (ADW300W)

Communication Protocol: C: RS485 Communication; LR: LoRa

Auxiliary Power Supply: AC 220V

Application Network Diagram:

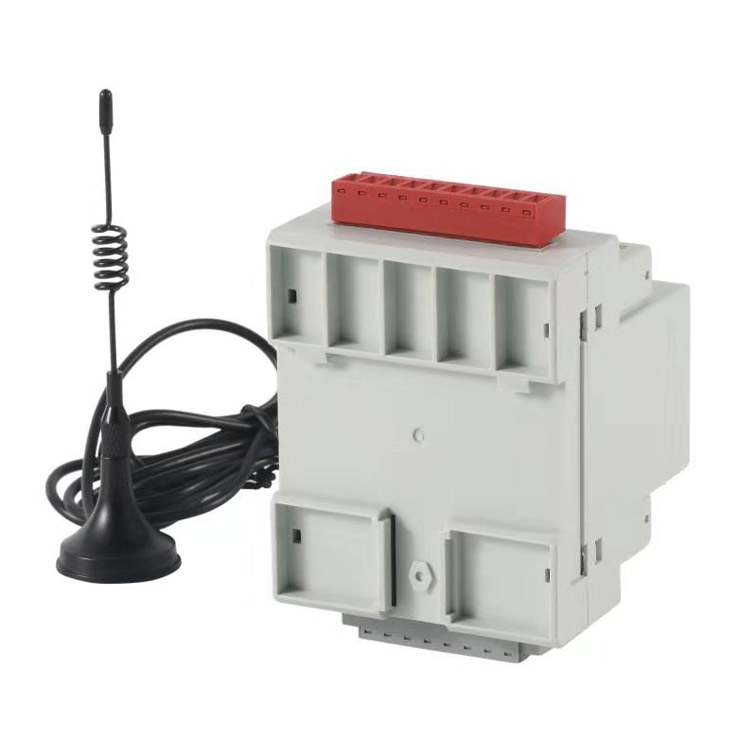

Exterior Installation:

Dimensions

Wiring method

ADW300 Three-Phase Four-Wire

ADW300 3-phase 3-wire

ADW300W Three-Phase Four-Wire

Installation Diagram

Site installation diagram

Product Quotation:
