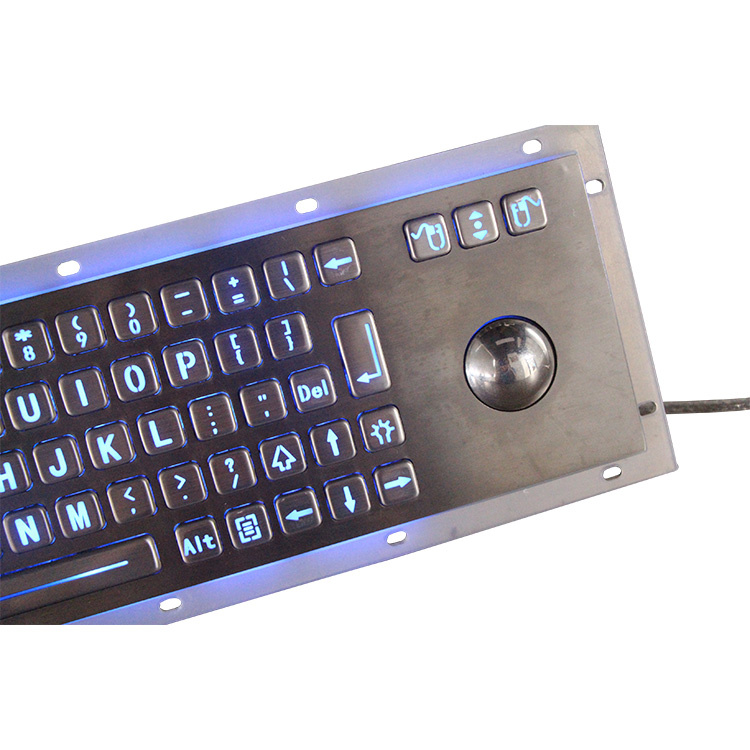

Key Features
The keyboard assembly panel and keys are made of high-quality SUS304 stainless steel, offering strong resistance to damage. The product boasts excellent anti-vandalism, corrosion resistance, and waterproof properties. Particularly in harsh environments, it operates exceptionally well.
2. User-friendly key layout with surface made of SUS304 stainless steel brushed material, embossed with patterns and characters followed by injection molding process. The characters will not fall off or wear out after long-term use. We can customize any key surface in various languages to meet the needs of different countries and custom requirements. Control circuit modules can also be tailored to customer specifications.
3. The keyboard features a unique enclosed silicone seal design, providing excellent waterproof and dustproof capabilities.
4. The signal contact employs a convex key technology with silicone carbon particles and gold-plated PCB fingers for a good electrical connection, offering sensitive response and tactile feedback, enabling users to achieve accurate, quick, and noise-free data input.
5. The aluminum plate features fixed mounting holes for easy installation. It uses a bottom installation method, and the setup is straightforward. The interface is compatible with universal USB and PS2 ports, allowing for plug-and-play operation with the system host's built-in drivers. The buttons can also be customized to meet customer requirements for UART/RS232/RS485 serial communication interfaces.
Mechanical data:

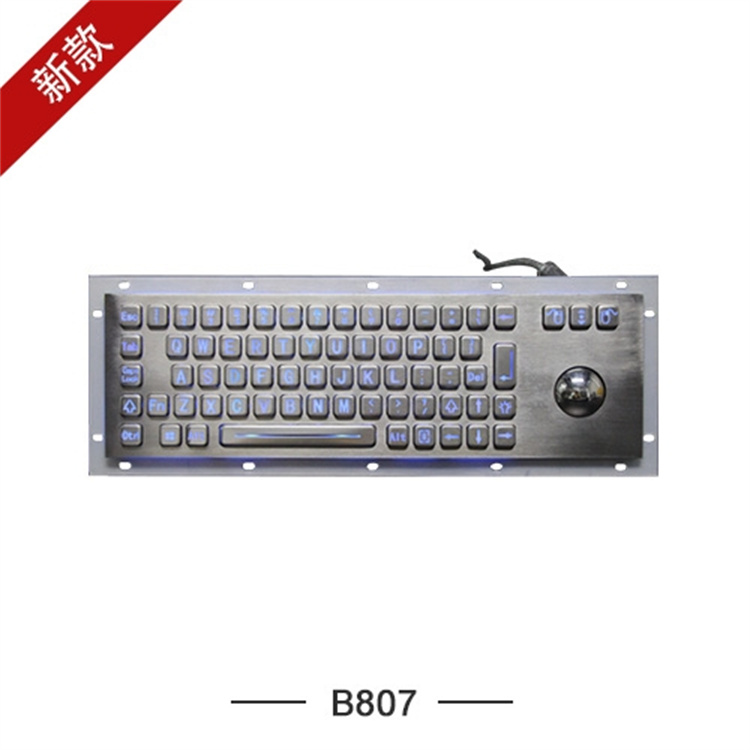

Button: 66 keys, high-quality SUS304 brushed stainless steel button, button size: 13.7x13.7mm (millimeters)
Button hole size: 14mm x 14mm, Enter key: 14mm x 28mm, Space key: 14mm x 100mm
Key travel: 1.5mm
Button Force: 14mm x 14mm button is 120g/1.17N, 14mm x 28mm button is 240g/2.35N (contact force)
Keypress Life: >2 million presses per key
Front panel: 1.5mm thick high-quality SUS304 brushed stainless steel plate
Back panel: 3.0mm thick anodized aluminum sheet
Trackball: 38mm (diameter); Optional with IP67 photoelectric ball for 800 DPI resolution and laser ball for 1200 DPI resolution.
Weight: 1.5 kg
Dimensions: 345mm x 105mm (front stainless steel panel), 367mm x 129mm (rear aluminum base)
Electrical Environmental Parameters
Working Voltage: DC +5V; Current ≈ 30mA (non-backlight state)
Interface Technology: PS2, dual-magnetic-loop anti-interference high-speed USB interface, optional key UART/RS232/RS485 serial port
Switching technology for push buttons: Silicone Carbon Particle / Gold Filled PCB
Operating System: DOS/Windows 95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OS X
Relative Humidity: 30%-90% RH (non-condensing)
Operating Temperature: -25℃ to +65℃
Storage Temperature: -40℃ to +85℃
Atmospheric Pressure: 60-106 KPa
Waterproof Rating: IP67
Anti-riot standard IK09
Reliability Parameters:
Waterproof and dustproof rating: IP67 (surface)
Anti-riot standard: IK09
