Feature Highlights

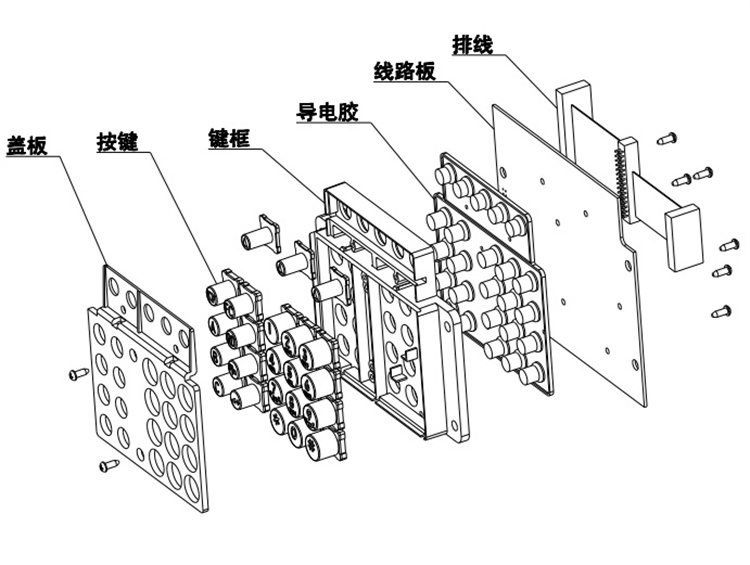

The keyboard assembly is composed of special PC/ABS key frames and zinc alloy keys. The product boasts excellent anti-vibration, anti-corrosion, and waterproof properties. Particularly, it operates effectively even in harsh environments.
2. Humanized key layout with deeply die-cast patterns and characters on the surface for better operation, ensuring that characters won't fall off or wear out even after long-term use. The surface characters and patterns can be customized according to customer requirements.
3. The keyboard features a unique enclosed film installation design, offering excellent waterproof and dustproof capabilities.
4. The keyboard PCB board is a double-sided gold-plated board with silicone conductive carbon particles for contact, ensuring reliable connections.
5. Zinc alloy push buttons, with custom painting available for surface characters and patterns in required colors.
6. Surface plating colors for keypad: Bright Chrome, Matte, available for custom orders as per customer request.
7. Conductive rubber is made from natural silicone, featuring wear and corrosion resistance, as well as anti-aging properties.

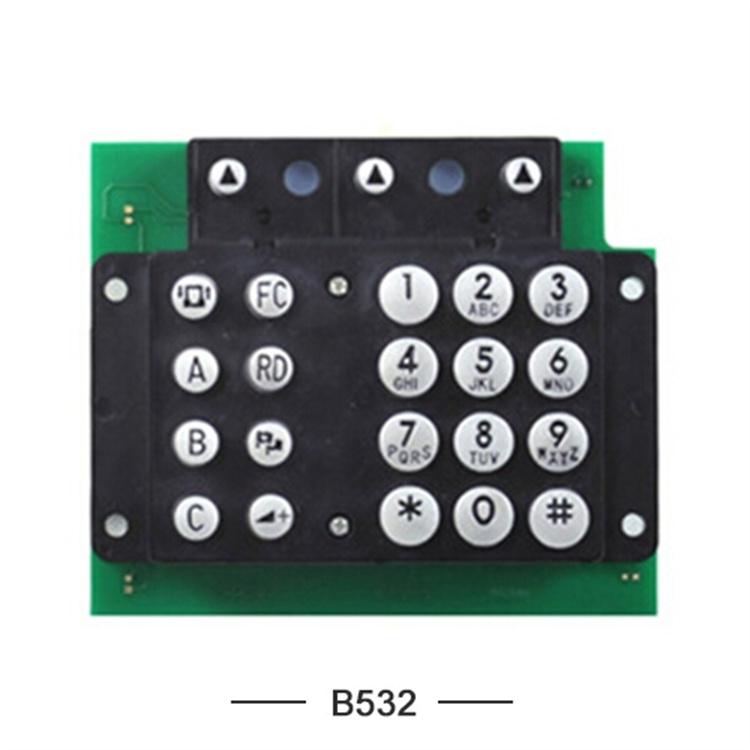

8.4" x 5" keyboard design, featuring 10 numeric keys and 13 function keys. The key layout can be redesigned according to customer requirements.
9. Output interfaces include USB, PS/2, RS232, and XH connectors (optional).
10. Easy and convenient embedded installation.

Packaging Details
Outer Carton Dimensions: 50×39.5×14.5 ccm
1 Case Quantity: 22 PCS
After-sales Service
In the absence of man-made damage, our company is responsible for free repairs within 1 year.
