Features and Benefits

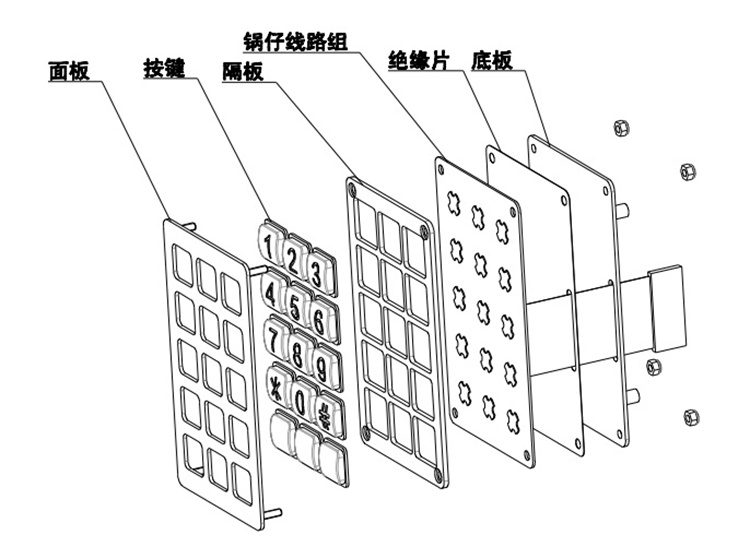

The keyboard assembly is composed of a 304 stainless steel panel and zinc alloy keys. The product boasts excellent anti-vibration, anti-corrosion, and waterproof properties. Particularly, it operates flawlessly in harsh environments.

2. Humanized key layout with moderately deep-molded patterns and characters on the key surface for better operation, ensuring the characters do not fall off or wear out over long-term use. The characters and patterns on the key surface can be customized according to customer requirements.

3. The keyboard features a unique sealed film installation design, offering excellent waterproof and dustproof capabilities.

4. The keyboard PCB board is a double-sided gold plated board with metal potting lines, ensuring reliable contact.

5. Zinc alloy push buttons, the surface characters and patterns can be painted in the requested color.

6. Key surface electroplating colors available: bright chrome, matte. Custom colors can be produced upon customer request.

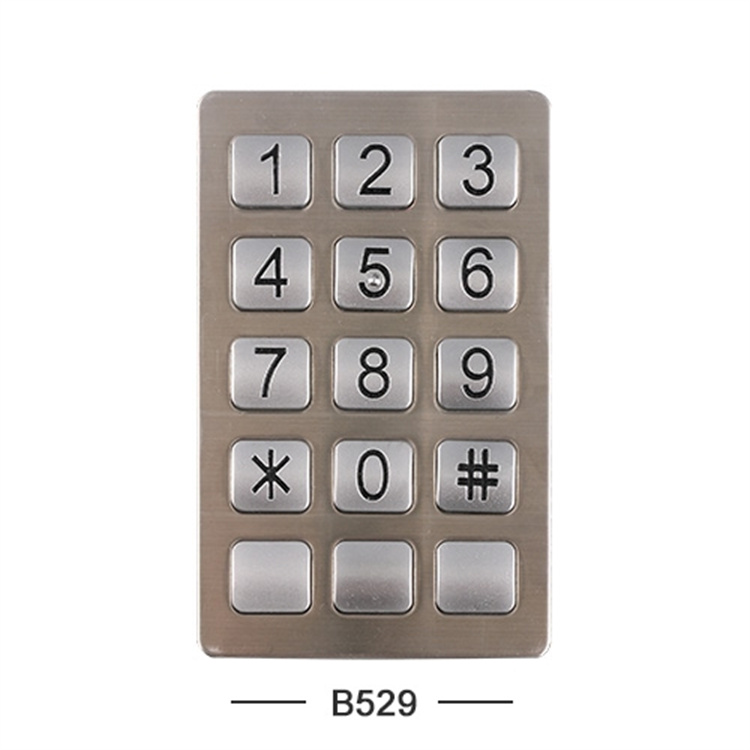

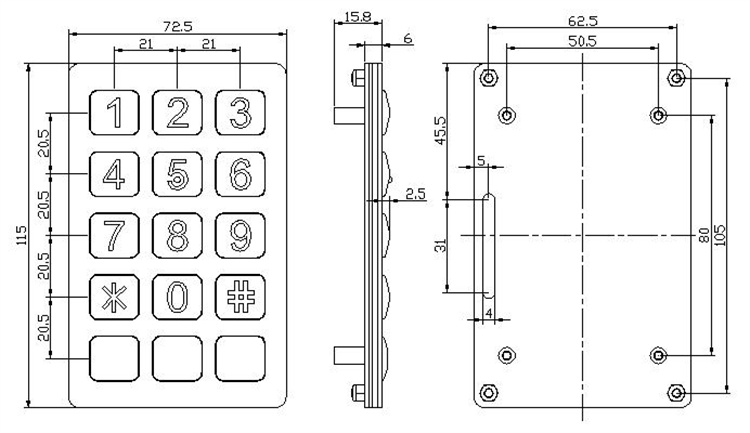

7.3" x 5" keyboard design, with 10 numeric keys and 5 function keys. The key layout can be redesigned according to customer requirements.

8. Output interfaces include USB, PS/2, RS232, and XH connectors (optional).

9. Easy and convenient embedded installation.

Packaging Details

Outer carton dimensions: 37×33×12cm

1 Carton Quantity: 30 PCS

After-sales service

In the absence of human damage, our company is responsible for free repairs within 1 year.
