Features and Benefits

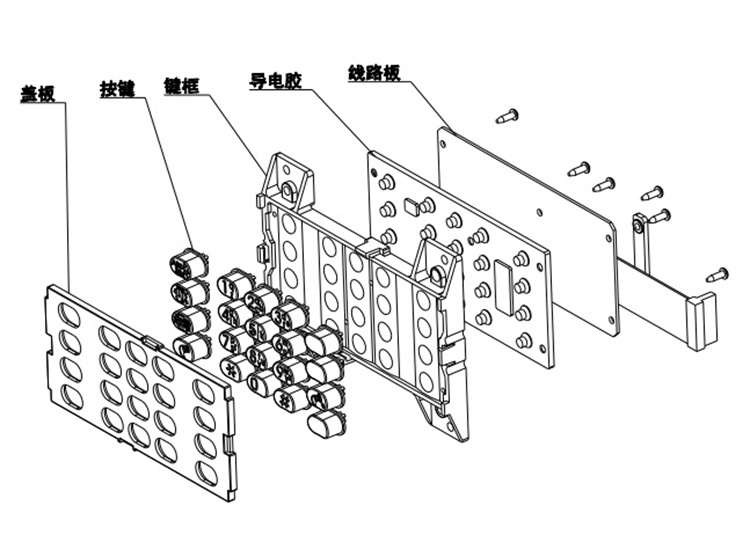

The keyboard assembly is composed of special PC/ABS key frames and zinc alloy keys. The product boasts excellent anti-vibration, anti-corrosion, and waterproof properties. Particularly, it performs well under harsh conditions, allowing for easy operation.

2. Humanized key layout with moderately deep-molded patterns and characters on the button surface for better operation. The characters and patterns will not fall off or wear out even after long-term use. The surface characters and patterns can be customized according to customer requirements.

3. The keyboard features a unique sealed film installation design, offering excellent waterproof and dustproof capabilities.

4. The keyboard PCB board is a double-sided gold plated board with silicone conductive carbon particles for contact, ensuring reliable connection.

5. Zinc alloy push buttons, the surface characters and patterns can be painted in the specified color.

6. Key surface electroplating colors available: bright chrome, matte, custom colors upon customer request.

7. Conductive rubber is made from natural silicone rubber, offering abrasion resistance, corrosion resistance, and aging resistance.

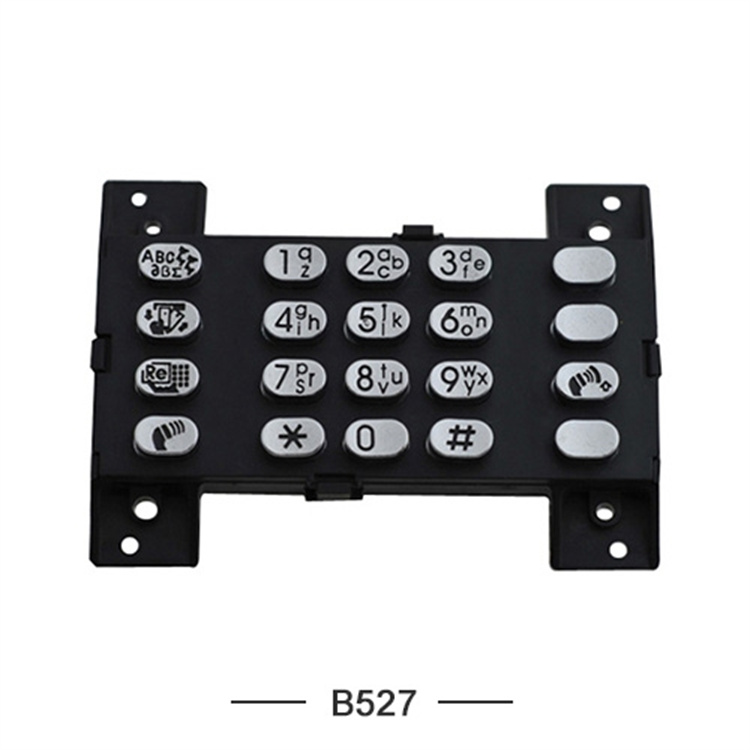

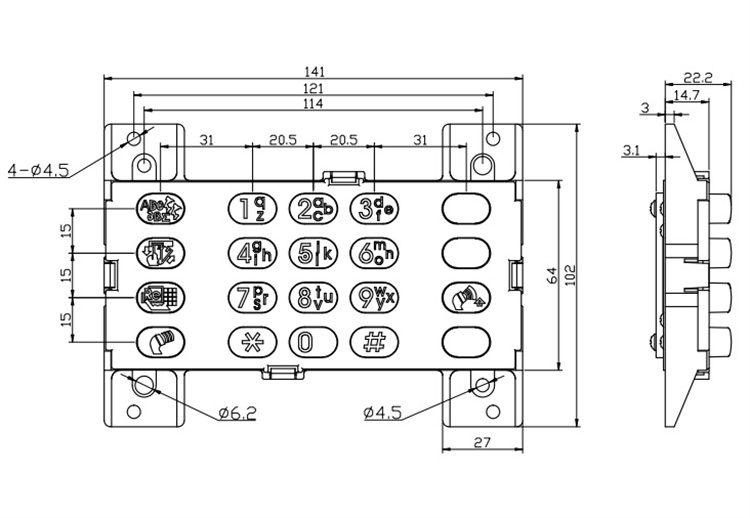

8.5" x 4" keyboard design with 10 numeric keys and 10 function keys. The key layout can be redesigned according to customer requirements.

9. Output interfaces include USB, PS/2, RS232, and XH connectors (optional).

10. Easy and convenient embedded installation.

Packaging Details

Outer Carton Dimensions: 45×35×20 ccm

1 carton quantity: 20 PCS

User Selection

Chrome plated button finish: Bright Chrome, Satin Chrome

2. Keyframe colors can be custom made to customer specifications

3. In addition to phone sets, we can also design keyboards for other uses.

After-sales service

In the absence of human damage, our company is responsible for free repairs within 1 year.
