Product Description:

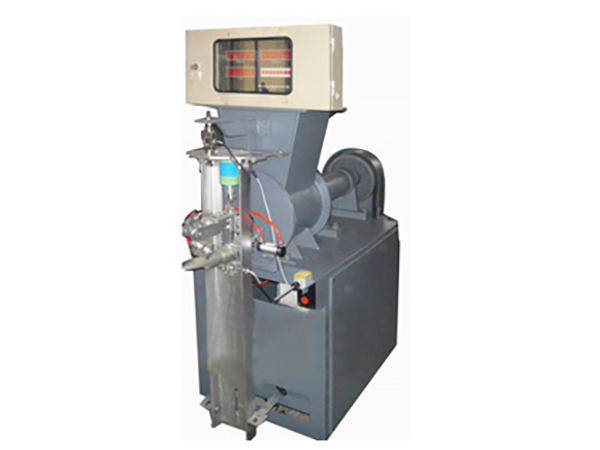

The LB-50 Spiral Cement Packaging Machine is a spiral filling type. It features continuous, smooth, quick, gas-free, and accurate metering with high output. The equipment boasts stable performance, reasonable structure, precise weighing, and an integrated automatic function. It is widely used for packaging materials in good fluidity and granular form.

I. Performance and Features:
LB-50 Spiral 1/2/3/4 Head Automatic Cement Packaging Machine, with accurate measurement and low failure rate, featuring the following:
Accurate weighing, stable performance, and easy operation.
2. Good sealing, reasonable structure, and durable.
3. Compact, lightweight, and easy to adjust and maintain.
4. Integrated machinery, electrical, and gas systems with high level of automation.
5. Versatile Use: This machine is not only used for cement packaging, but also for packaging other flowable powdery or granular materials.
Section II: Technical Specifications:
1. Bagged: Single bag weight 50 ± 0.5 kg
2. Bag weight pass rate: 98%
3. Yield per mouth: >15t/h
4. Motor Power per Mouth: 5.5 kW
Single nozzle feeding machine motor power: 1.5 kW
Double mouth feeding machine motor power: 2.2 kW
Four-mouth feeding machine motor power: 4 kW

The LB-50 series spiral cement packaging machine is a new product developed and produced by our factory to meet market demand. Its feature is to change the traditional impeller conveying of fly ash to spiral filling conveying, thereby solving the problem of high-speed impeller conveying, which causes the new national standard plastic woven cement bags to be underfilled and have unstable measurement due to air resistance. The spiral filling conveying ensures continuous, quick, and airless operation, and has a high production rate, making the new product immediately popular among cement manufacturers upon its launch.

This machine utilizes pneumatic components such as air compressors, solenoid valves, and cylinders to achieve automated functions like bag tightening, loosening, automatic discharge, and bag removal when full. The design of this product is innovative, with a unique structure, stable performance, excellent sealing, high bagging capacity, high level of automation, simple operation, and low maintenance costs. The production process only requires manual bag insertion, with the weighing mechanism and bagging quantity controlled by a microcomputer for accurate measurement. There is no leakage from the discharge nozzles, and the bag weight, under normal material supply, ensures it meets the manufacturer's requirements. In the production and sales of factories, especially in emergency bagging operations like railway transport, it fully demonstrates its strong bagging capabilities, effectively reducing loading time. Therefore, the LB-50 series 1-4 nozzle cement bagging machine is an ideal equipment for modern cement plants and the ideal replacement for current fixed cement bagging machines at home and abroad.

The microcomputer weighing system of this packaging machine was meticulously designed and developed by our technical team, tailored to the characteristics of the spiral filling mechanism for cement materials. It boasts high measurement accuracy and excellent stability.

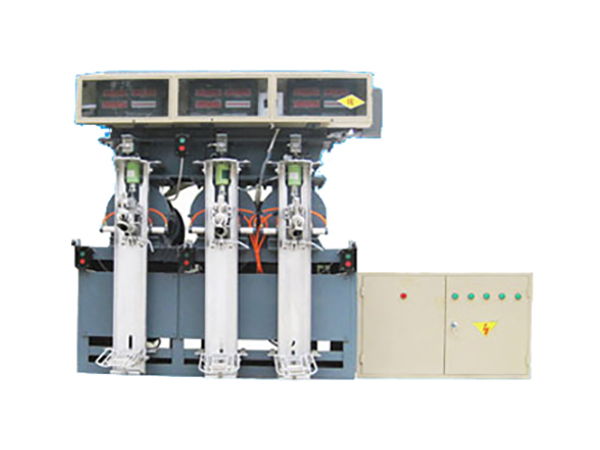

Packaging machines are available in single-head, double-head, triple-head, and quadruple-head models, and can be customized and improved for special packaging machine needs according to customer requirements.

Technical Specifications:
