Ozone GeneratorAlso known as a heavy-duty ozone generator.Shandong Huaxin Ozone Generator ManufacturerDrawing on advanced ozone generation technology, with years of extensive research and manufacturing expertise, we haveLarge ozone generatorWe have a profound expertise in the manufacturing field. The following content is divided into five parts for a brief overview.Large Ozone GeneratorThe working principle content is available for reference.

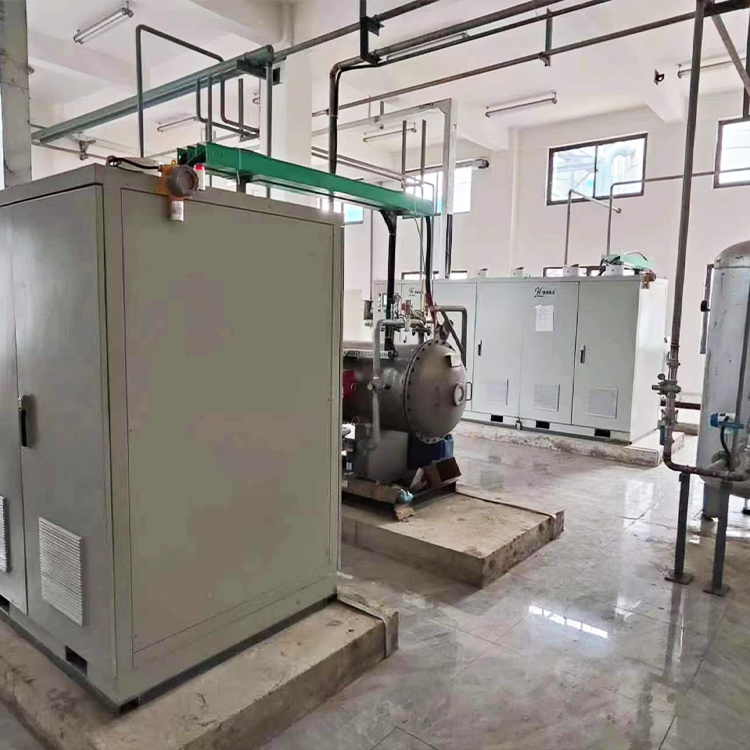

Our large-scale ozone generator system consists of a gas source treatment system, an ozone discharge chamber, a cooling water system, a special ozone mid-frequency high-voltage power supply, and a control system.

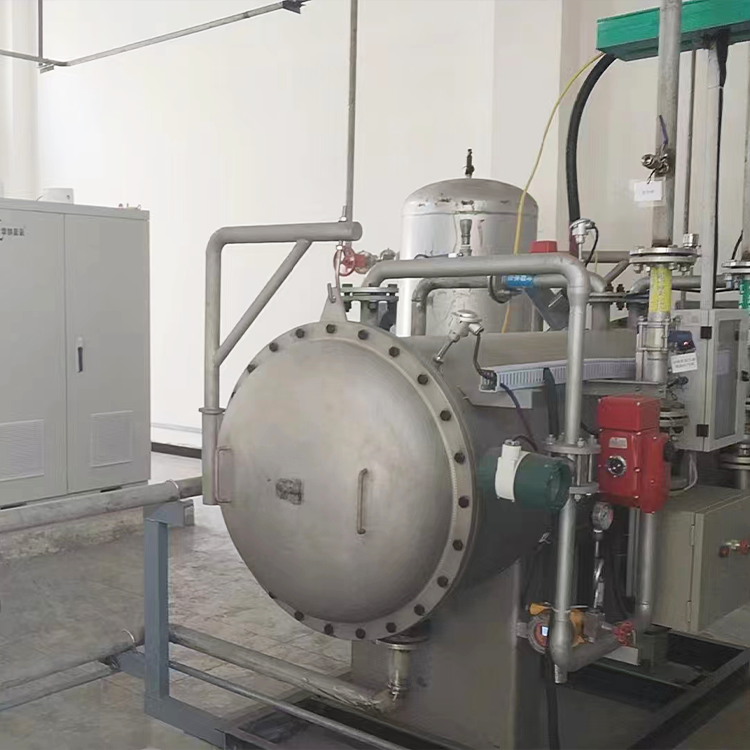

Ozone Discharge Chamber
This section is the unit for installing the ozone generator. The ozone generator is the basic component that constitutes the ozone production, including electrodes and medium tubes.
(2) Electrode
It is the conductive part that forms a conductive junction with media of different conductivity, in the ozone generation unit, it refers to the conductive part where a high-voltage electric field is distributed.
Body.
(3) Medium Tube
Medium tubes are components made of materials that polarize under the influence of an electric field, exhibiting basic electromagnetic field properties. In the ozone generation unit, they refer to the insulating materials located between the two electrodes, responsible for creating a stable glow discharge.
(4) Power Supply
Power section includes a variable frequency controller that can adjust frequency during discharge and a step-up converter that generates the required high voltage during discharge.TransformerConsisting of the following.
(5) Large ozone generators produced by Shandong Hualin Ozone Generator Manufacturer utilize water cooling. They effectively remove the heat emitted during corona discharge with an adequate supply of cooling water that meets quality standards. The cooling water can be recycled and further cooled through external processes. The generator's output can be adjusted according to the user's actual needs and features multiple protection functions to prevent damage in case of accidents.
