Ozone GeneratorAlso known as a heavy-duty ozone generator.Shandong Huaxinlin Ozone Generator ManufacturerDrawing on advanced ozone generation technology, with years of extensive research and manufacturing expertise, inLarge Ozone GeneratorWe have a profound expertise in the manufacturing field. The following content is divided into five sections for your brief overview.Large Ozone GeneratorOperation principle content is available for reference.

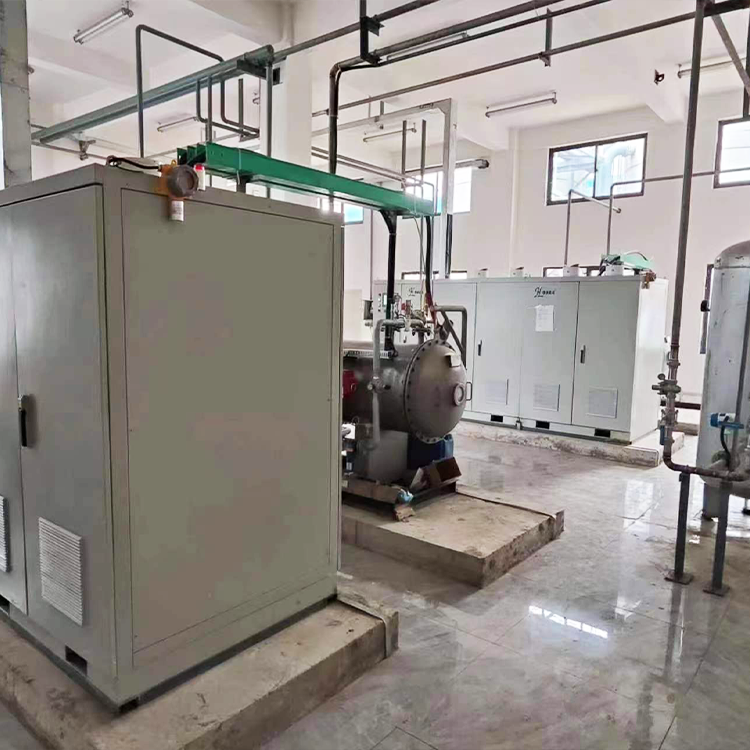

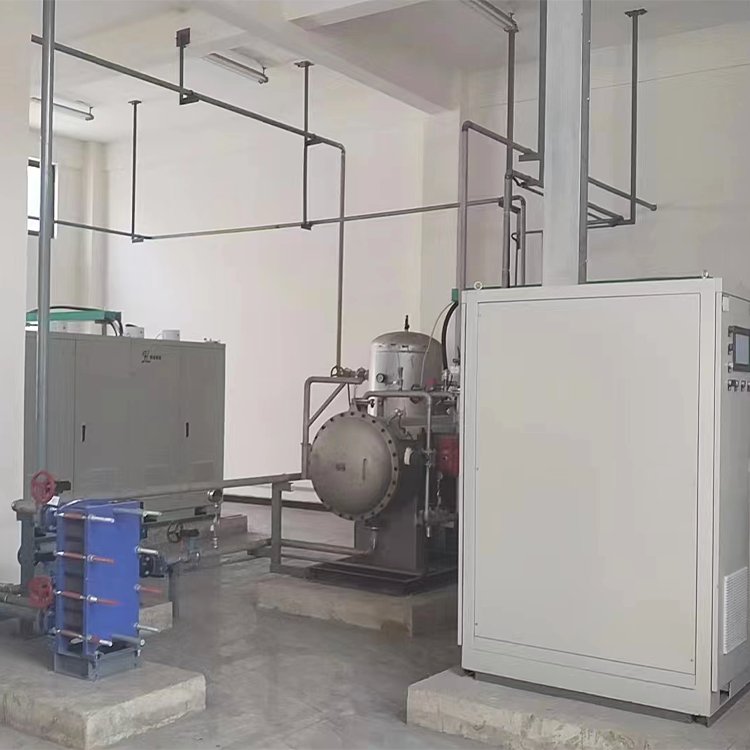

Our large-scale ozone generator system is composed of a gas source treatment system, an ozone discharge chamber, a cooling water system, a specialized ozone medium-frequency high-voltage power supply, and a control system.
Ozone Discharge Chamber
This section is for installing the ozone generator unit. The ozone generator unit is a basic component for ozone production, including electrodes and medium tubes.
(2) Electrode
It is the conductive part that forms a conductive interface with media of different electrical conductivities, in the ozone generation unit, it refers to the distribution of a high-voltage electrical field.
Body.
(3) Medium Tube
Medium tubes are components made of materials that polarize under the influence of an electric field, exhibiting basic electromagnetic field properties. In the ozone generation unit, they refer to insulators located between the two electrodes, responsible for producing a stable glow discharge.
(4) Power Supply
Power section consists of a frequency-adjustable inverter controller that can modify frequency during discharge and a boost converter that generates the required high voltage during discharge.TransformerComposed of.
(5) The large ozone generators produced by Shandong Hualin Ozone Generator Manufacturer are water-cooled. They effectively remove the heat released during corona discharge with an adequate supply of cooling water that meets quality standards. The cooling water can be recycled and further cooled through external processes. The generator's output can be adjusted according to the user's actual needs and is equipped with multiple protection functions to prevent damage in case of accidents.
