Helical corrugated steel pipes are continuously formed circular tubes made by rolling galvanized steel strips into a specific wave pattern, bending them into a spiral shape, and allowing the edges to interlock. Invented in the United States in 1896, they have been in use for over a century and are an ideal substitute for concrete pipes and reinforced concrete structures.

Features of Spiral Woven Steel Pipe

High compressive strength: 1.5 to 5 times that of the same diameter concrete pipe

Lightweight and easy to transport: 1/5 to 1/10 the weight of the same diameter concrete pipe

Construction Fast: Pipe sections (adjustable from 1 to 12 meters), Clamp fast connection

Helix corrugated steel pipe applications

Waste Water Management: Domestic water discharge, industrial wastewater discharge, road culvert drainage

Passage aspects: road-rail animal passage, vehicle passage, small open tunnel, shelter passage

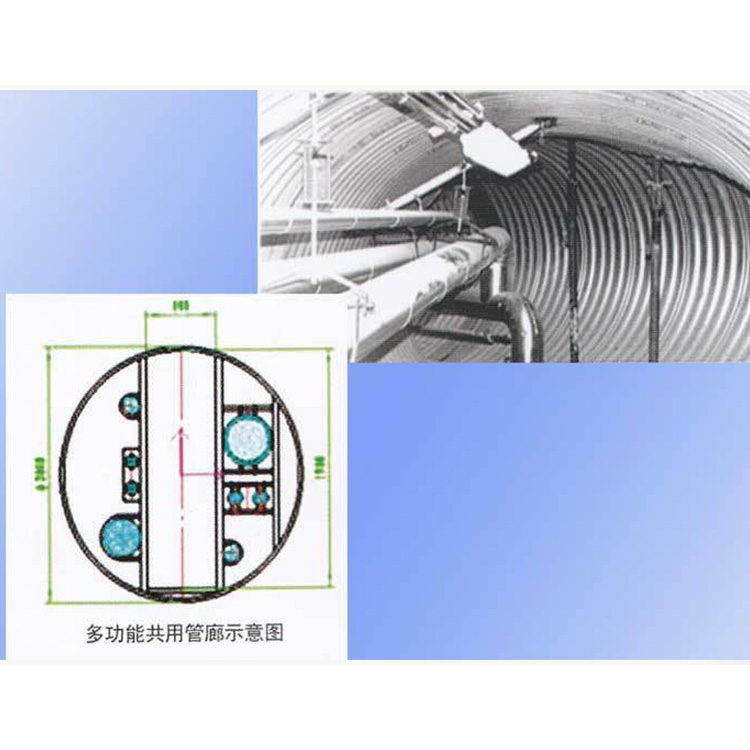

Protection: Underground communication cables, pipeline protection for gas networks, urban utility tunnels

Industrial: Coal mine ventilation pipes, mine shafts, pile foundation casings, industrial chimneys

Agriculture: farm well casing, canal irrigation, siphon pipe, grain storage facility

Technical Parameters of Spiral Wavy Steel Pipe

1. Sheet Material: JS-SGHC Galvanized Steel Sheet or SS400 or Q235 Hot Rolled Steel Sheet

2. Plate Thickness: 1.2 ~ 4.2mm

3. Channel cross-sectional shapes: circular, elliptical, horseshoe, scoop-shaped, etc.

4. Import and Export Forms: Orthogonal, Oblique, Straight mouth, Oblique mouth, etc.

5. Soil Filling Height: 0.3~70m 6. Diameter Range: 200~3600mm

7. Pipe Section Connection Type: Clamp connection.

8. Waveform Parameters: Wave Distance x Wave Depth mm <Type: 75x25>

9. Corrosion Treatment: Hot-Dip Galvanized Thickness 600g/m² (Both Sides)
