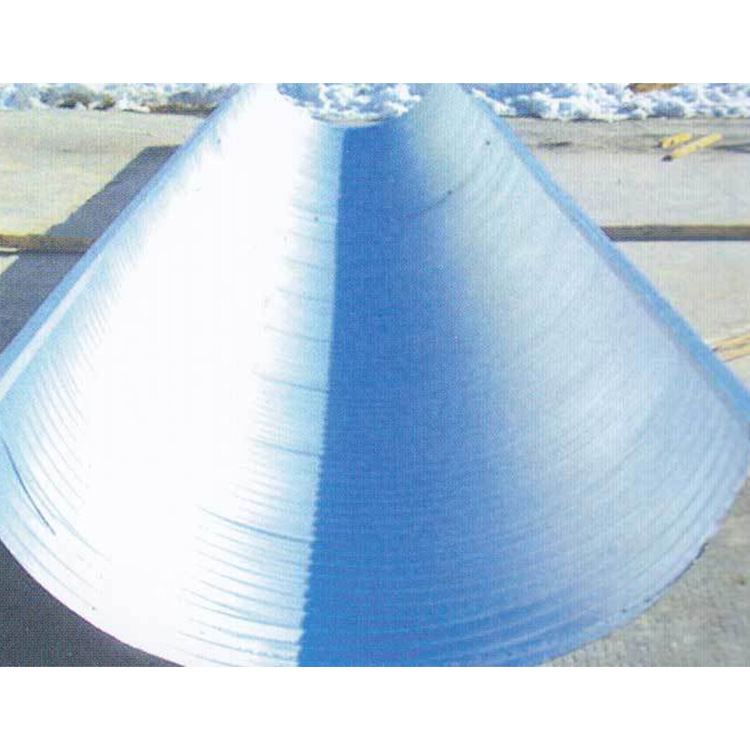

Helical corrugated steel pipes are continuously circular tubes formed by rolling galvanized steel strips into a specific wave pattern, bending them into a spiral shape, and allowing the edges to interlock. Invented in the United States in 1896, they have been in use for over a century and serve as an ideal substitute for concrete pipes and reinforced concrete structures.

Helical corrugated steel pipe features

High compressive strength: 1.5 to 5 times that of the same diameter cement pipe.

Lightweight and easy to transport: up to 1/5 to 1/10 the weight of the same diameter concrete pipe

Construction Fast: Pipe sections (adjustable from 1 to 12 meters), Clamp fast connection

Helix corrugated steel pipe applications

Drainage: Domestic water discharge, industrial wastewater discharge, road culvert drainage

Passageways: Highway and railway passages for humans and animals, vehicle passages, small open tunnels, and sheltered passages

Protection: Underground communication cables, pipeline protection for gas networks, urban utility tunnels

Industrial: Coal mine ventilation pipes, coal mine shafts, pile foundation shells, industrial chimneys

Agriculture: Field well wall pipes, canal irrigation, siphon pipes, grain storage warehouses

Technical Specifications of Spiral Woven Steel Pipe

1. Sheet Material: JS-SGHC galvanized steel sheet or SS400 or Q235 hot-rolled steel sheet

2. Steel Plate Thickness: 1.2 ~ 4.2mm

3. Channel Cross-Section Shapes: Round, Elliptical, Horsehoe, Scoop-shaped, etc.

4. Import/Export Forms: Orthogonal, Oblique, Straight, Slanting, etc.

5. Soil Filling Height: 0.3~70m 6. Diameter Range: 200~3600mm

7. Tube Joint Type: Clamp connection.

8. Waveform Parameters: Wave Distance x Wave Depth mm <Type: 75x25>

9. Corrosion Treatment: Hot-Dip Galvanized Thickness 600g/m² (Both Sides)
