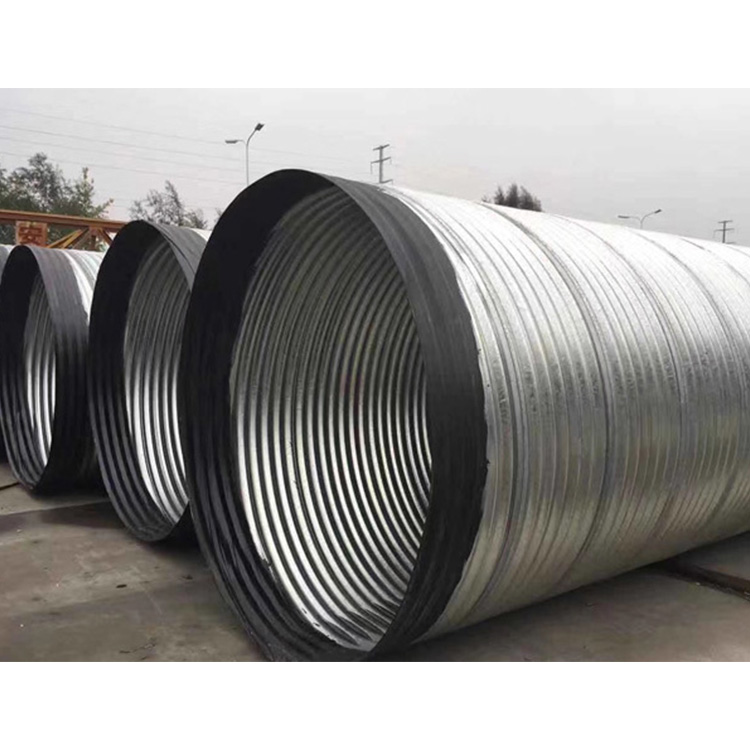

Helix corrugated steel pipes are continuous circular tubes formed by rolling galvanized steel strips into a specific wave pattern, bending them into a helix, and causing the edges to interlock. Invented in the United States in 1896, they have been in use for over a century and are an ideal substitute for concrete pipes and reinforced concrete structures.

Helical corrugated steel pipe features

High compressive strength: 1.5~5 times that of the same diameter concrete pipe

Lightweight and easy to transport: 1/5 to 1/10 the weight of the same diameter cement pipe

Construction Fast: Pipe sections (adjustable from 1 to 12 meters), clamp fast connection

Helix corrugated steel pipe applications

Waste Water Management: Domestic water discharge, industrial wastewater discharge, road culvert drainage

Passageways: Road and rail animal crossings, vehicle passages, small cut-and-cover tunnels, and sheltered passages

Protection: Underground communication cables, pipeline protection for gas networks, urban common utility tunnels

Industrial: Coal mine ventilation pipes, coal mine shafts, pile foundation shells, industrial chimneys

Agriculture: Field well wall pipes, canal irrigation, siphon pipes, grain silos

Technical Specifications of Spiral Woven Steel Pipe

1. Sheet Material: JS-SGHC galvanized steel sheet or SS400 or Q235 hot-rolled steel sheet

2. Steel Plate Thickness: 1.2 ~ 4.2mm

3. Channel cross-sectional shapes: round, oval, horseshoe, shovel, etc.

4. Import/Export Forms: Orthogonal, Oblique, Straight mouth, Slant mouth, etc.

5. Soil Filling Height: 0.3~70m 6. Diameter Range: 200~3600mm

7. Pipe Section Connection Type: Clamp connection.

8. Waveform Parameters: Wavelength x Wave Depth mm <Type: >75x25< >

9. Corrosion Treatment: Hot-Dip Galvanized Thickness 600g/m² (Both Sides)
