I. Description

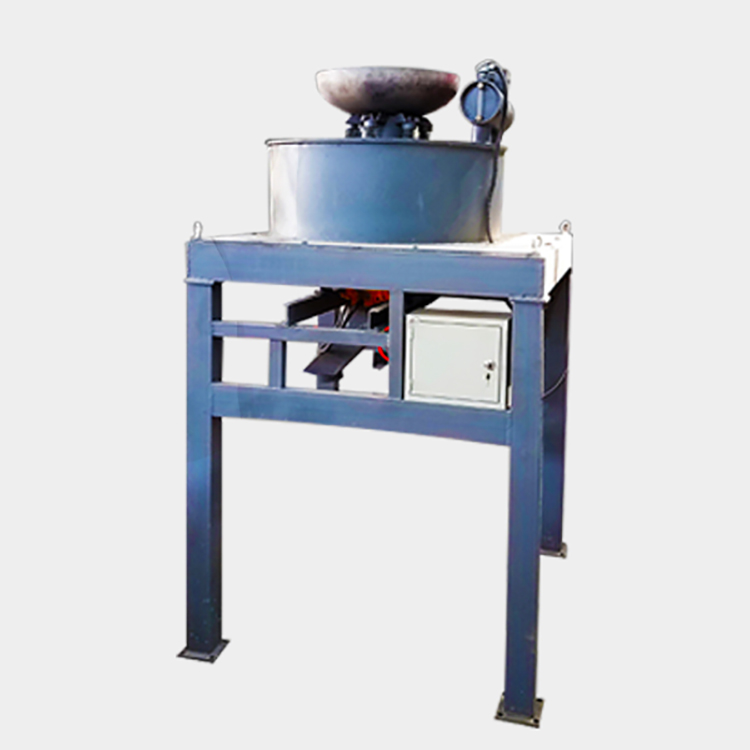

The CGB type semi-automatic rotating magnetic separator is mainly used for separating ferromagnetic impurities from materials that are prone to caking or sticking. The rotating magnetic rod driven by the motor prevents material blockage, ensuring that the product can fully contact the magnet during the flow process.

Installation Method: Free-fall. Pipeline series for conveying materials, single machine for loose bulk materials.

Application Industries: Food Industry, Chemical Industry, Plastic Industry, Wood Industry, Recycling Industry, Packaging

Industry, iron removal for quartz sand, potassium feldspar, mica, micro-fine powder, fly ash, and all fine powders from 10-500 mesh for iron removal.

Its strong magnetic force can remove flowing, dry, good-flowing, powdery, fine particles (particle diameter)

Iron-magnetic material in thin sheet-like material with a thickness of <6mm.

Standard Bore Size (mm): 150, 200, 250, 300, 350, 400, 450, 500. Sizes available upon customer request.

Custom orders on-site only.

Manual iron removal.
