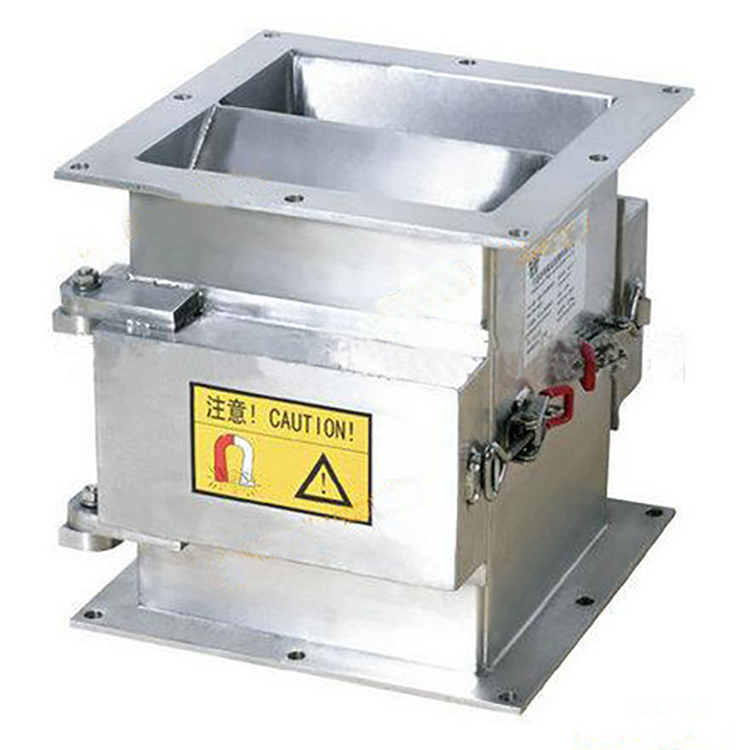

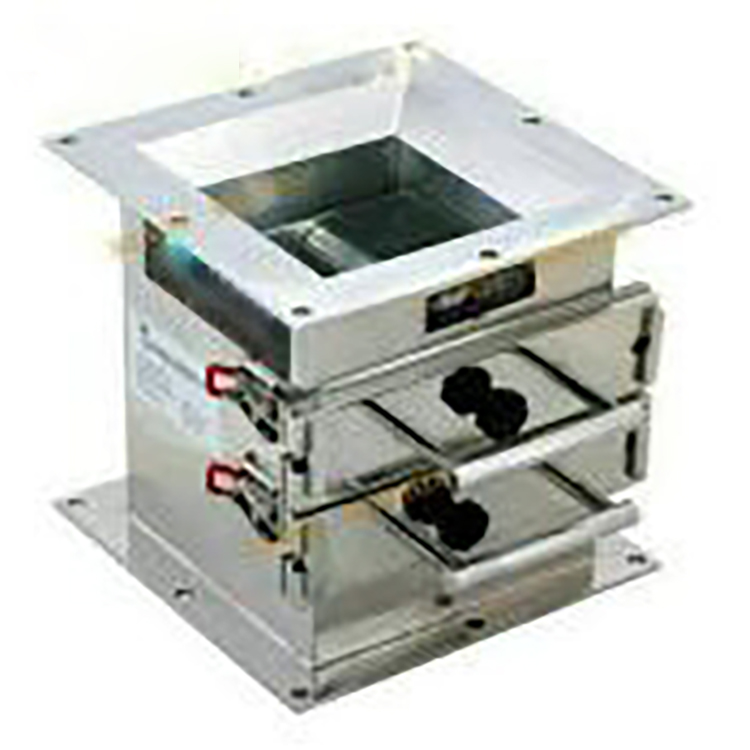

Magnetic Rod Mount
Main Specifications: Standard/ Easy-to-Clean, Round/Square
Magnetic rods/frames are widely used in various production lines for filtering out ferromagnetic impurities from materials. They can be designed and manufactured in different diameters, lengths, and operating temperatures, in either round or square shapes.
Internally, it utilizes strong magnetic materials with a surface magnetic field exceeding 12,000 GS, and the standard specification for the magnetic rod is Φ 25 mm. Externally, it is made of seamless stainless steel tube, featuring a smooth surface without internal leakage or sand holes, and is polished to a bright finish, meeting food hygiene standards. The ends or one side of the magnetic rod can be designed with a pointed tip, threaded holes (M6, M8, M10, M12, etc.), screw threads, or a lifting ring for easy installation and fixation. The temperature resistance range of the magnetic rod is from room temperature to the maximum working temperature of 350°C. Due to the material's inherent sensitivity to temperature, it is recommended that customers confirm the working temperature when ordering the product. Custom orders are available, and we can design square or round magnetic frames with baffle plates or guide rods.
