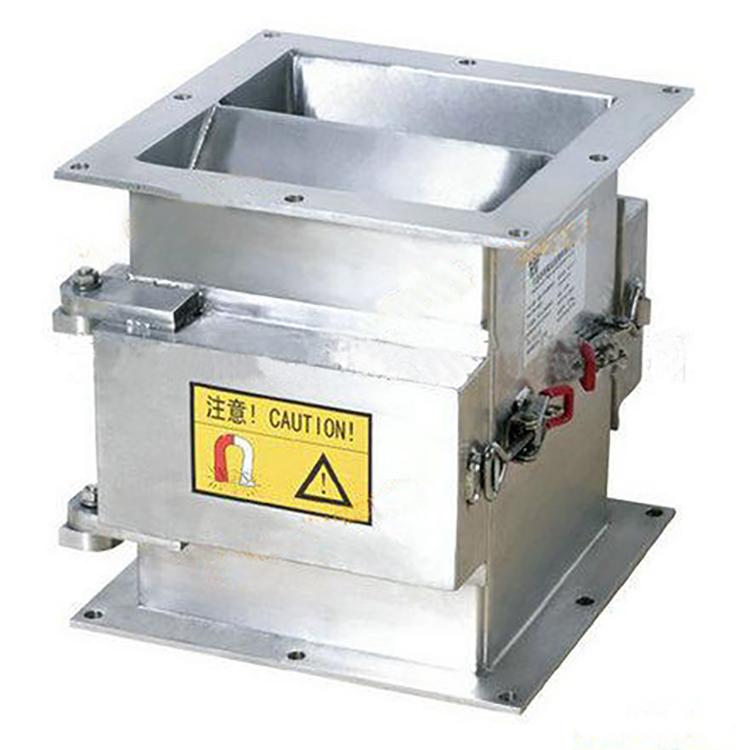

Drawer-type Iron Remover
Main Specifications: Standard/Highly Cleanable, Square/Round Interface, Single/Multi-Layer
Drawer type Iron Separator/Iron Grating Separator is suitable for filtering and removing ferromagnetic impurities from flowable powders and granular materials, enhancing product quality, ensuring safe production, and maintaining equipment operation.

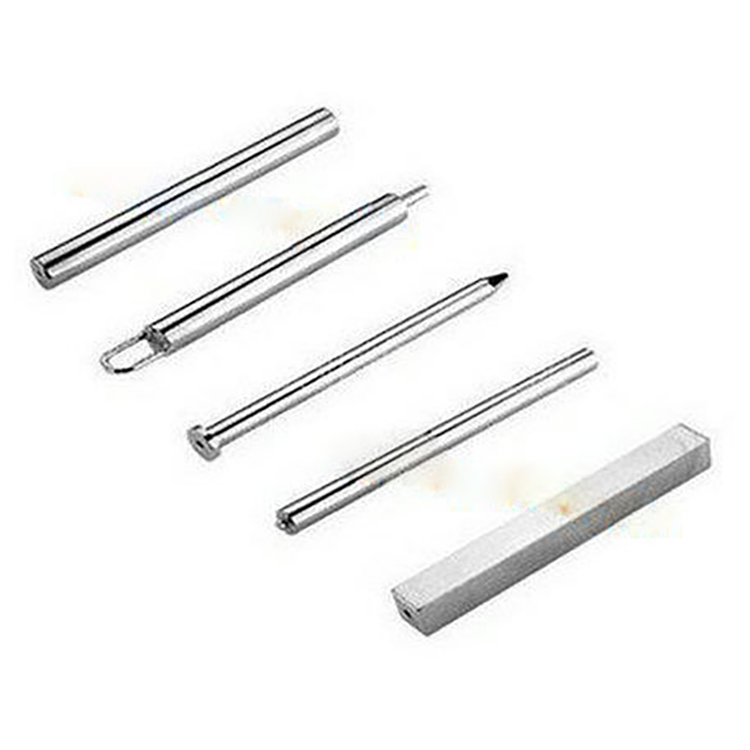

Internally, it features strong permanent magnet materials with a surface magnetic field of over 12,000 GS, and the standard magnet rod size is Φ 25 mm. The exterior is made of 304/316 stainless steel. It comes with square and round interfaces (the standard square interface is 200×200 ~ 400×400 mm, and the round interface is DN150/200/250/300 mm). The interfaces can be in the form of flanges, quick connectors, etc., for easy installation. Customization according to customer requirements is available, with scientifically and rationally designed structures to effectively maintain the magnetic field strength and enhance iron removal efficiency.
