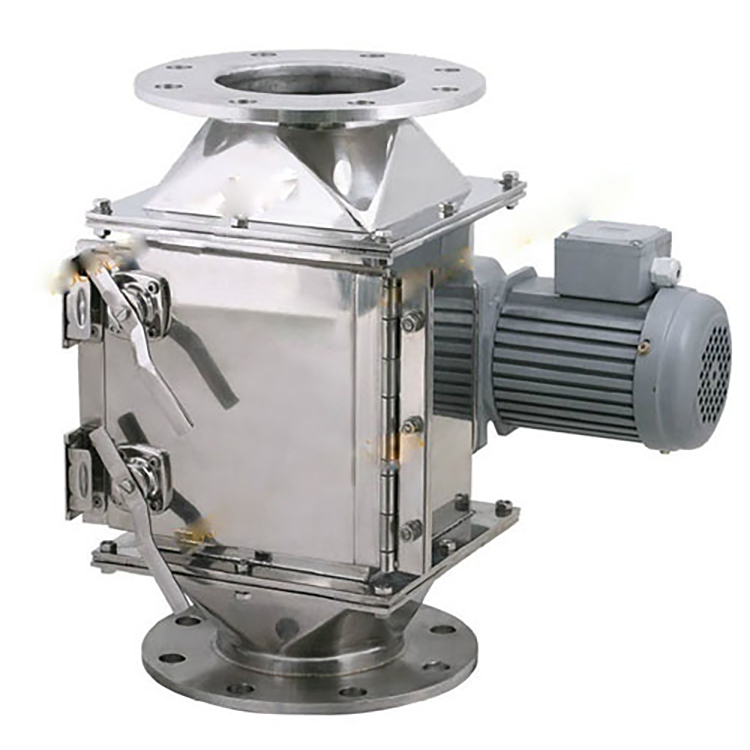

Electric Drum Magnetic Separator with Self-Dumping Function
Main Specifications: Dump Truck
The electric semi-magnetic drum-type iron separator is suitable for filtering and removing ferromagnetic impurities from powdery, granular, and thin-film materials. It especially enables rapid and automated sorting and purification of large quantities of materials, enhancing product quality, ensuring safe production, and maintaining equipment operation.
The core inside the equipment is divided into two halves, magnetized and non-magnetized, vertically; the exterior is a stainless steel drum, driven by an electric motor to rotate; when the drum enters the non-magnetized area of the core, the iron impurities adhered to it will automatically fall into the sorting outlet, eliminating the need for manual cleaning in the iron removal process. The drum's speed can be adjusted via a variable speed drive, and its inclination angle can also be modified; the drum's surface magnetic field is approximately 5000 GS, with the core having a standard diameter of Φ 400 mm. The scientifically and reasonably designed magnetic force ensures efficient operation and facilitates connection with the processing system.
