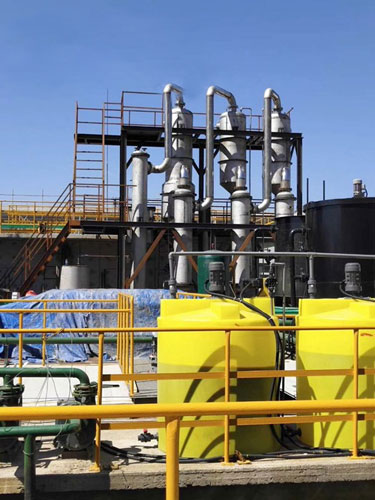

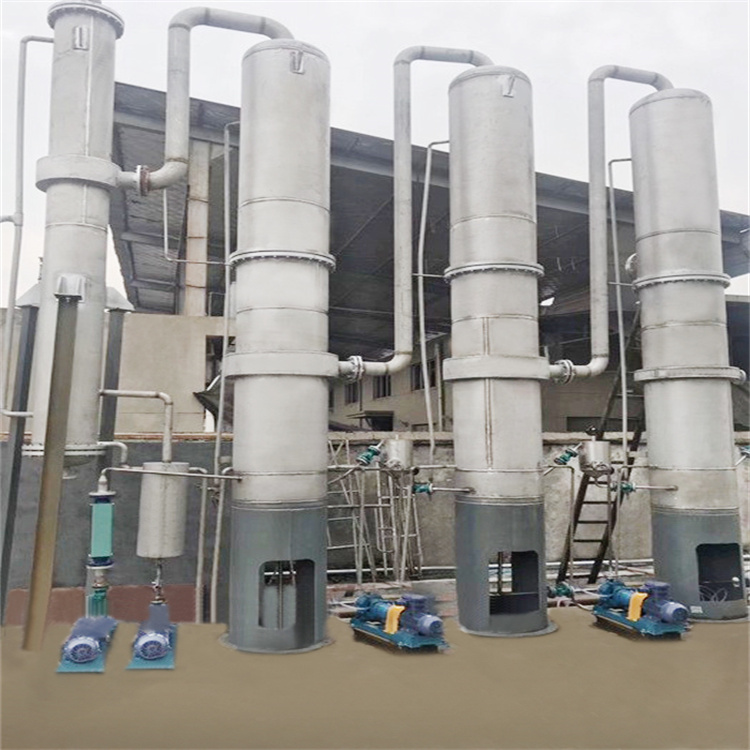

Triple-effect evaporator

New three-effect evaporator (concentration) is suitable for the concentration of glutamic acid, citric acid, amino acid fermentation, xylose, food, and chemical industry liquid. It features low steam consumption, low evaporation temperature, high concentration ratio, high yield, and short concentration time.
【WZ111 Series 500-5000 Triple Efficiency Energy-Saving External Circulation Vacuum Concentrator/Evaporator (Capable of Recycling Alcohol）】
The Triple-effect Evaporator is suitable for concentrating solutions of traditional Chinese medicine, Western medicine, starch, monosodium glutamate, dairy products, chemicals, etc., particularly for low-temperature vacuum concentration of heat-sensitive materials. Users can select the appropriate series of concentrators from the technical specifications according to their actual needs.
The three-effect evaporator utilizes an external heating natural circulation system and vacuum evaporation method, offering fast evaporation speed, high concentration ratio up to 1.2-1.3.
The three-effect evaporator employs simultaneous triple-effect evaporation, with the secondary steam subjected to repeated action, thus saving on boiler investment and reducing energy consumption.
Multi-functional operation features:
(1) Recyclable alcohol content of approximately 80%.
(2) The first, second, and third effects can be repeatedly boiled together to extract the paste.
(3) Feeds intermittently continuously.

Technical Specifications
