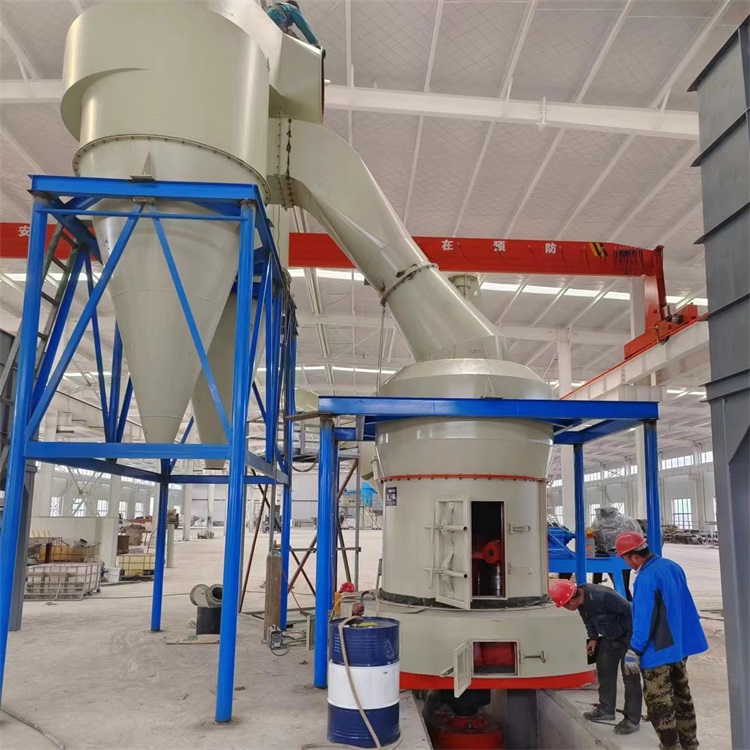

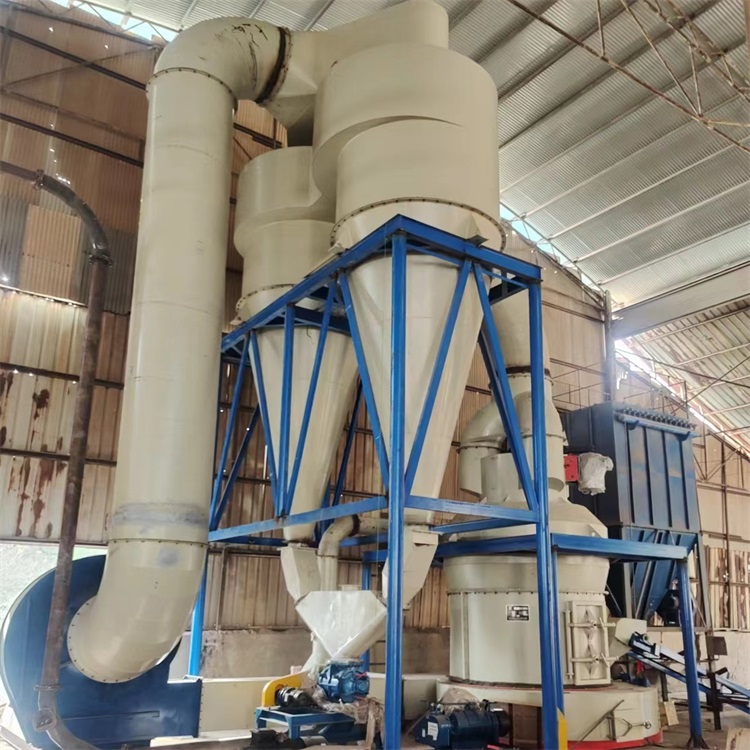

The Raymond mill is a low-cost, ultra-large-scale powder grinding equipment developed by our company based on the increasing demand for larger size, lower cost, and higher efficiency from users over the past few years. By absorbing the advantages of the domestic and international powder grinding industries and combining our company's production experience of over a decade, it has been developed through numerous research and experiments. Its introduction has filled the gap in the domestic large-scale powder grinding equipment market. Taking the TSDM2100 model as an example, processing the same material with the same fineness, it consumes only 4/5 of the energy and requires a 5/6 investment ratio for equipment, a 1/3 infrastructure ratio, and a 1/3 labor ratio, significantly reducing both the initial investment and the subsequent production costs, thereby earning widespread recognition from users both domestically and internationally.
Features:
1. Large production capacity
For example, the TS2100 model produces high yields when manufacturing the same material and fineness.
2. Investment Savings
Infrastructure and building construction are equivalent to an investment in one 5R4119, significantly reducing the initial investment.
3. Long maintenance and service cycle
Due to the adoption of a fully enclosed lubrication system in the roller mill, the lubrication has been switched from grease to gear oil. This significantly improves the working environment for the bearings, effectively extending their service life, and ensures no oil leakage. Consequently, the frequency of oil top-ups has been reduced from every 3-5 days to once a month, without increasing operational costs. Additionally, it greatly reduces the labor intensity for the operators and enhances the equipment's utilization rate.
4. Smooth transmission with long service life
The drive unit has been upgraded from passive lubrication to forced lubrication, ensuring that the bearings are not damaged due to oil shortage or temperature changes, thereby extending the overall service life of the drive unit.
5. High Reliability
Wear parts such as grinding rolls and rings now use high-chromium material instead of the previous high-manganese steel. This extends their service life by 3-5 times, enhancing equipment reliability and reducing operational costs. Additionally, with less wear, the metal content in the powder is reduced, effectively improving the quality of the finished product.
6. Low labor requirement
Unit output is one-third of the labor required for the standard R-type mill.
7. More environmentally friendly, pollution-free
Equipped with a pulse-jet dust collector, the equipment itself is pollution-free, and the entire processing area can also be dust-free.
