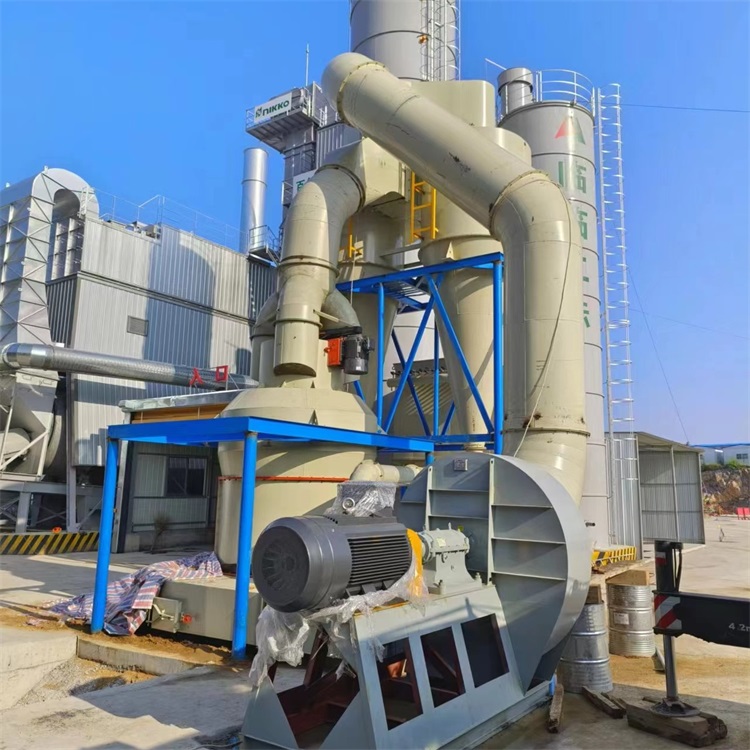

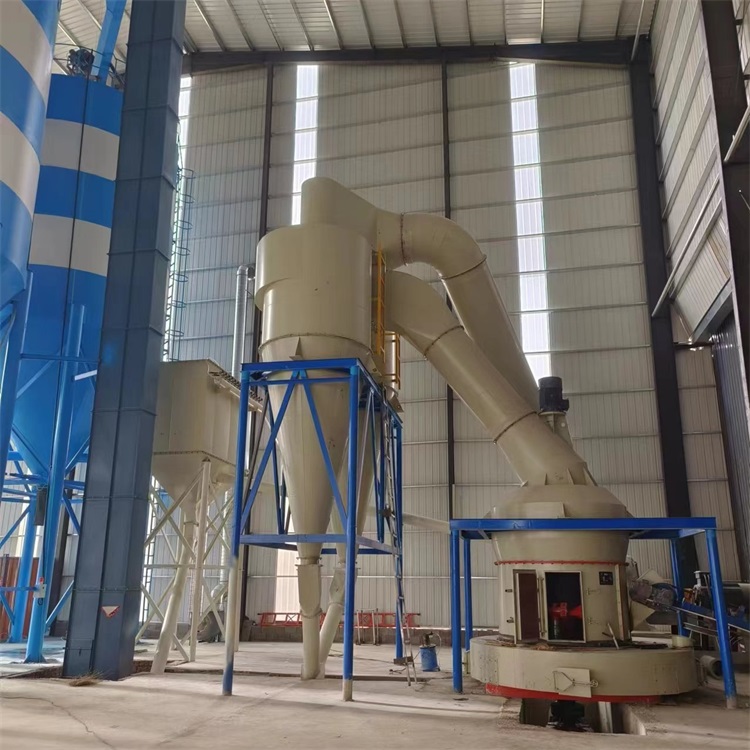

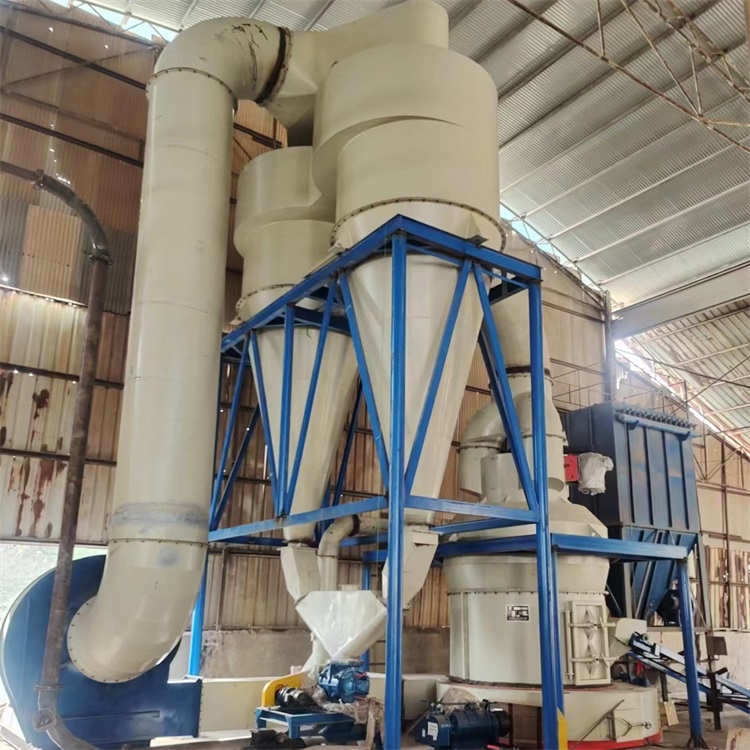

The Raymond mill is a new, cost-effective ultra-large-scale powder grinding equipment developed by our company in recent years, in response to the growing demand for larger, lower-cost, and high-efficiency products from our customers. By absorbing the best practices from the domestic and international grinding industry and combining our company's more than a decade of production experience, we have conducted numerous research and experiments to create this innovative, low-cost solution. Its introduction has filled a gap in the domestic market for large-scale grinding equipment. Taking the TSDM2100 model as an example, processing the same material with the same fineness, it consumes only 4/5 of the energy and requires a 5/6 investment ratio, 1/3 of infrastructure, and 1/3 of labor, significantly reducing both initial investment costs and subsequent production costs, earning widespread approval from users both domestically and internationally.
Features:
1. Large production capacity
For example, with the TS2100 model, producing the same material and fineness yields high output.
2. Investment savings
Infrastructure and construction of houses are equivalent to an investment in 1 unit of 5R4119, significantly reducing initial investment costs.
3. Long maintenance and service cycles
Due to the adoption of a fully enclosed lubrication system in the roller mill unit, the lubrication component has been changed from lubricating oil to gear oil. This significantly improves the working environment of the bearings, effectively extending their service life, and ensures no oil leakage, thus changing the original requirement of refueling every 3-5 days to refueling once a month. This does not increase the operational costs and greatly reduces the labor intensity for the operators, enhancing the equipment's utilization rate.
4. The transmission unit operates smoothly with a long service life.
The drive unit has been upgraded from passive lubrication to forced lubrication, thereby preventing damage to the bearings due to lack of oil or temperature variations, extending the overall lifespan of the drive unit.
5. High reliability
Replaceable wearing parts like grinding rolls and rings are now made from high-chromium material instead of the previous high-manganese steel. This extends their service life by 3-5 times, enhancing equipment reliability and reducing operating costs. Moreover, with less wear, the metal content in the powder is reduced, effectively improving the quality of the finished product.
6. Low labor requirement
Unit output is 1/3 of the labor required for the standard R-type mill.
7. More environmentally friendly, pollution-free
Equipped with a pulse dust collector, the equipment is pollution-free, and the entire processing area can be dust-free as well.
