TYPE:D1SE83BNJW

Weight: 1.5 kg

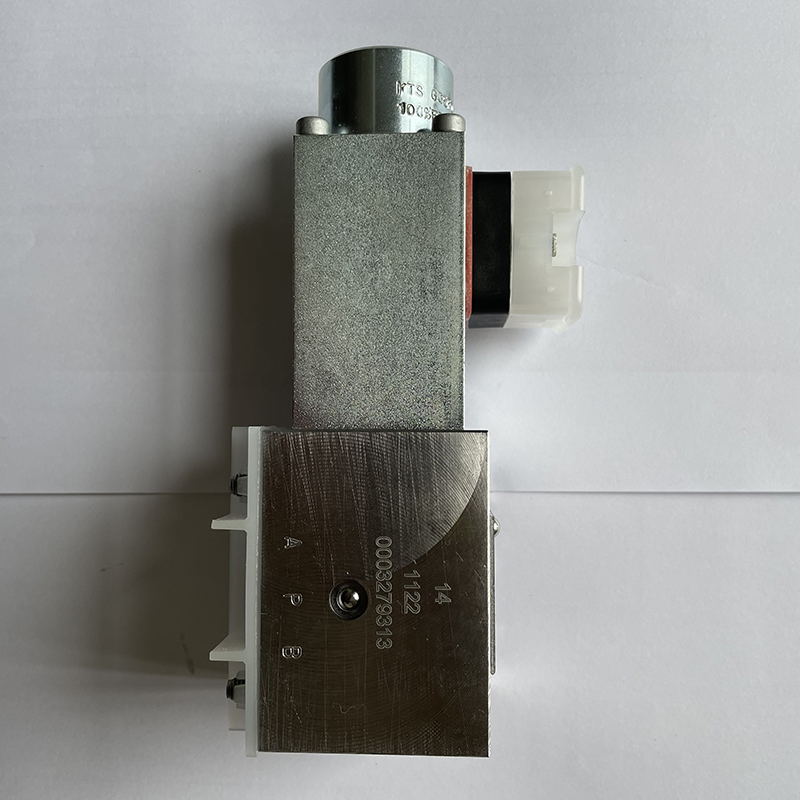

3 / 2 way positioning control valve - series d1se | d1se30bnjw

The proven d1se size ng06 seat type directional control valve series has almost no leakage and can be used in a variety of hydraulic applications.

Technical specifications:

Sealing material: NBR

Spool Code: 30

Input voltage (DC): 24

Size: ng06 / cetop 03 NOM

Operation type: direct acting

Flow rate: 20 L / min

Connection type: electrical connector according to en 175301-803

Installation type: base plate installation

Starting type: electromagnet
