Linux Intelligent System:

Linux+Qualcomm MDM9628 Cortex-A7 Intelligent system platform, offering limitless expansion of computational and product functions. High precision, low power consumption.GNSS Module，The main unit integrates a high-precision, low-power positioning module, supporting BDS B1I/B2a， GPS L1/L5，GLonASS L1，Galileo E1/E5a，SBAS L1， QZSS L1/L5Multi-star solution, supportsSBAS。

4G Worldwide compatibility：

Based on Linux The platform's4G All-network compatible solution, supports mobile/Connect/Telecommunications2/3/4G Internet, better compatibility, stronger signal, and more stable connections.

High-precision sensor：

The main unit is equipped with a high-precision three-axis accelerometer and barometer, combined with a newly designed fusion Algorithmic engine, effectively filters false positives, supports long-term and medium-term early warnings.

Cloud Service Features：

The host can regularly report the device's location, network status, signal strength, and satellite reception status, and supports cloud platform operations such as remote device restart, configuration, and updates.

Combination Antenna：

Advanced Quad-Band AntennaGNSS、WiFiBluetooth4G Integrated, compact, and with improved signal quality.

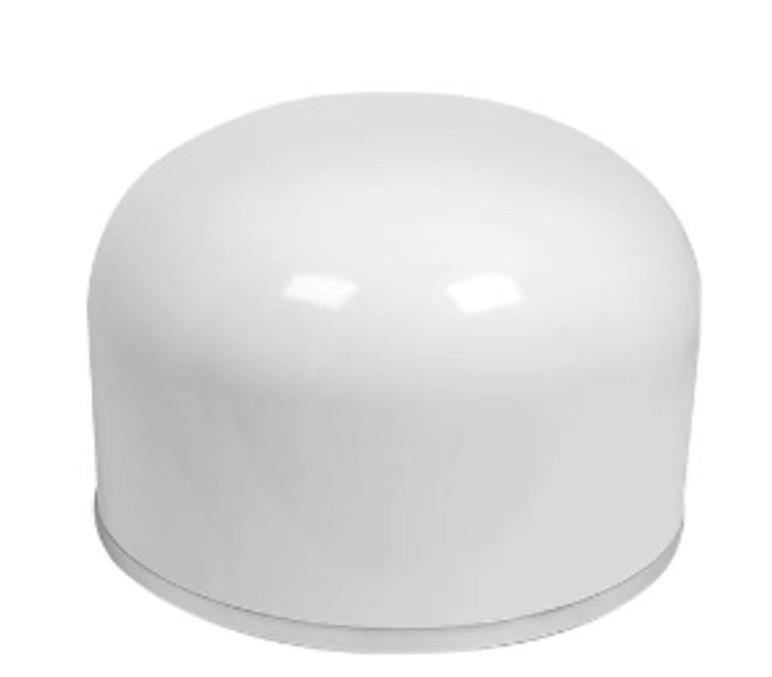

WSGNSS05 A self-developed and designed general-purpose system for geological disaster monitoring and early warning.GNSS Receiver, featuring an integrated high-precision low-power positioning module, is designed for easy installation and maintenance. Its ultra-low power consumption design reduces the requirement for battery capacity and solar panel power in the system configuration, lowering the costs of site construction and operation.

Application Direction:

Displacement monitoring, primarily used in dam safety supervision, geological disasters, landslides, and slope displacement.
