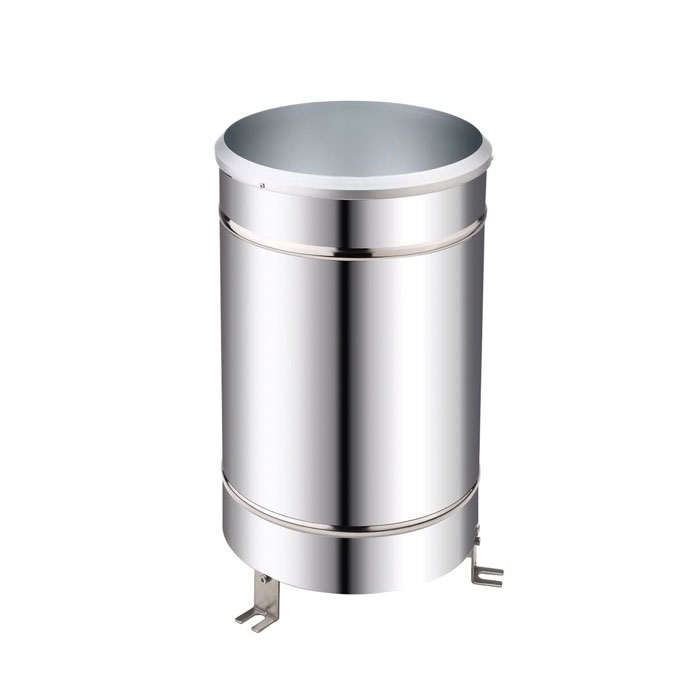

JD-05B/10B Type Bucket Rain Gauge

1. Product Overview

This instrument is a single measurement gauge for precipitation, and its performance meets national standards.GB/T 11832-2002 requirements for Bucket Type Rain Gauges.

This instrument is compatible withJBD-1, JBD-2 Rainfall Alarm Sensors, Telemetry Terminals, and other equipment are compatible and widely used for remote sensing of water and rainfall conditions, heavy rainfall, mountain floods, and mudslide alarms.

This equipment is factory-set with the bucket tilt angle adjusted and locked at the optimal tilt position. Simply follow the instructions in this manual to install the bucket and level the base, and the equipment is ready for use. Do not adjust the bucket tilt adjustment screw on-site.

2. Technical Specifications

2.1 Rainwater Inlet Size: ΦInner Diameter of Rain Gutter: 200±0.6mmRazor-sharp edge angle:40o～45o

2.2 DistinguishPower:0.5mm；1mm；

2.3 Rainfall Intensity Range: 0.01mm to 4mm/min (permits rainfall intensity up to 8mm/min)

2.4 Measurement Accuracy: ≤±3%

2.5 Communication Method: Dual Reed Relay Signal Output

2.6 Working Environment: Ambient Temperature: -10℃ to 50℃; Relative Humidity: <95% (at 40℃)

2.7 Size: φ216mm x 350mm.
