Product Description

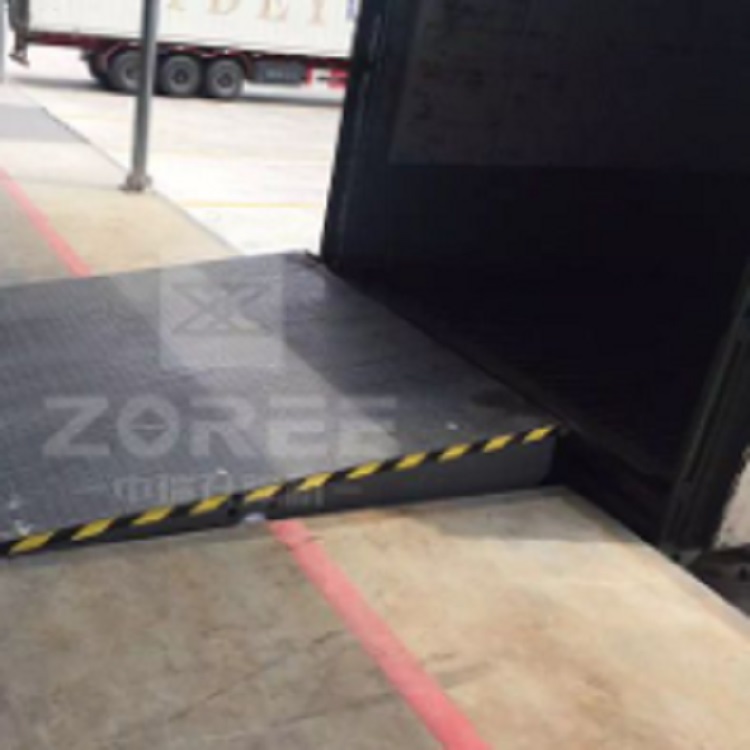

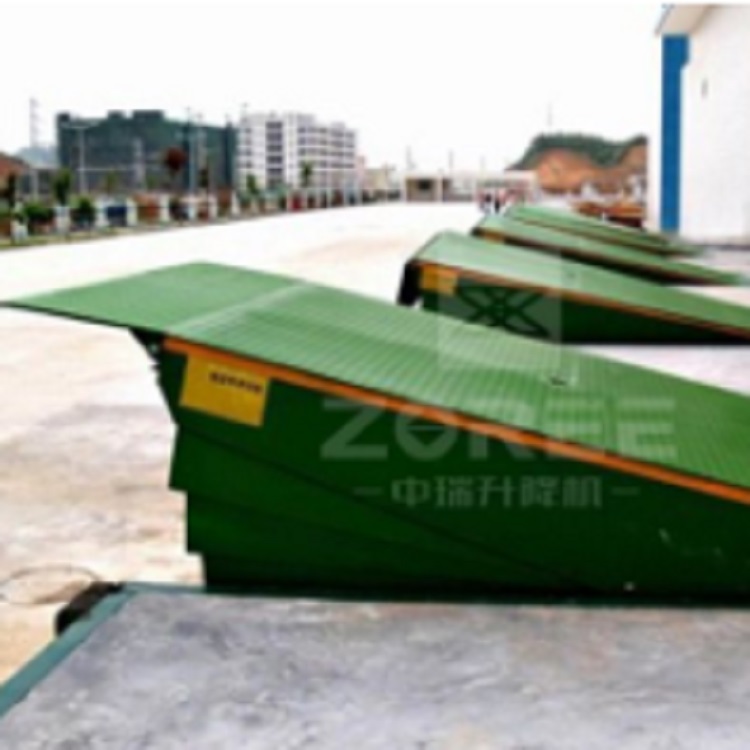

Fixed boarding bridge is an auxiliary equipment installed on the warehouse platform to cooperate with truck loading and unloading. The movable flap set at the front end of the boarding bridge can be adjusted in height according to the height of the truck compartment, always maintaining a tight overlap with the compartment.

1. Innovative design concepts make products more user-friendly;
2. Integrated power hydraulic pump station, with more stable performance;
3. Using high-quality sealing components to ensure the sealing performance of the hydraulic system;
4. The countertop is made of patterned steel plate, which has good anti slip performance;
5. Install safety protection skirts on both sides of the equipment to ensure safe use;
6. Equipped with safety crash cushions to ensure parking safety.
7. Set up safety support poles to ensure the safety of maintenance and repair personnel.
8. Compact structure, lightweight appearance, easy operation, and easy maintenance.
9. It can be customized according to actual usage requirements to meet personalized needs.

Excavation Civil Engineering Description:

(1) The bottom of the foundation pit should be horizontal, the pit wall should be perpendicular to the bottom, and the diagonals should be equal.
(2) The size error of each pit should be ≤ 10mm.
(3) The thickness of concrete pouring for the pit wall and bottom should be ≥ 200mm.
(4) Two pre embedded pipes with an inner diameter of Φ 50 are introduced into the foundation pit through control buttons and power sources.
(5) The two sides of the front end of the foundation pit should be sturdy and flat for installing rubber anti-collision blocks.

Product Parameters

Note: 1. As the product is continuously upgraded and optimized, the parameters may be slightly adjusted. The actual price quoted by the manufacturer at the time of ordering shall prevail.
2. Non standard customization can be carried out according to customer requirements.
