| Single fork | SJG0.3-0.74 | 300 | 120 | 740 | 860 | 1500*1500 | 25 | 400 | AC-380 |
| SJG0.5-0.5 | 500 | 200 | 500 | 700 | 1050*800 | 10 | 420 | AC-380 | |
| SJG1-0.8 | 1000 | 250 | 800 | 1050 | 1200*900 | 28 | 450 | AC-380 | |
| SJG1-1 | 1000 | 240 | 1000 | 1240 | 1500*1500 | 22 | 650 | AC-380 | |
| SJG1.5-1 | 1000 | 210 | 1000 | 1210 | 1600*780 | 24 | 520 | AC-380 | |
| SJG2-1 | 2000 | 240 | 1000 | 1240 | 2000*1500 | 40 | 950 | AC-380 | |
| SJG2-1.22 | 2000 | 230 | 1220 | 1450 | 1800*780 | 43 | 730 | AC-380 | |
| SJG2-1.6 | 2000 | 240 | 1600 | 1840 | 2400*1800 | 30 | 1250 | AC-380 | |
| SJG3-1 | 3000 | 340 | 1000 | 1340 | 2500*1200 | 20 | 1250 | AC-380 | |
| SJG4-1.2 | 4000 | 400 | 1200 | 1600 | 1900*1280 | 40 | 1220 | AC-380 | |
| SJG5-1.4 | 5000 | 475 | 1400 | 1875 | 2500*2500 | 30 | 2300 | AC-380 | |
| SJG7-1.2 | 7000 | 862 | 1200 | 2062 | 4000*3200 | 60 | 3500 | AC-380 | |
| SJG8-1.6 | 8000 | 480 | 1600 | 2080 | 2600*1400 | 78 | 2300 | AC-380 | |
| SJG10-1.5 | 10000 | 580 | 1500 | 2080 | 3000*1500 | 92 | 3800 | AC-380 | |
| SJG10-4.8 | 10000 | 1200 | 4800 | 6000 | 9000*7000 | 77 | 18500 | AC-380 | |
| SJG16-1.8 | 16000 | 750 | 1800 | 2550 | 3200*2120 | 65 | 4500 | AC-380 | |
| SJG20-1.8 | 20000 | 580 | 1800 | 2380 | 3020*1800 | 65 | 4550 | AC-380 | |
| SJG30-2 | 30000 | 1430 | 2000 | 3430 | 7000*2220 | 40 | 14300 | AC-380 | |
| bifurcation | SJG0.5-1 | 500 | 320 | 1000 | 1320 | 1000*700 | 23 | 500 | AC-380 |
| SJG0.5-1.2 | 500 | 300 | 1000 | 1300 | 1000*1000 | 16 | 560 | AC-380 | |
| SJG0.9-1 | 900 | 300 | 1000 | 1300 | 1200*700 | 33 | 480 | AC-380 | |
| SJG1-2.5 | 1000 | 440 | 2500 | 2940 | 2000*1000 | 40 | 1000 | AC-380 | |
| SJG1.5-2.5 | 1500 | 500 | 2500 | 3000 | 1900*1500 | 50 | 1300 | AC-380 | |
| SJG2-6.9 | 2000 | 750 | 6900 | 7650 | 5500*2500 | 53 | 5850 | AC-380 | |
| SJG3-2.5 | 3000 | 600 | 2500 | 3100 | 3200*2200 | 54 | 2750 | AC-380 | |
| SJG3-5 | 3000 | 690 | 5000 | 5690 | 4000*2000 | 70 | 4600 | AC-380 | |
| SJG5-1.7 | 5000 | 500 | 1700 | 2200 | 1800*800 | 39 | 1520 | AC-380 | |
| SJG8-7 | |||||||||
| Note: The above models are for reference only and can be customized according to customer requirements. |
fixed typelifting platformIt is a cargo lifting device with stable performance, compact structure, and easy operation. Widely applicable to the transportation of goods between production lines with certain height differences, component assembly, and material loading and unloading operations. According to the different environmental requirements and operational characteristics of customers, different platform parameters, driving forms, control methods, and other auxiliary accessories can be selected and configured, with good scalability and compatibility to meet diverse usage needs.
（1）Scissor style design, stable and reliable, with good performance;
（2）Large carrying capacity, compact structure, simple appearance, and easy operation;
（3）adoptHydraulic cylinders and seals ensure no oil leakage and smooth lifting and lowering;
（4）The hydraulic system is equipped with overload protection function for safer use;
（5）Set up emergency descent devices during power outages to ensure emergency safety;
（6）Reserved wiring ports for system implementationPLCControl, wider compatibility;
（7）Each unit can be customized non-standardMeet the needs of different customers.

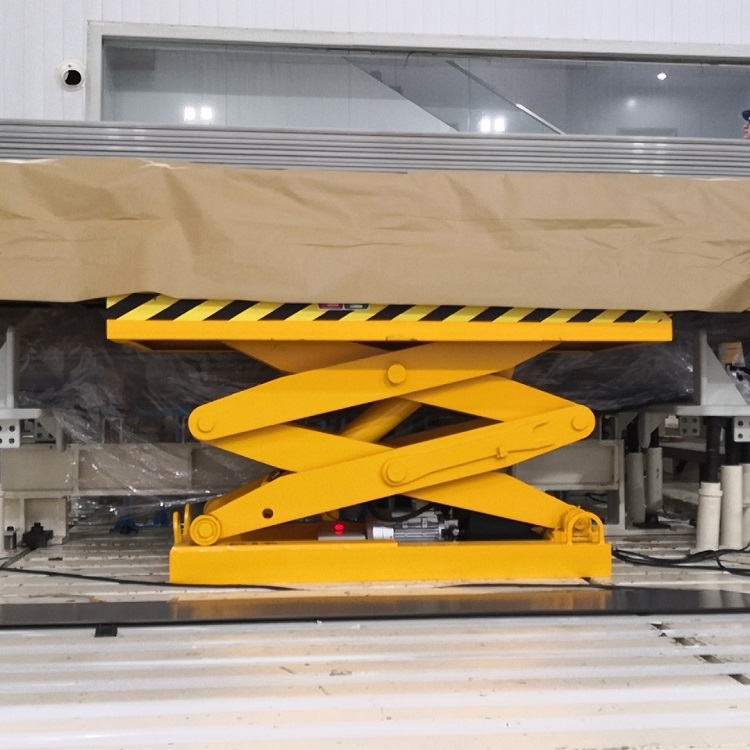

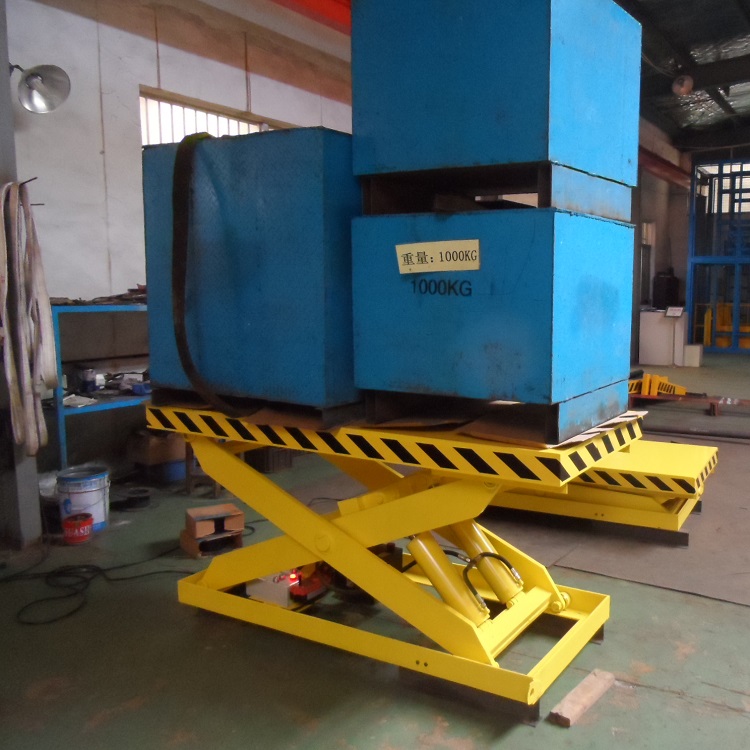

Application Examples
Sincerely thank you for visitingZhongruiWebsite! You can obtain it through this serviceZhongruiThe company has carefully formulated a product service support plan for you. If you have any questions or suggestions during the process of purchasing our products, you can contact us at any time through the following methods to solve your problems, provide meticulous and thoughtful consulting services, and ensure that customers buy satisfactory productsFixed lifting platformProduct.
If you need product consultation services: please call0512-65388131；
If you need technical support services: please call0512-69220736；
If you need to send a purchase request: Pleasemake a phone call0512-66065499；
If you needafter-sales serviceRequirement: Please make a phone call0512-69220716；
You can also learn more product information by sending an email:szoree@126.com
ZhongruiTo our vast customer baseProducts soldprovidebelowService
（1）One year warranty
（2）lifetime maintenance
（3）Ping AnpropertyinsuranceLimited Company National Joint Guarantee
