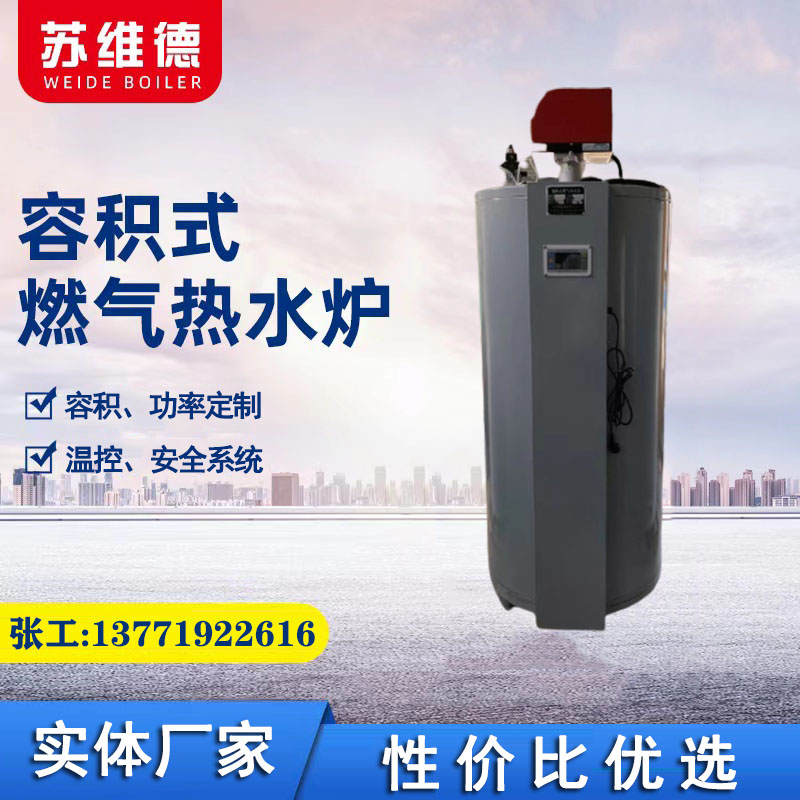

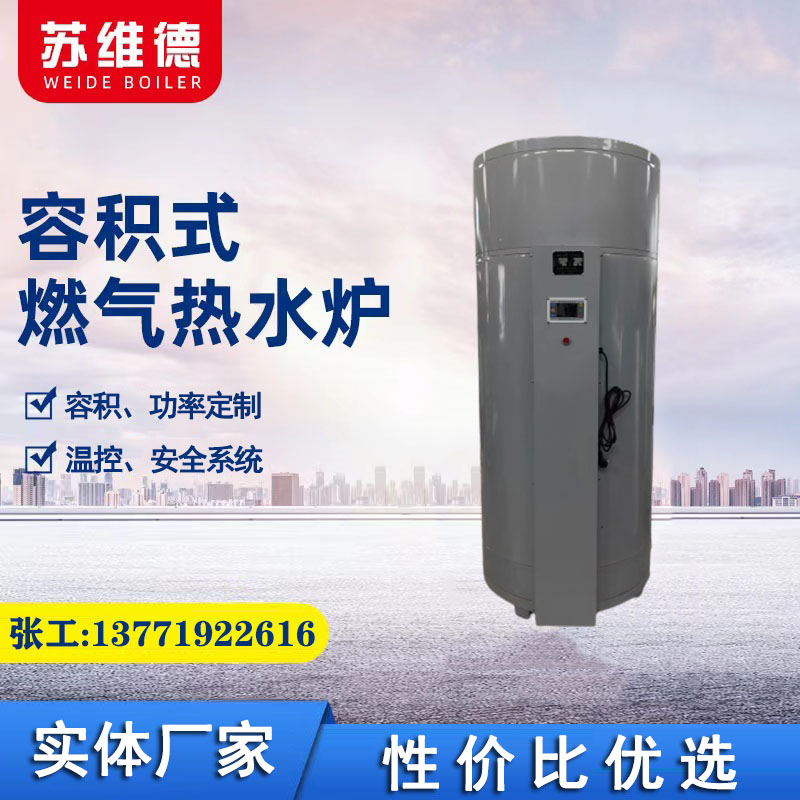

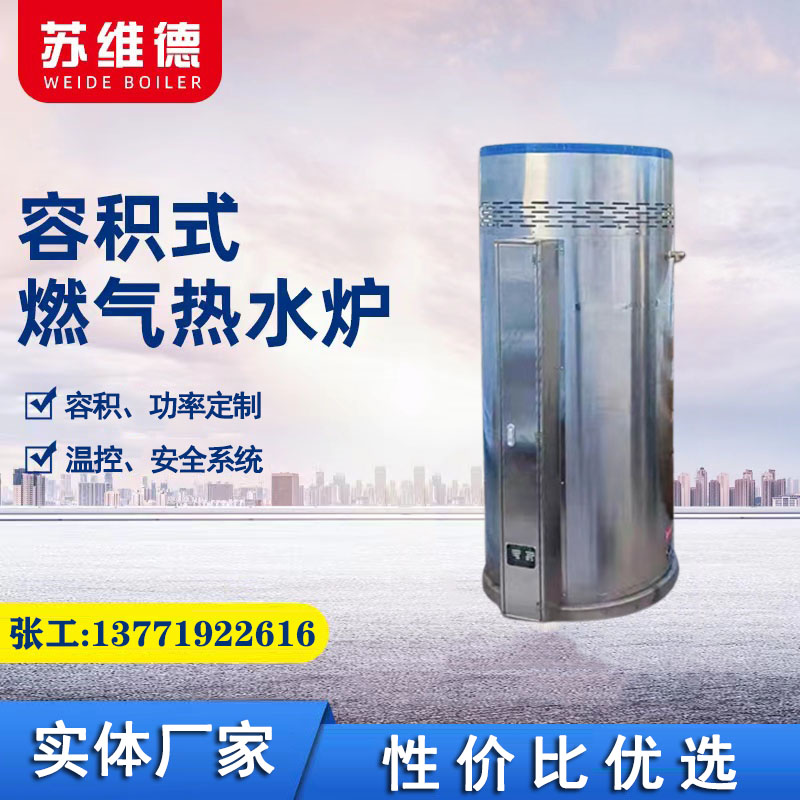

BTR(BTRO)Series Commercial Condensing Low Nitrogen Volume Gas Water Heater

All-new condensation design, efficiency up to105%

In traditional gas equipment, The latent heat of vaporization in the steam within the high-temperature flue gas produced by gas combustion is not utilized. Condensing volumetric gas water heater UtilizeCondensation technologyCool smoke to40~8At 0°C, the latent heat of vaporization of steam is fully utilized, thus increasing the heat output by approximately 15% under the same input load.。

Performance Features

Energy-saving

TopAllPre-mixed combustion, significantly enhancing combustion efficiency; unique spiral heat exchanger, fully absorbing the latent heat of vaporization of water vapor in flue gas, achieving a high thermal efficiency of105%。

Easy installation

Two models (indoor unit, outdoor unit), compact size; can be connected for balanced exhaust, without consuming indoor air.

Safe and reliable

Electrical spark ignition, low load start-up; with a quadruple protection of temperature controller, high-temperature limit, over-temperature protection, and temperature-pressure safety valve to ensure operation safety; pressure-bearing capacity up to1.1MPa,

Easily manage fluctuations in pipeline water pressure.

Long lifespan

Option 1:316LStainless steel inner lining316L Furnace Tube，304 stainless steel exteriorFood-grade stainless steel quality is guaranteed, offering longer-lasting protection for the inner lining.

Option Two: The main unit is fully vitrified, resistant to acidic and alkaline water, especially anti-corrosion and scale prevention, extending the overall service life.。

Option 3: Full body hot-dip galvanized coating for the main unit. The galvanizing process is mature and stable, cost-effective, with high cost-performance ratio.。

Low Nitrogen Eco-Friendly

Two emission options: Standard and Low Nitrogen Type, Low Nitrogen TypeNOx emissions less than 30 mg/m³^3,Meets environmental standards; more eco-friendly.
