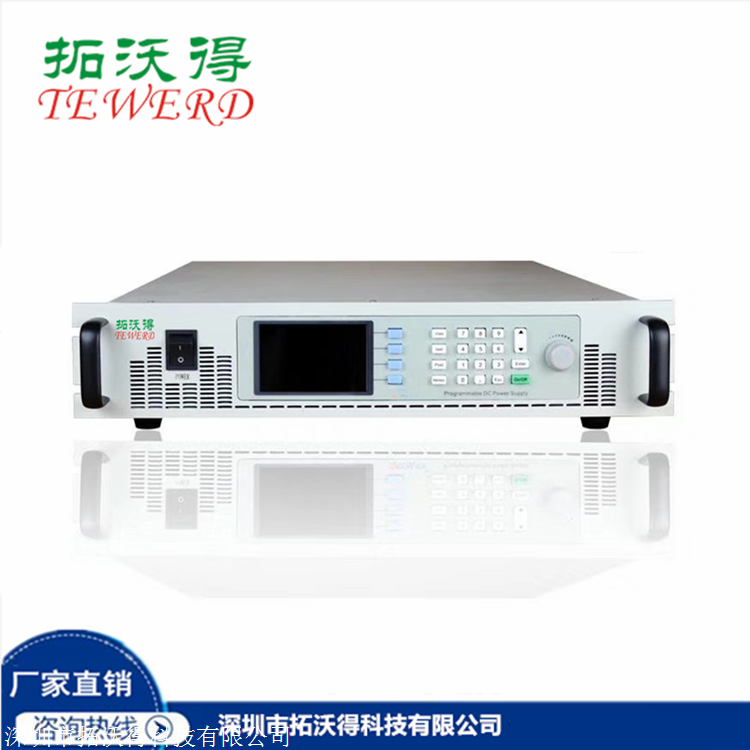

TPV1000 Photovoltaic Simulator
The photovoltaic simulator is independently researched, developed, and produced by Shenzhen Tuowode Technology Co., Ltd. Welcome to inspect and try the sample machine.
Tuowei Brand TPV1000 Photovoltaic Array Simulator - Simulates IV Curve MPPT Tracking for Photovoltaic Simulators
Product Summary
Tuoweide Company's TPV1000 PV IV Array Simulator is well-regarded by domestic brands.
The TPV1000 series solar cell array simulator (also known as the solar cell I-V simulator) utilizes full-bridge phase-shift soft-switching technology, with dual ARM and DSP CPUs for control. It features 16-bit high-speed ADC for rapid and accurate measurement, with a high-speed DSP performing PID calculations and directly outputting PWM. The Fill Factor allows simulation of various solar cell output characteristics. It can mimic I-V curves under different light and temperature conditions, boasts a modular design, and provides high-precision, low-ripple power output with fast dynamic response to voltage and current changes, achieving an efficiency of up to 93% and conforming to EN50530/Sandia/CGC-GF004 standards. The product is mainly used for research and development, as well as testing, of photovoltaic inverters and microgrid system integration.
Product Featuress

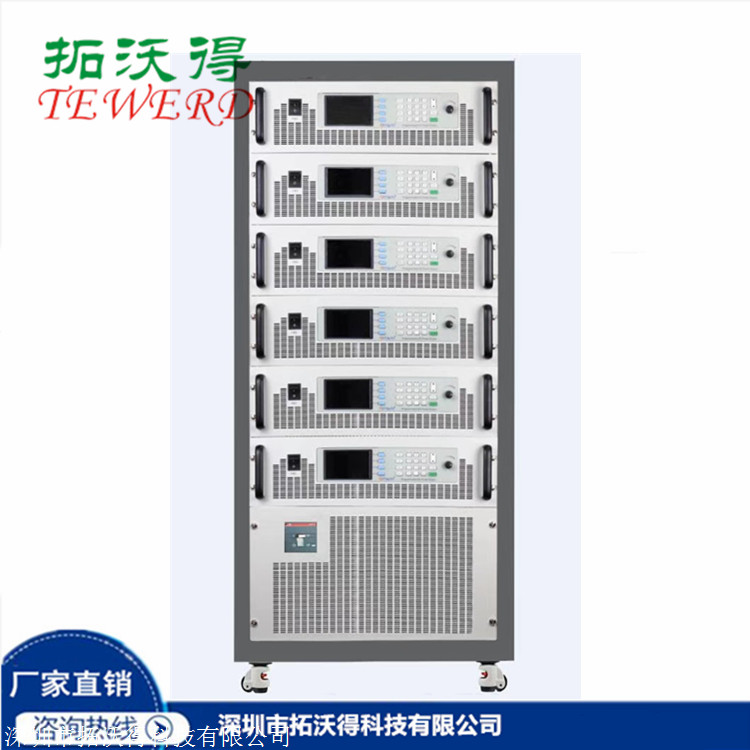

◇ Power capacity available: 600W – 1500kW
◇ Simulates the output characteristics of solar panels.
◇Simulates I-V curves under various light and temperature conditions;
◇The fill factor can simulate the output characteristics of various solar cells.
◇Simulates the I-V curve when a solar panel is shaded.
◇Testable for MPPT under both static and dynamic conditions, with the MPPT operating point displayed in real-time on the supervisory control software.
◇ Features constant power mode, constant internal resistance mode, and adjustable internal resistance.
◇ Features a powerful graphical supervisory control software;
High voltage regulation accuracy, low ripple voltage.
◇ Features a 16-bit high-speed ADC for fast and accurate measurement
◇ Dual ARM and DSP CPU control
◇Utilizes full-bridge phase-shift soft-switching technology; Wuhan Photovoltaic Simulator - Photovoltaic Panel IV Curve Simulation Equipment - Manufacturer Direct Supply of Photovoltaic Array Simulator
Dynamic stability optimized using Matlab simulation.
◇ Utilizes high-speed DSP for PID calculations and directly outputs PWM.
◇ Transformers utilize amorphous iron cores, featuring high saturation magnetic induction, high permeability, high inductance, low loss, compact size, light weight, strong resistance to electromagnetic interference, excellent frequency characteristics, and high temperature stability; Shanghai Photovoltaic Simulator - Photovoltaic Panel IV Curve Simulator - Photovoltaic Array Simulator
◇Quickly store 9 sets of data (voltage, current, power)
◇ Features overpressure, overcurrent, overtemperature, and short-circuit protection functions;
Voltage, current, and time settings with digital key input, high accuracy.
◇ Equipped with RS232C communication interface (RS485, GPIB optional)
◇The product has passed the CE certification.
◇ Meets EN50530/Sandia/CGC-GF004 standards.
