1. Basic Description

The hull is composed of two floats, fully assembled and tested prior to delivery. It can be easily and quickly installed on-site and operates with a standard design. Delivery is timely, adhering to coastal water standard designs.

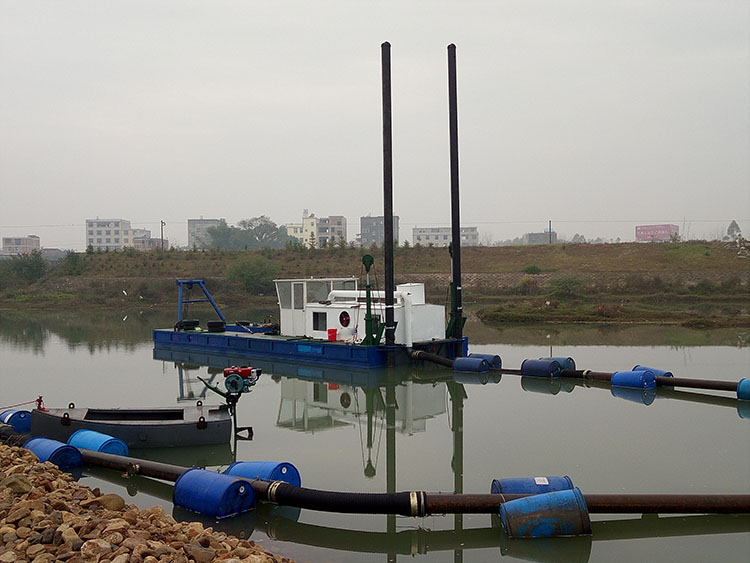

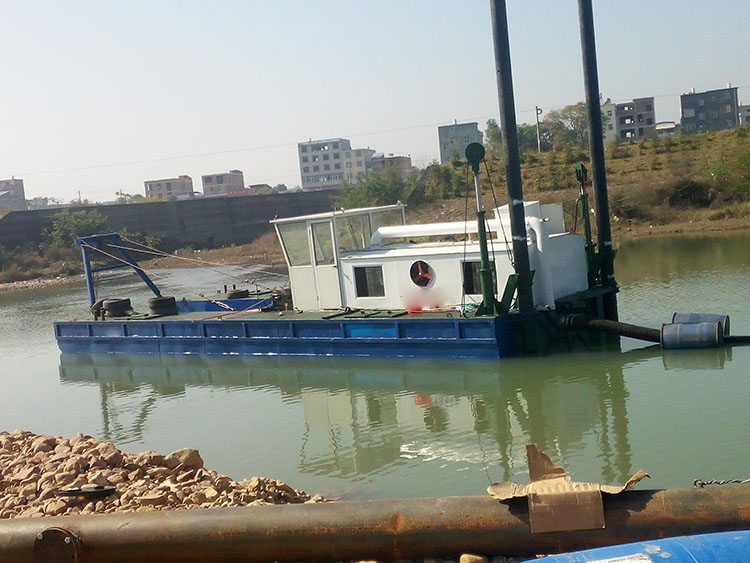

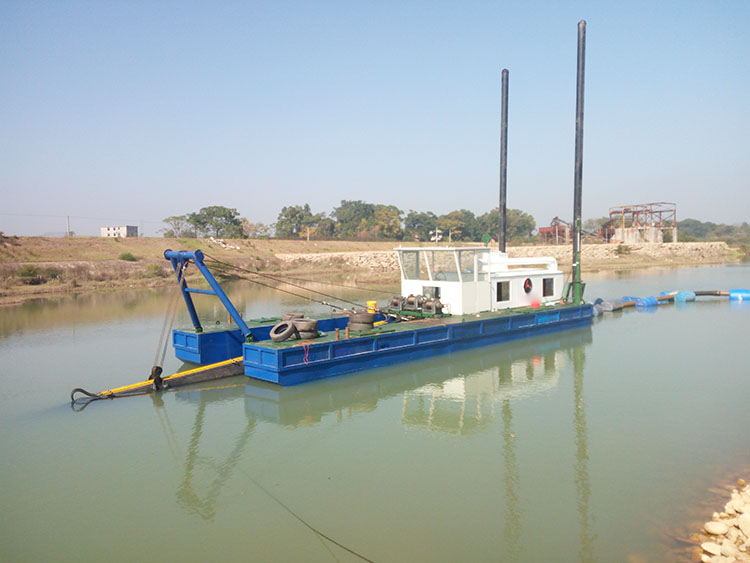

The cutter suction dredger is a widely used piece of equipment in beach reclamation and sand mining projects. It employs a rotating cutter head at the front of the suction tube to cut and stir riverbed sediment, propelling the lifted material through a pipeline to a sediment storage area with its powerful pump. Its dredging, transporting, and unloading processes can be completed continuously in one operation. It is an efficient and cost-effective sediment挖掘 device, making it an excellent underwater excavation machine.

The mud pump is driven by the main diesel engine through a gear reduction box.

Emergency pump station units provide onboard lighting and emergency power during shutdowns.

The auger is driven by a hydraulic motor, and the auger bearing is equipped with a lubrication and sealing device.

The winch and the capstan lifting winch on this vessel are both powered by hydraulic motors.

定位桩 and trolleys are driven by hydraulic cylinders.

Anchor and windlass winches are driven by hydraulic motors.

The hydraulic pump is driven by the auxiliary unit.

2. Terms of Use, Regulations

2.1 Working Environment Conditions

Ambient air temperature at high altitude: 50°C

Low Air Temperature Environment -100°C

Cabin high temperature          500°C

--- River (Sea) Water High Temperature   300°C

Relative Humidity ≤ 70%

2.2 Suitable Flight Zones

Dredging and sand挖掘 activities in coastal and sub-coastal waters.

2.3 Soil Conditions

Dredging soil Grade III and below, as well as iron plate sand.
