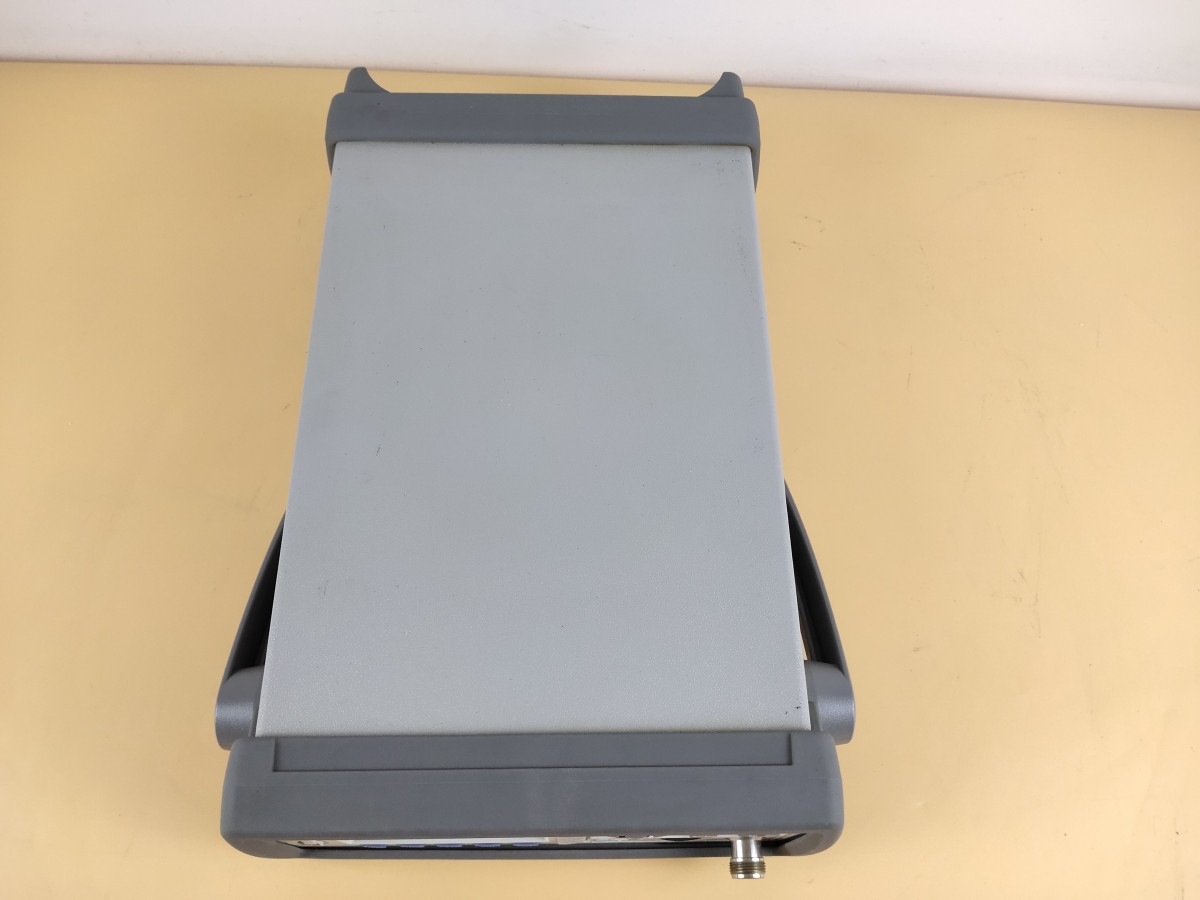

KEYSIGHT N1913A EPM Series Single Channel Power Meters

Summary

N1913A single-channel power meter is compatible with all N8480, 8480, U2000 series, and E series sensors (excluding the E9320 series) and can perform average power measurements from -70 to +44 dBm across a frequency range of 9 kHz to 110 GHz.

Description (N1913A EPM Series Single Channel Power Meters)

Keysight (formerly Agilent) N1913A and N1914A EPM Series power meters offer powerful new features and are compatible with the popular E4418B and E4419B EPM power meters. With a reading rate twice as fast as the E Series power sensors and flexible GPIB, LAN LXI-C, or USB connectivity, they make average power measurements incredibly simple. The new EPM power meters are compatible with all sensors from the E9300, E4410, and N8480 series, including discontinued models in the 8480 series. Users can add two more power sensors to the power meter via an optional USB host port, converting the N1913A and N1914A into 3-channel or 4-channel power meters. Additionally, the color display makes it easier to view and analyze data.

Key Features and Technical Specifications (N1913A EPM Series Single Channel Power Meters)

Frequency Range: 9 kHz to 110 GHz (dependent on sensor)

Wide Dynamic Range: -70 to +44 dBm (Dependent on sensor)

Speed increased to twice that of the E-series sensors: up to 400 readings/second

It offers not only GPIB connectivity but also LAN LXI-C and USB connectivity.

Enhanced user interface with high-resolution color display and digital numeric keypad

The code is compatible with power meters E4418B, E4419B, 436A, 437B, and 438A.

Higher measurement channel count: Up to three channels, additional two U2000 series power sensors can be connected using the optional USB host port.

Utilize the optional external trigger input/output feature for automatic frequency/power scan measurements
