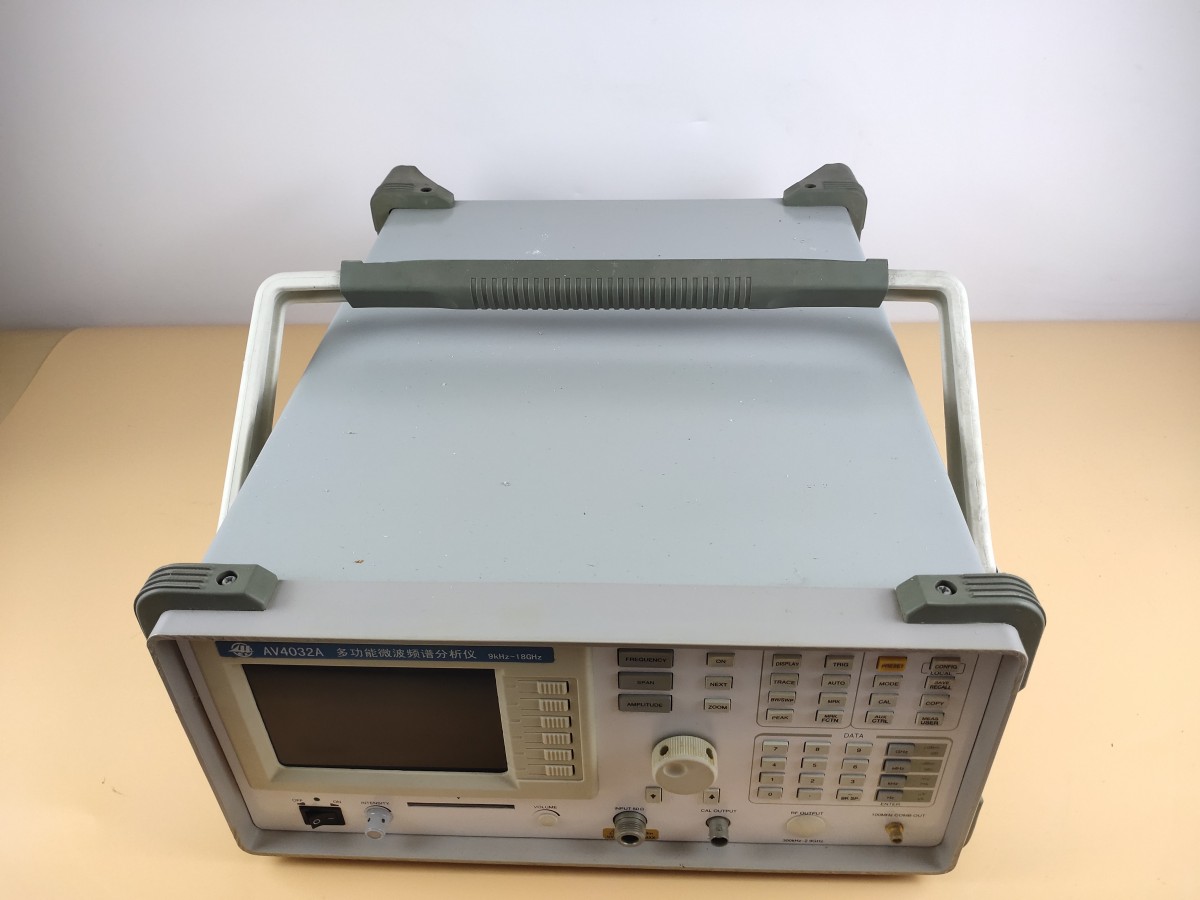

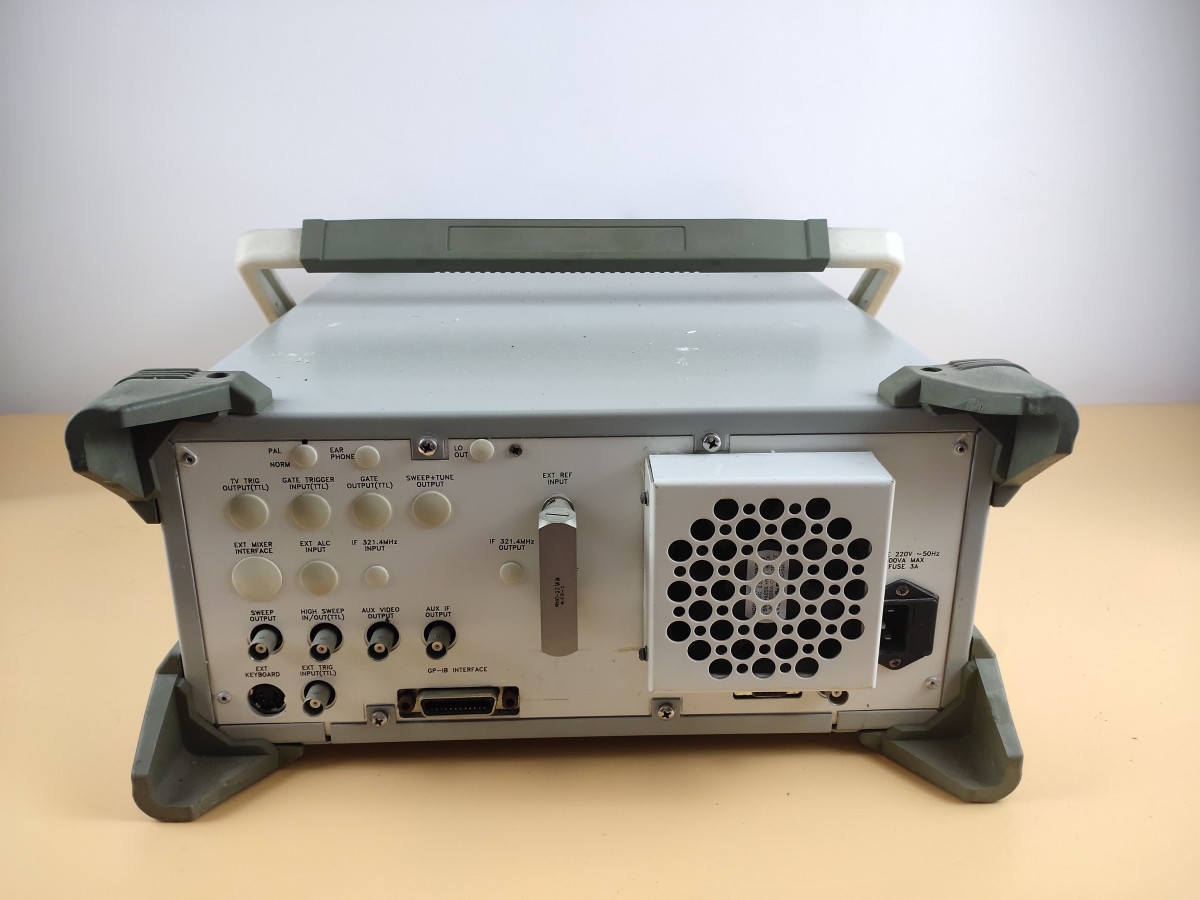

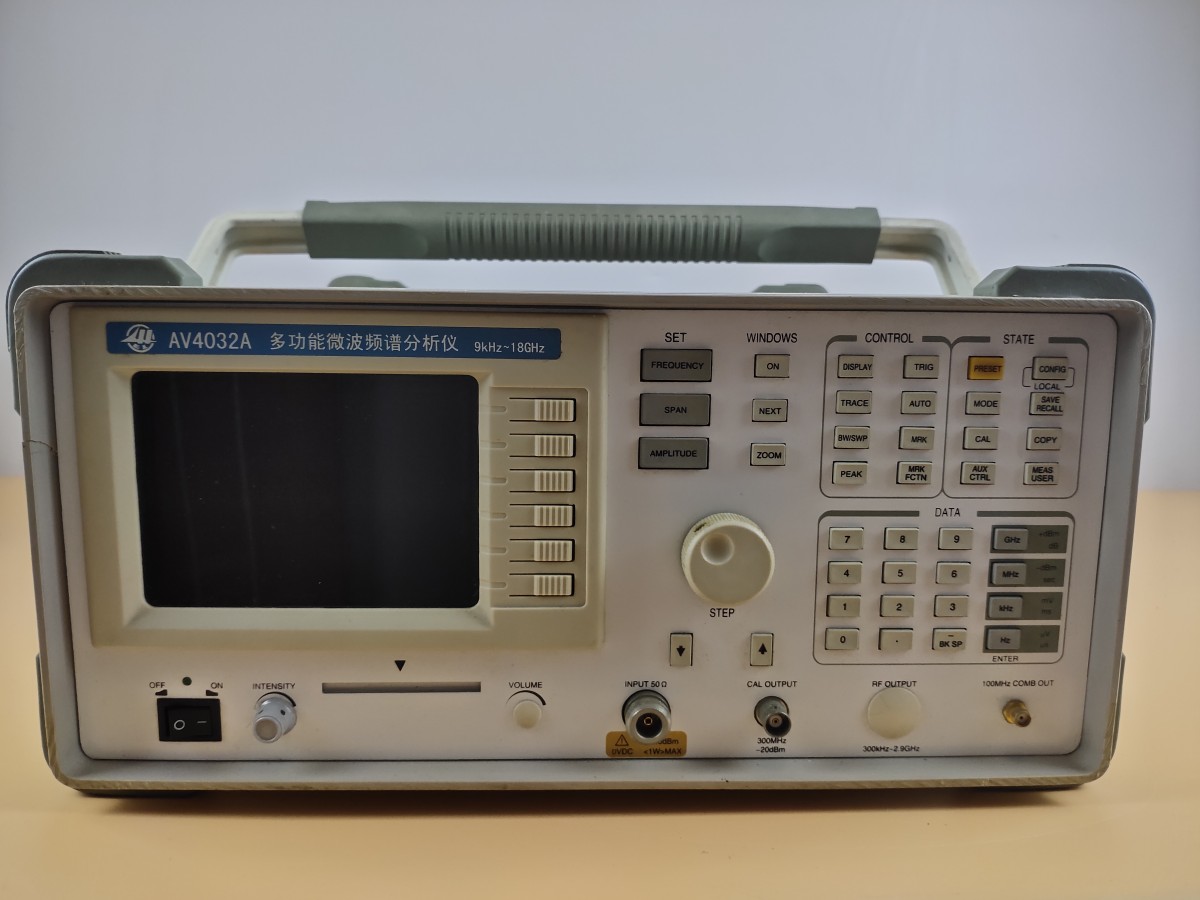

Agilent AV4032A Spectrum Analyzer

Summary

The AV4032 series microwave spectrum analyzer features over 100 functions including self-test, self-diagnosis, self-calibration, self-adaptation, automatic search, automatic tracking, hold, digital storage/call, frequency marker readout, amplitude-modulated Fourier transform, automatic calculation, man-machine dialogue, graphic display, automatic printing/drawing output, and GPIB interface. It is applicable to electronic countermeasures, satellite communication, navigation, frequency...

Rate Testing, Component Testing, Digital Communication, Electromagnetic Compatibility, and more.

Key Technical Specifications

Weight: 20 kg

Select Options

Track Signal Generator (Option 002)

A. Frequency Range: 300 kHz to 2.9 GHz

Output Level: -66dBm to -ldBm

Harmonic Response: ≤-22 dBc

D. Non-harmonic: ≤—23 dBc E.

Output Flatness: (Ref. 300MHz) -20dBm Output: ±2dB when output frequency > 10MHz

2.10MHz Frequency Reference (Option 004)

A. Aging Rate: ≤2×10^-9/day

B. Temperature Drift: ≤±5×10^-8

C. Frequency Accuracy: Better than 8×10^-8
