I. Brief Introduction:

Brand: Agilent/Agilent Technologies

Product Model: E4402B

Product Specifications: 100 Hz to 3.0 GHz

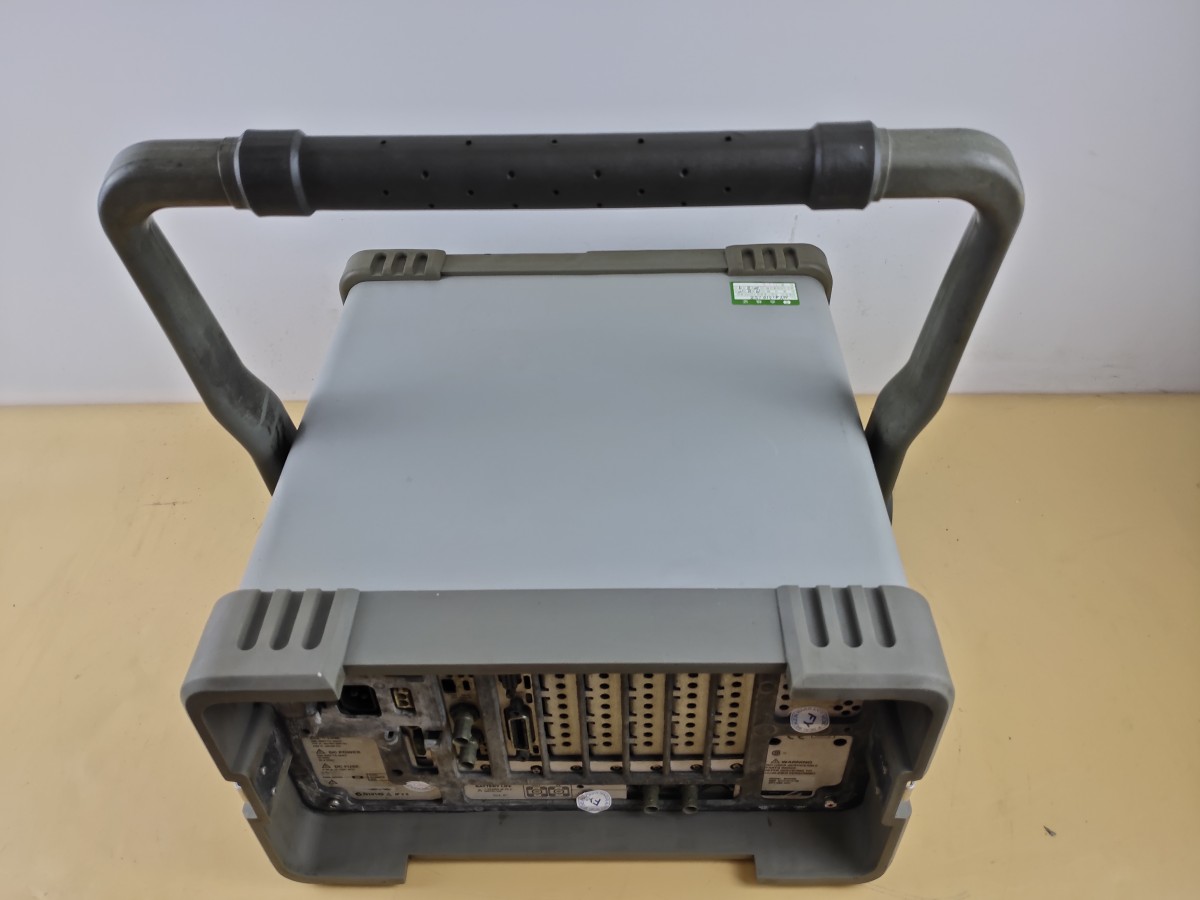

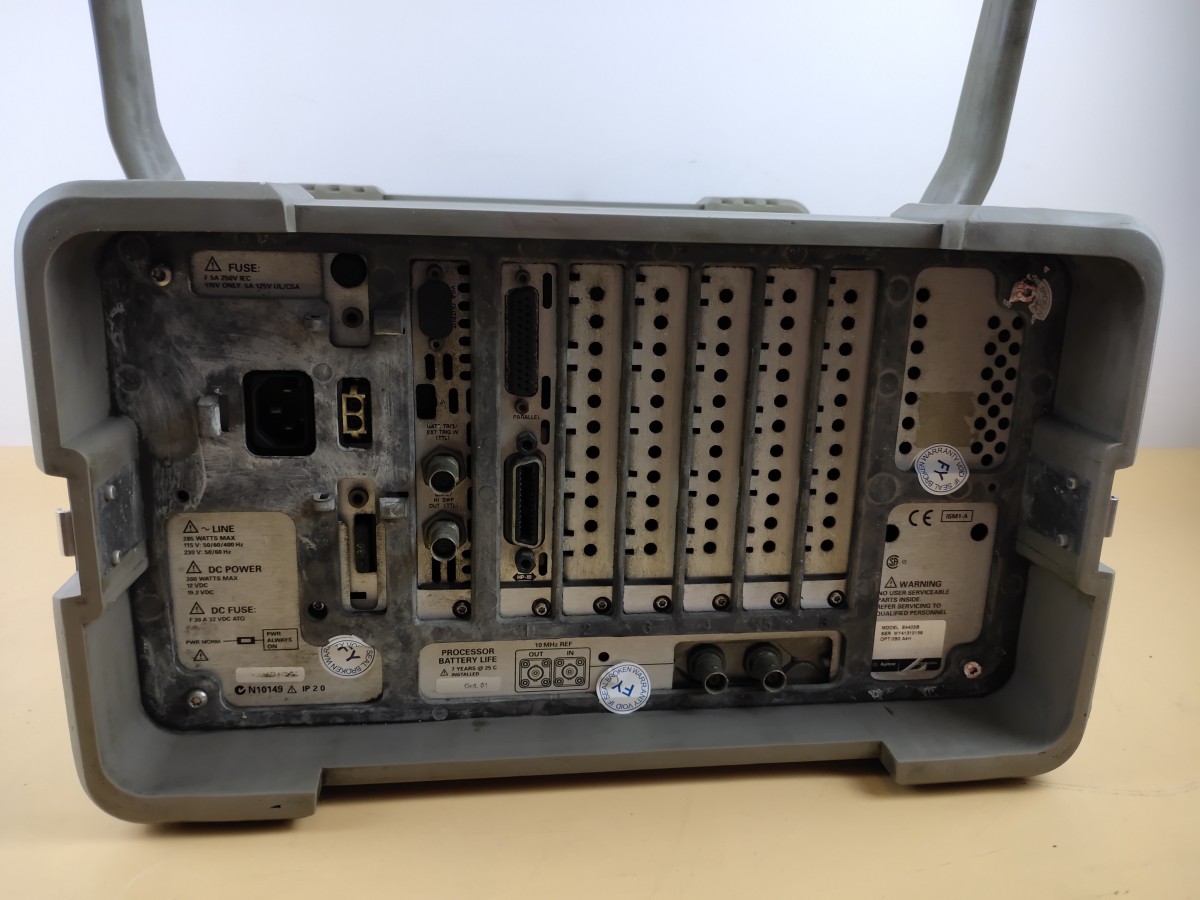

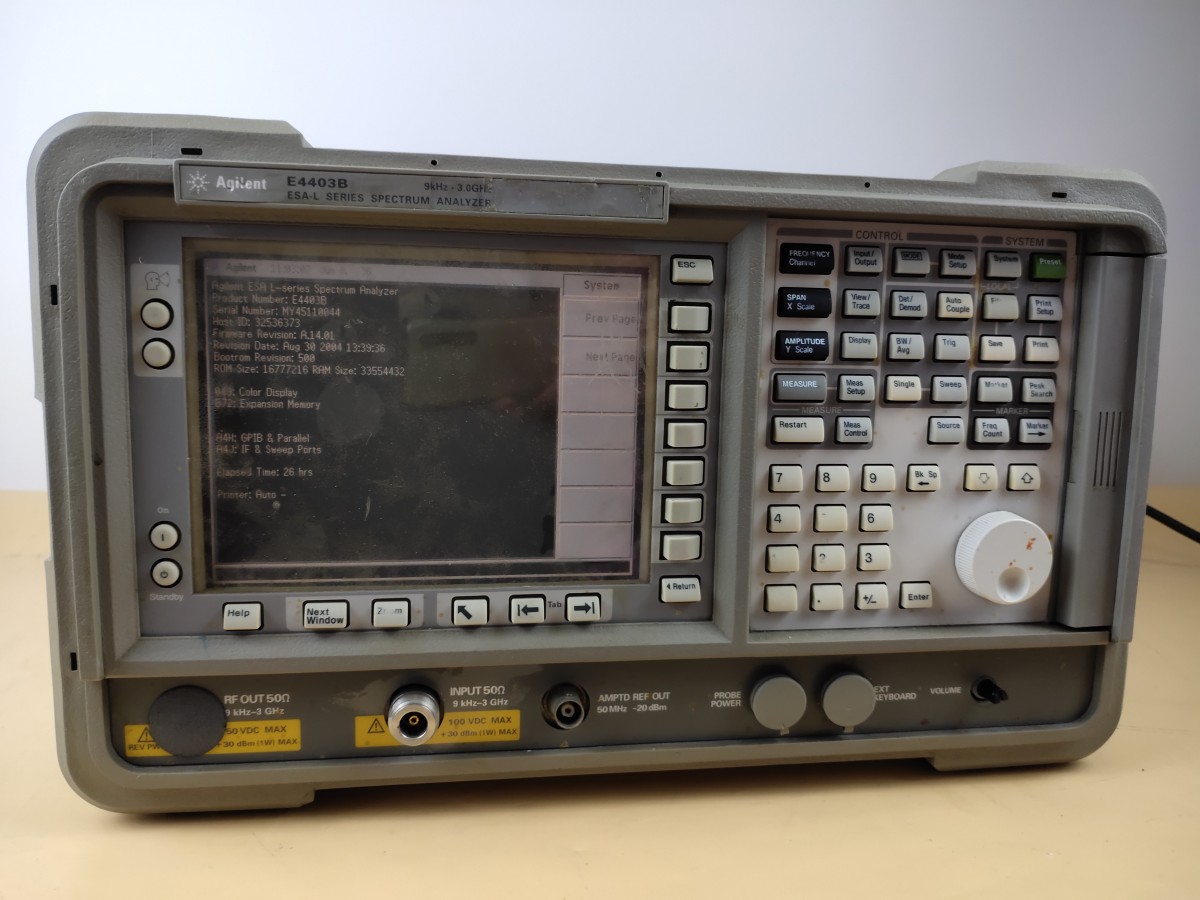

Product Information: Agilent E4402B ESA-E Series Spectrum Analyzer

II. Main Features and Technical Specifications

Performance

• Overall amplitude accuracy of 0.4 dB

•+16 dBm TOI

• -166 dBm DANL, with built-in preamplifier

• 1 Hz narrow resolution bandwidth (optional)

Measurement Application Software

• Phase Noise, Noise Figure, GSM/EDGE, cdmaOne, etc. Measurement Application Software

• Includes power kit for one-touch RF power measurement

Features

• 10 MHz analysis bandwidth

•Segmented scanning, scanning 32 non-continuous ranges at once

• Portable and durable, offering lab-grade performance on-site

• 5-minute preheat time ensures measurement accuracy
