1. Brief Introduction:

Brand: Agilent/Agilent Technologies

Product Model: E4443A PSA

Product Specifications: 3 Hz - 6.7 GHz

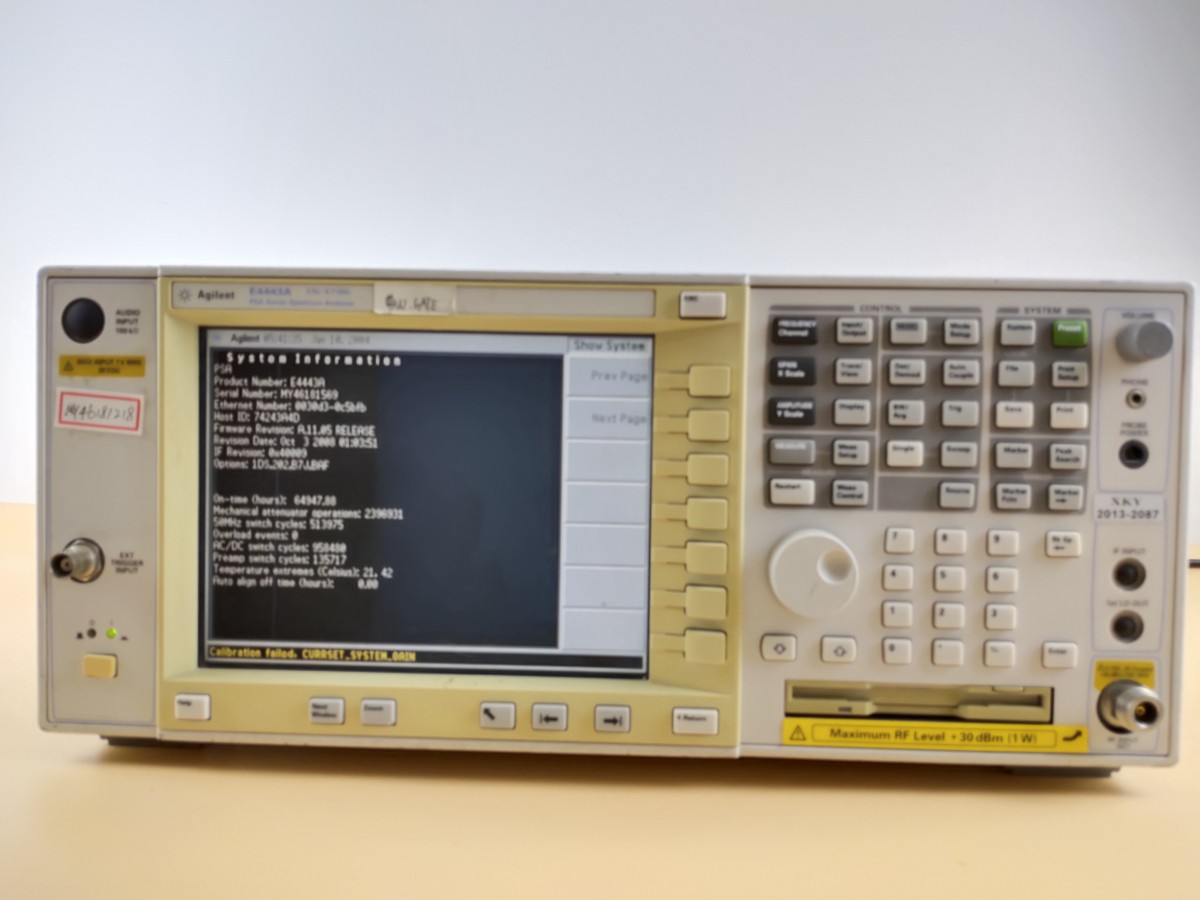

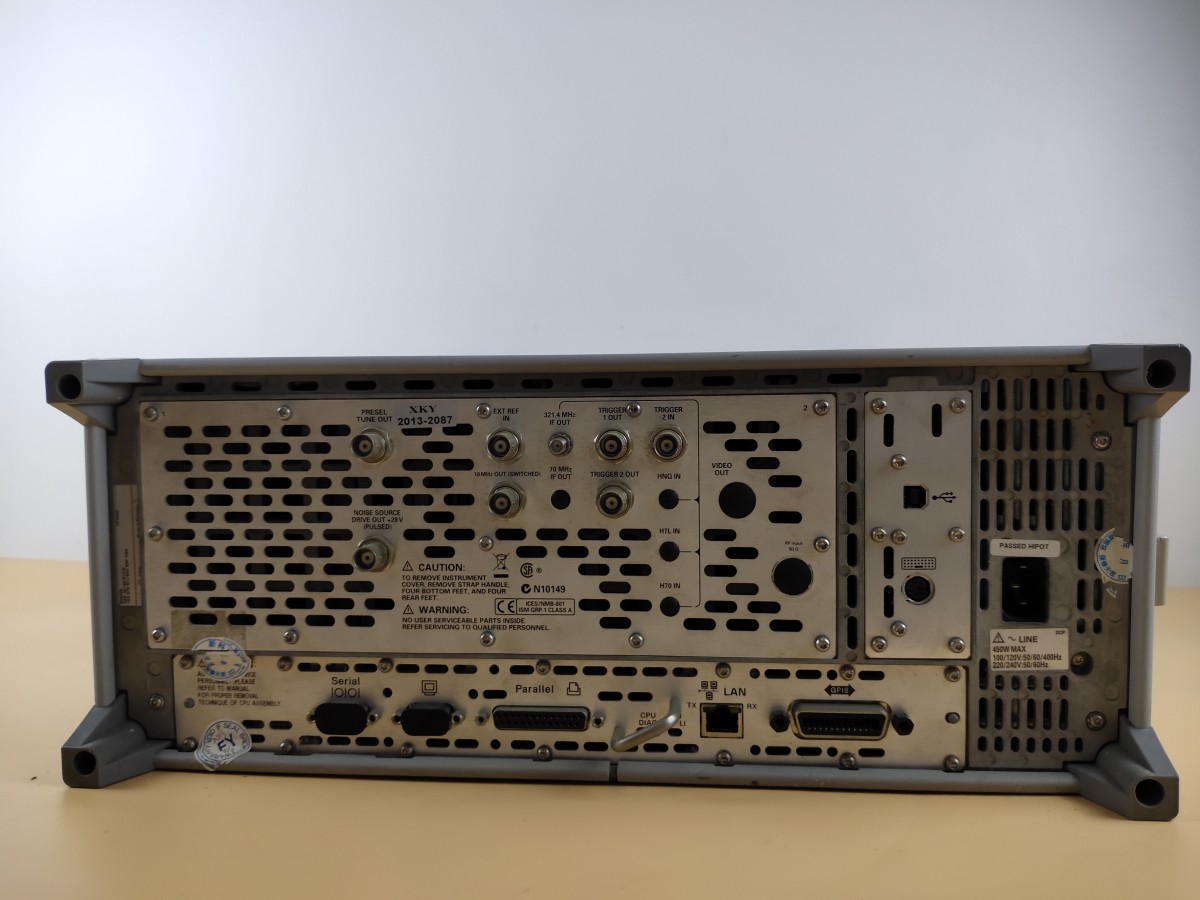

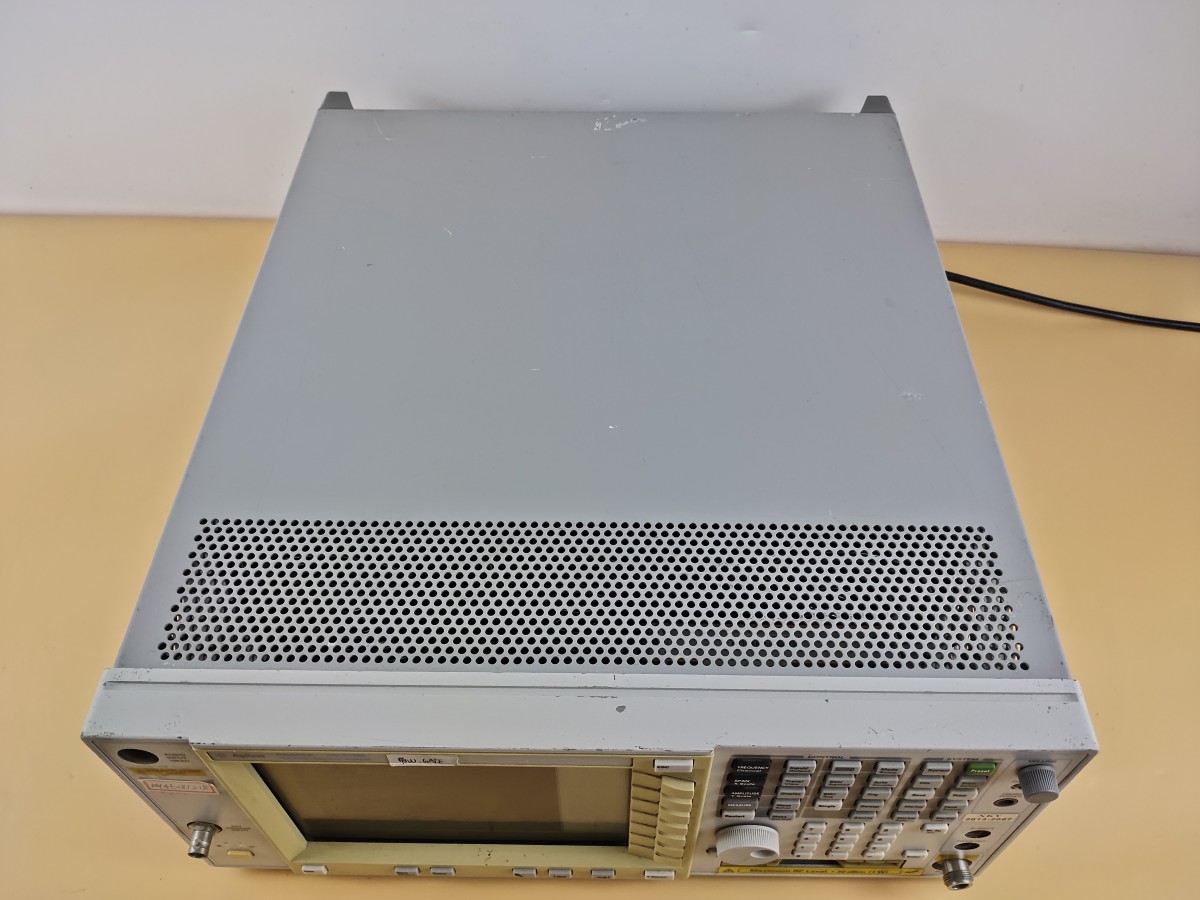

Product Information: E4443A PSA Series Spectrum Analyzer

II. Main Features and Technical Specifications

Performance

• +/-0.19 dB Amplitude Accuracy

-155 dBm (–169 dBm when using a preamplifier) indicates the average noise level (DANL)

• Phase noise at 10 kHz offset: -118 dBc/Hz

• 81 dB W-CDMA ACLR Dynamic Range

Analyze bandwidth

•10 MHz Analysis Bandwidth (Option B7J for Basic Mode)

• Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals. Watch the demo

• -78 dB (rated value) third-order intermodulation for 40 or 80 MHz analysis bandwidth

• 300 MHz analysis bandwidth suitable for calibrated VSA measurements

Flexibility

• A flexible platform with 16 optional and user-friendly built-in software and hardware options

• Standard with Agilent PowerSuite One-Touch Power Measurement

• General data analysis, visualization, and计量automation software MATLAB. PSA series MATLAB software

Section 3: Description

The Agilent E4443A PSA High-Performance Spectrum Analyzer can measure and monitor complex radio frequency signals up to 6.7 GHz.

Transition from PSA to PXA:

The PXA N9030A, as Agilent's latest high-performance signal analyzer, integrates PSA technology and is an ideal replacement in terms of appearance, installation, and functionality. The PXA N9030A offers a wider analysis bandwidth and enhanced connectivity. Why transition from PSA to PXA?
