I. Brief Introduction:

Brand: Agilent/Agilent Technologies

Product Model: E4446A PSA

Product Specifications: 3 Hz - 44 GHz

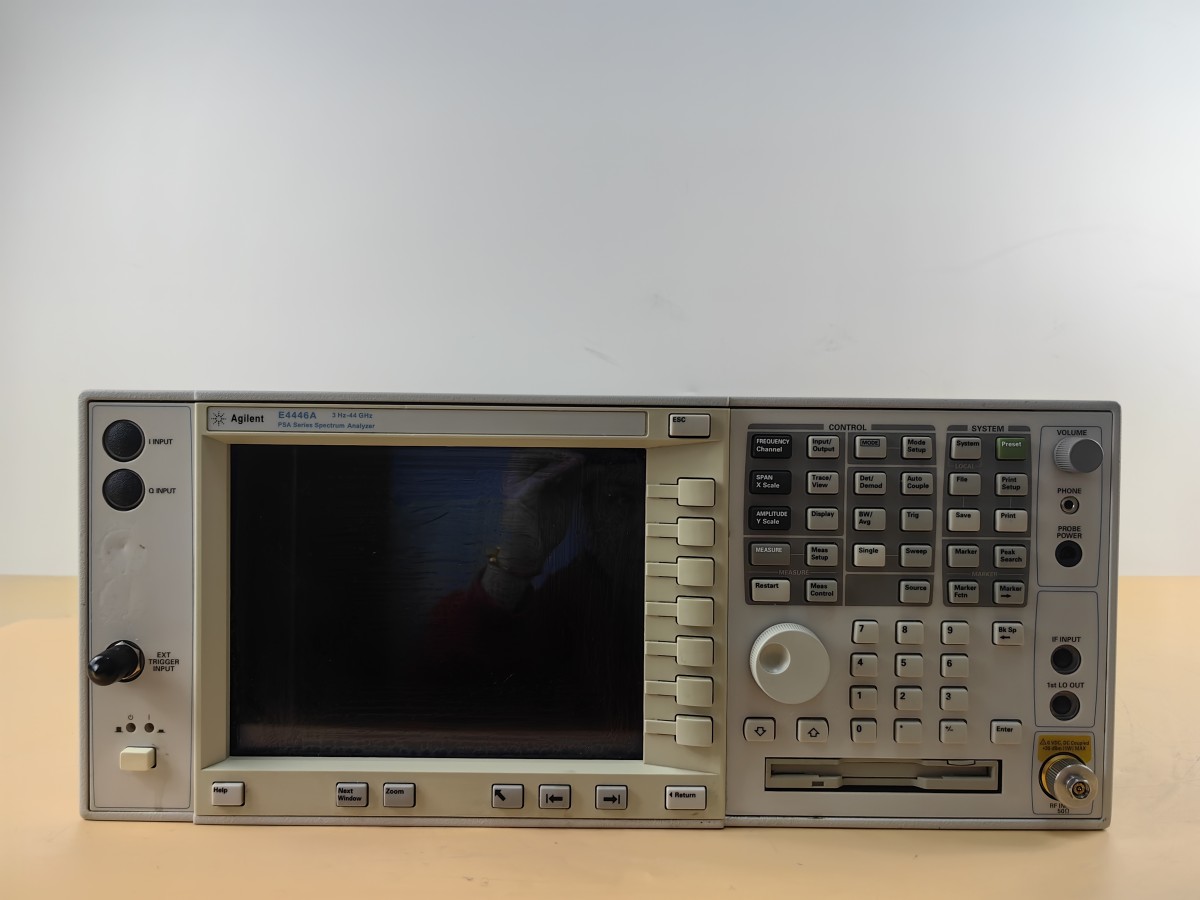

Product Information: E4446A PSA Series Spectrum Analyzer

Section II: Main Features and Technical Specifications

Frequency3 Hz to 44 GHz, External Mixers to 325 GHx

Analyze bandwidth80 MHz

Bandwidth OptionsStandard Configuration: 10, 40, 80 MHz

1 GHz DANL-168 dBm

At 1 GHz, phase noise at 10 kHz frequency offset-118 dBc/Hz

At 1 GHz, phase noise at 1 MHz offset-147 dBc/Hz

Overall Range Accuracy±0.19 dB

Third-order Intercept (TOI), at 1 GHz+20 dBm

3rd Order Dynamic Range at 1 GHz116 dB

Application - General

EMI Pre-Consistency

Flexible Digital Modulation Analysis

Noise Coefficient

Phase Noise

Pulse

Incentivize Response

MATLAB

Performance Level◆◆◆◆◇◇

Standard Attenuator Attenuation Range70 dB

Standard Attenuator Step2 dB

Available ApplicationsIs

III. Description

The Agilent E4446A PSA High-Performance Spectrum Analyzer can measure and monitor complex radio frequency, microwave, and millimeter-wave signals up to 44 GHz. The external mixer option further expands the frequency range: up to 110 GHz with Agilent external mixers; up to 325 GHz with other manufacturers' mixers. Agilent External Mixer Products.

Exceptional analysis features: Up to 80 MHz analysis bandwidth, +/-0.19 dB amplitude accuracy, -155 dBm DANL, -118 dBc/Hz phase noise at 10 kHz offset, and 81 dB W-CDMA ACLR dynamic range.

Comprehensive features cater to specific application requirements, including 16 measurement software modules.
