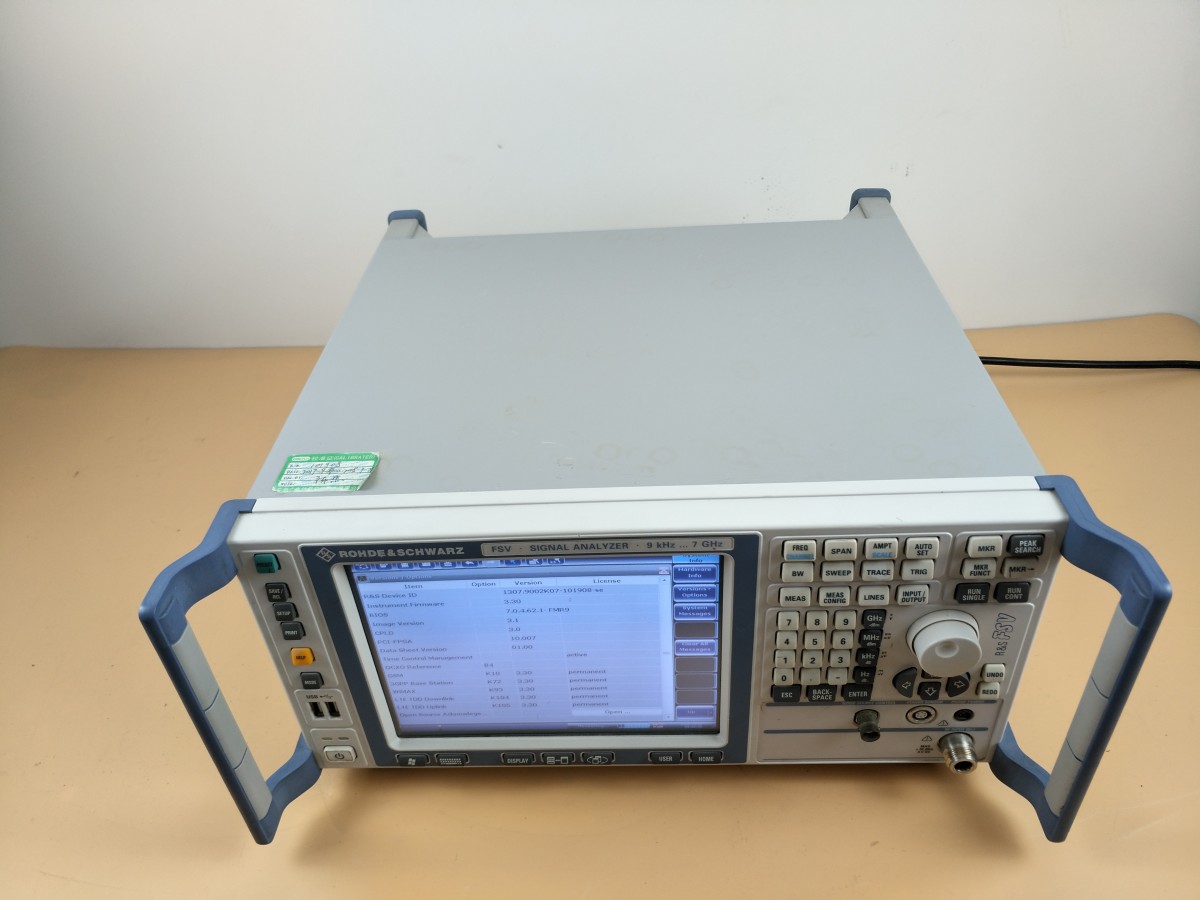

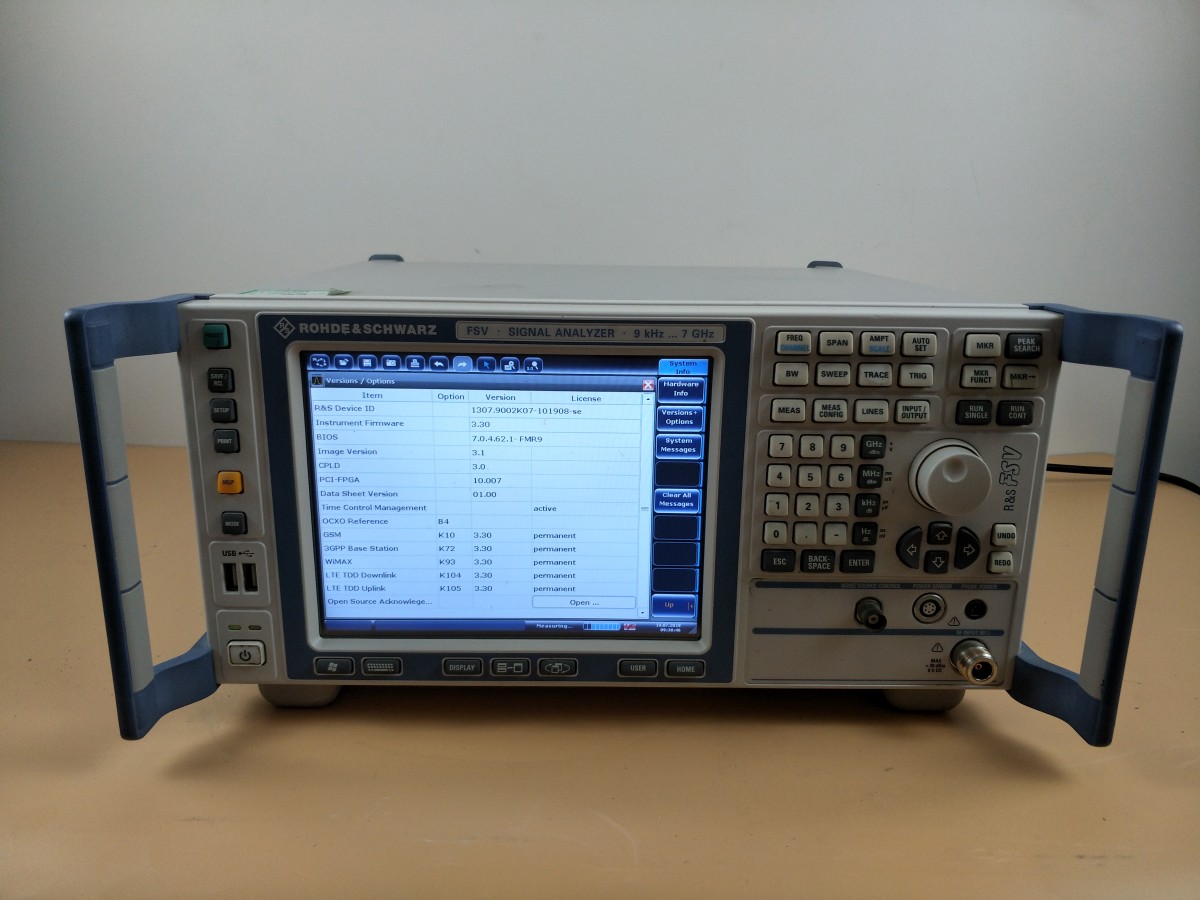

Product Name: Spectrum Analyzer
Brand: Rohde & Schwarz
Product Model: FSV 7
Frequency Range: 10Hz to 7GHz
Frequency range up to 7 GHz
40 MHz Analysis Bandwidth
Measurement uncertainty for levels below 7 GHz is only 0.4 dB.
Suitable for measurement applications and vector signal analysis for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WiMAX?, WLAN, CDMA2000?, and 1xEV-DO
Select options for easy on-site upgrade
10 kHz frequency offset phase noise is –110 dBc (1 Hz)
The third-order intercept point is +15 dBm (TOI).
At 1 Hz bandwidth, the average display noise level (DANL) is: –155 dBm at 1 GHz; –147 dBm at 30 GHz; with R&S?FSV-B24 preamp: –162 dBm at 30 GHz.
The hard drive is removable to ensure data security.
Utilize the R&S?FSV30 or R&S?FSV40, with the R&S?FSV-B21 option and the R&S?FS-Z60/-Z75/-Z90/-Z110 harmonic mixers to expand the frequency range up to 110 GHz.
Simple and direct operation (touch screen, hot keys)
Key Features
· Frequency range up to 3.6 GHz / 7 GHz / 13.6 GHz / 30 GHz.
· 40 MHz signal analysis bandwidth
Total power uncertainty within the 7 GHz band is 0.4 dB.
· Supports WCDMA/HSPA, LTE, WiMAX, WLAN, Analog Modulation Analysis Software
Supports R&S?NRP series power sensors with extensive power measurement capabilities
· Easy On-Site Upgrade Options
· Phase noise is –106 dBc/Hz at a 10 kHz frequency offset
+15 dBm third-order intercept point (TOI), average noise level (DANL) displayed at 1 Hz bandwidth equals –155 dBm
Removable hard drive for data security
· Featuring a touch screen and control panel for intuitive operation
