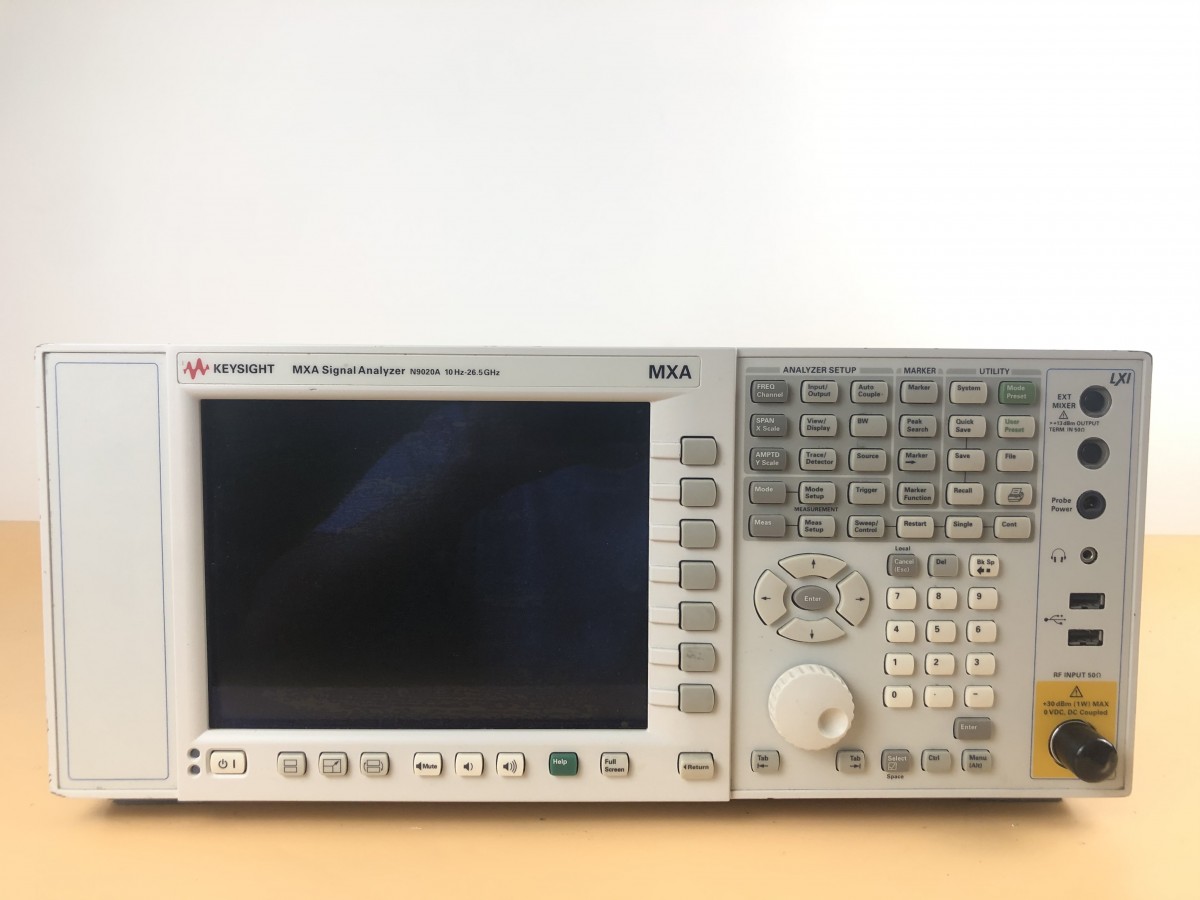

Product Name: Spectrum Analyzer

Brand: ISDE Technology

Product Model: N9020A

Frequency Range: 10 Hz to 3.6, 8.4, 13.6, 26.5 GHz

N9020A-RT1 Real-time spectrum analysis with up to 85 MHz bandwidth, basic detection

Technical Specifications

Frequency        10 Hz to 26.5 GHz, Mixers to 1.1 THz

Frequency Options3.6, 8.4, 13.6, 26.5 GHz, with mixer, up to 1.1 THz

Analyze bandwidth160 MHz

Bandwidth OptionStandard 25 MHz, 40, 85, 125, 160 MHz

Real-time bandwidth160 MHz

Real-time Bandwidth Option85, 125, 160 MHz

1 GHz DANL-166 dBm

At 1 GHz, phase noise at 10 kHz frequency offset-114 dBc/Hz

At 1 GHz, phase noise at 30 kHz frequency offset-136 dBc/Hz

At 1 GHz, phase noise at 1 MHz offset-137 dBc/Hz

Overall amplitude accuracy   ±0.23 dB

Third-order intercept (TOI), 1 GHz+20 dBm

3rd-order dynamic range at 1 GHz116 dB

Instrument TypeSpectrum Analyzer
