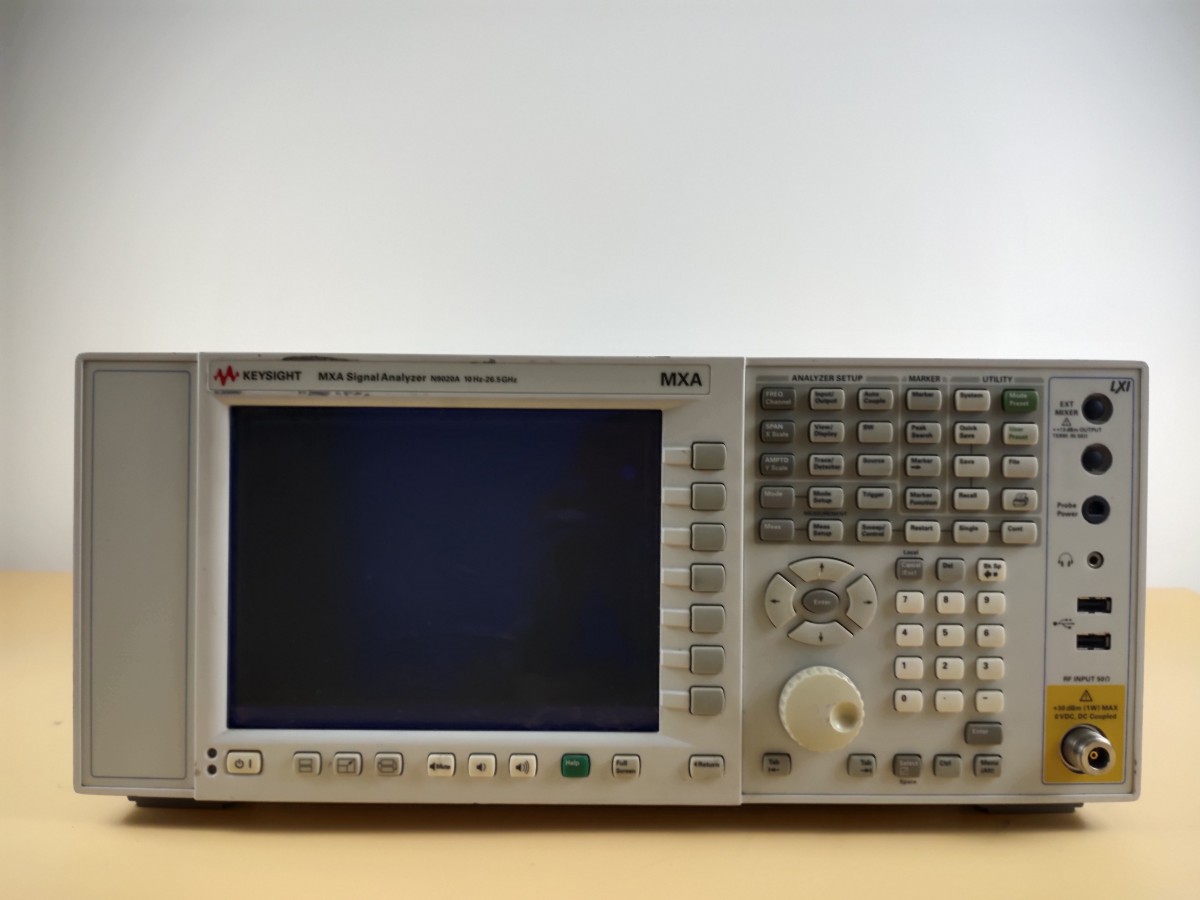

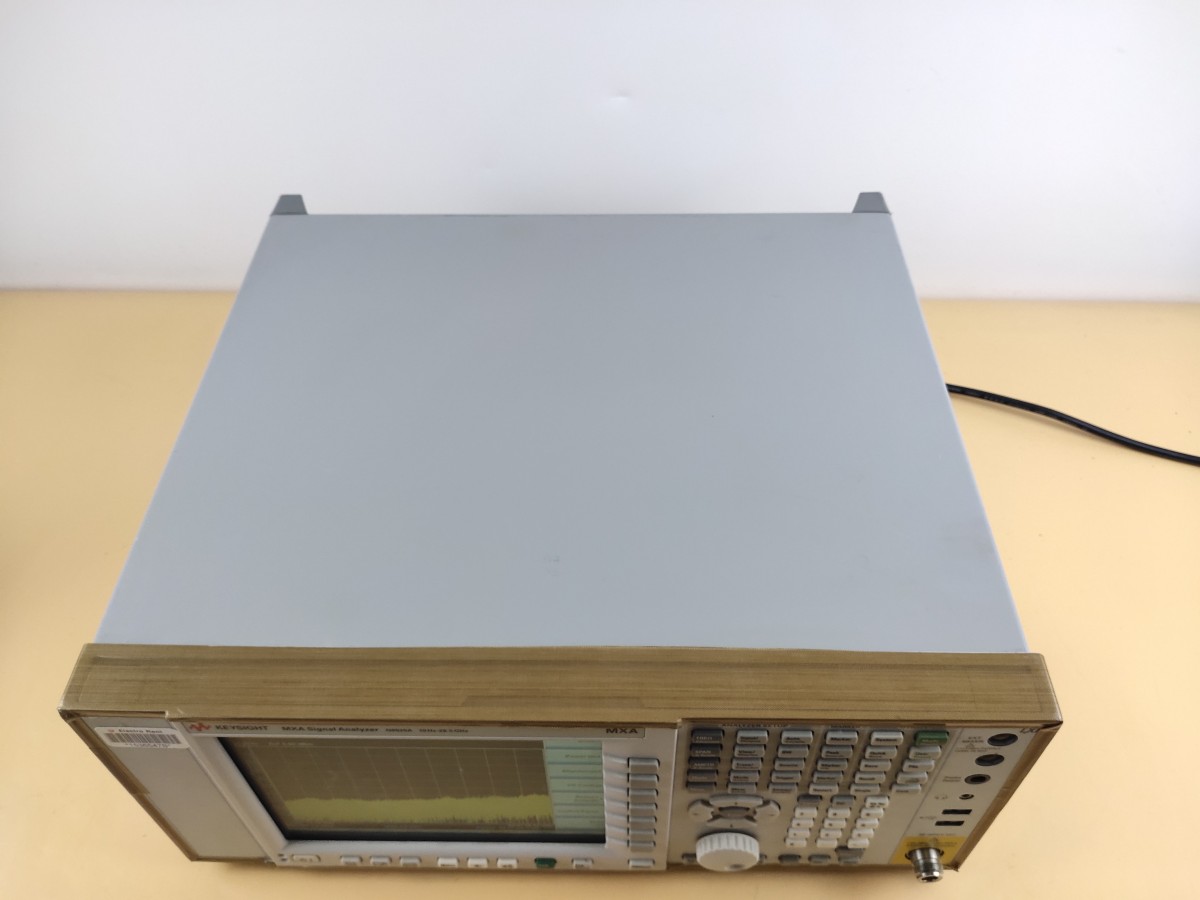

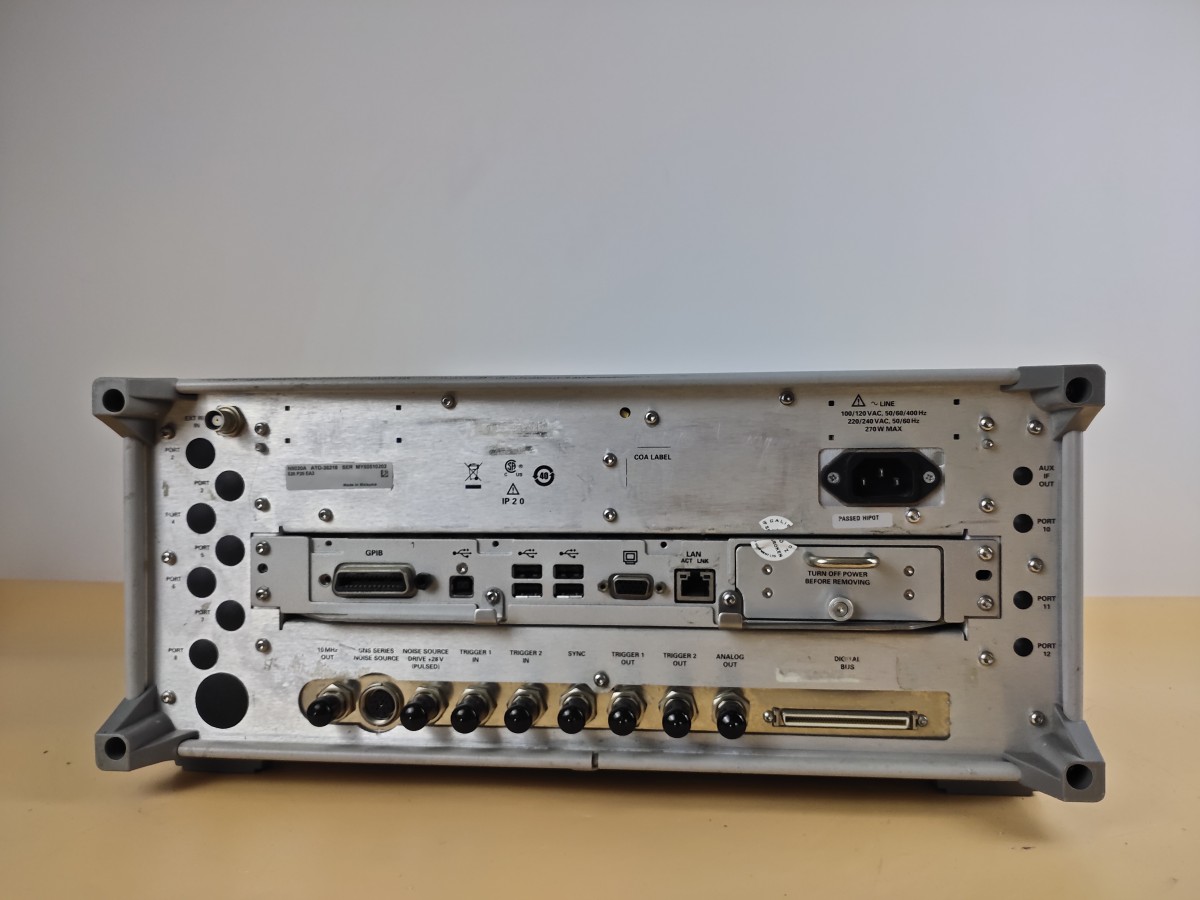

Product Name: Spectrum Analyzer
Brand: Test & Measurement Technology Co., Ltd.
Product Model: N9020A
Frequency Range: 10 Hz to 3.6, 8.4, 13.6, 26.5 GHz
N9020A-RT1 Real-time spectrum analysis with up to 85 MHz bandwidth, basic detection
Technical Specifications
Frequency 10 Hz to 26.5 GHz, Mixers to 1.1 THz
Frequency Options3.6, 8.4, 13.6, and 26.5 GHz, mixed with a mixer to reach 1.1 THz
Analyze bandwidth160 MHz
Bandwidth Options25 MHz standard, 40, 85, 125, 160 MHz
Real-time bandwidth160 MHz
Real-time Bandwidth Option85, 125, 160 MHz
1 GHz DANL-166 dBm
At 1 GHz, phase noise at 10 kHz frequency offset-114 dBc/Hz
At 1 GHz, phase noise at 30 kHz offset-136 dBc/Hz
At 1 GHz, phase noise at 1 MHz offset-137 dBc/Hz
Overall amplitude accuracy ±0.23 dB
Third-order intercept (TOI), 1 GHz+20 dBm
3rd-order dynamic range at 1 GHz116 dB
Instrument TypeSpectrum Analyzer
