1. Brief Introduction:

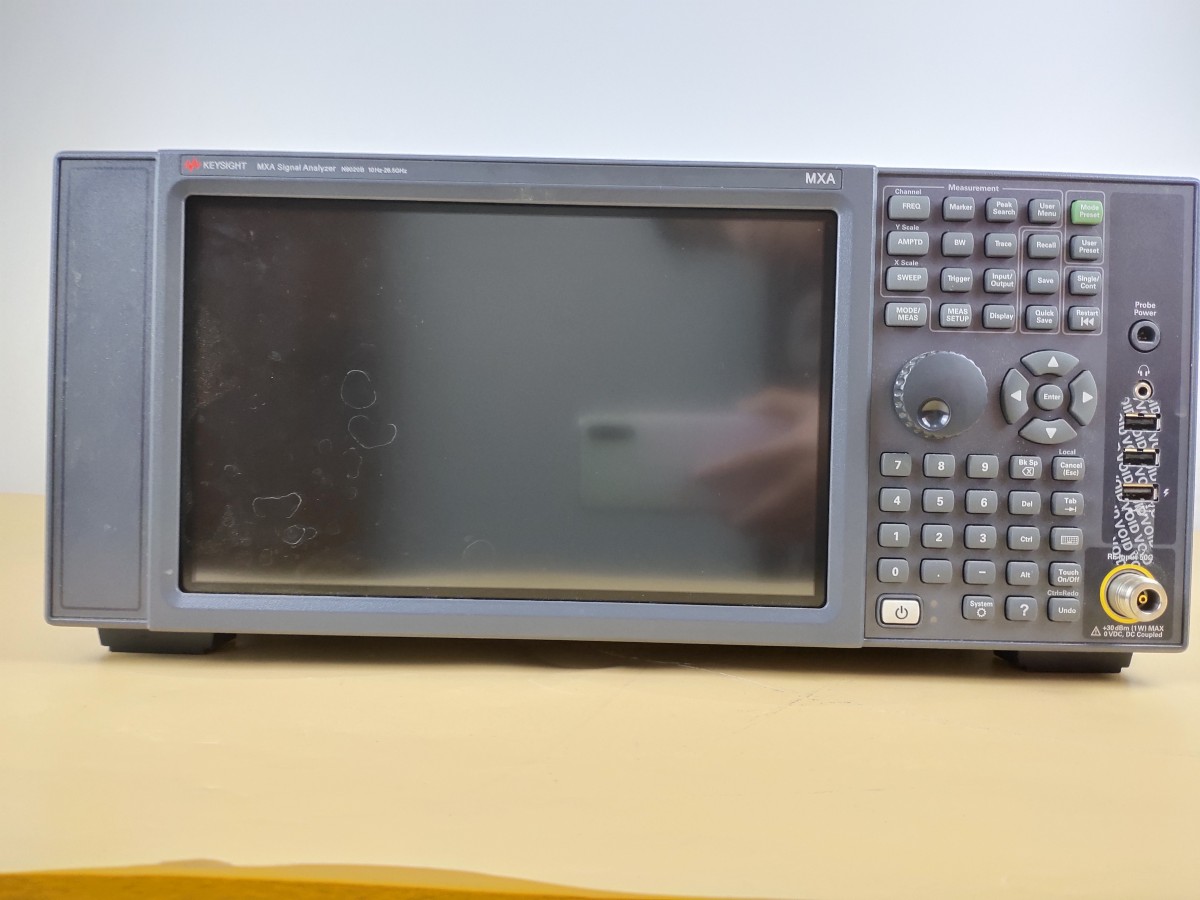

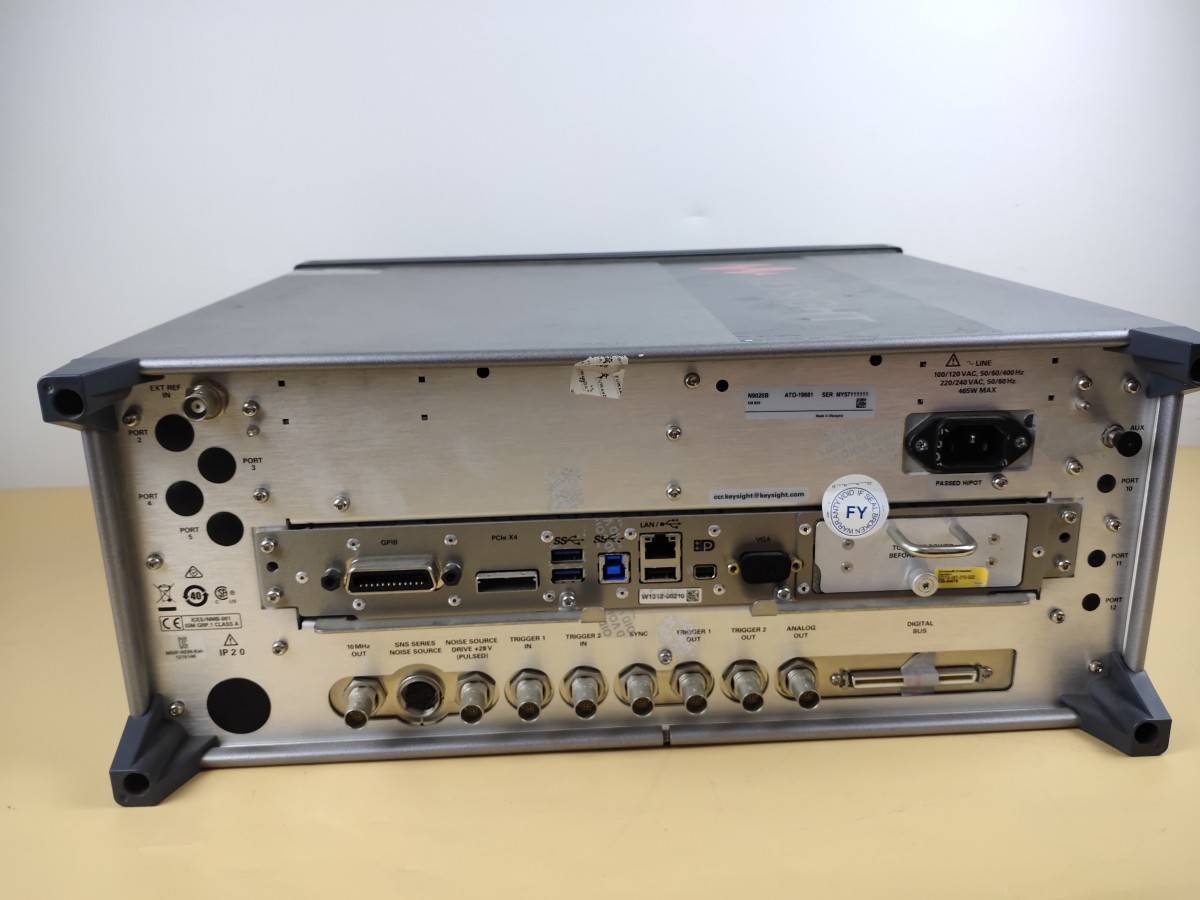

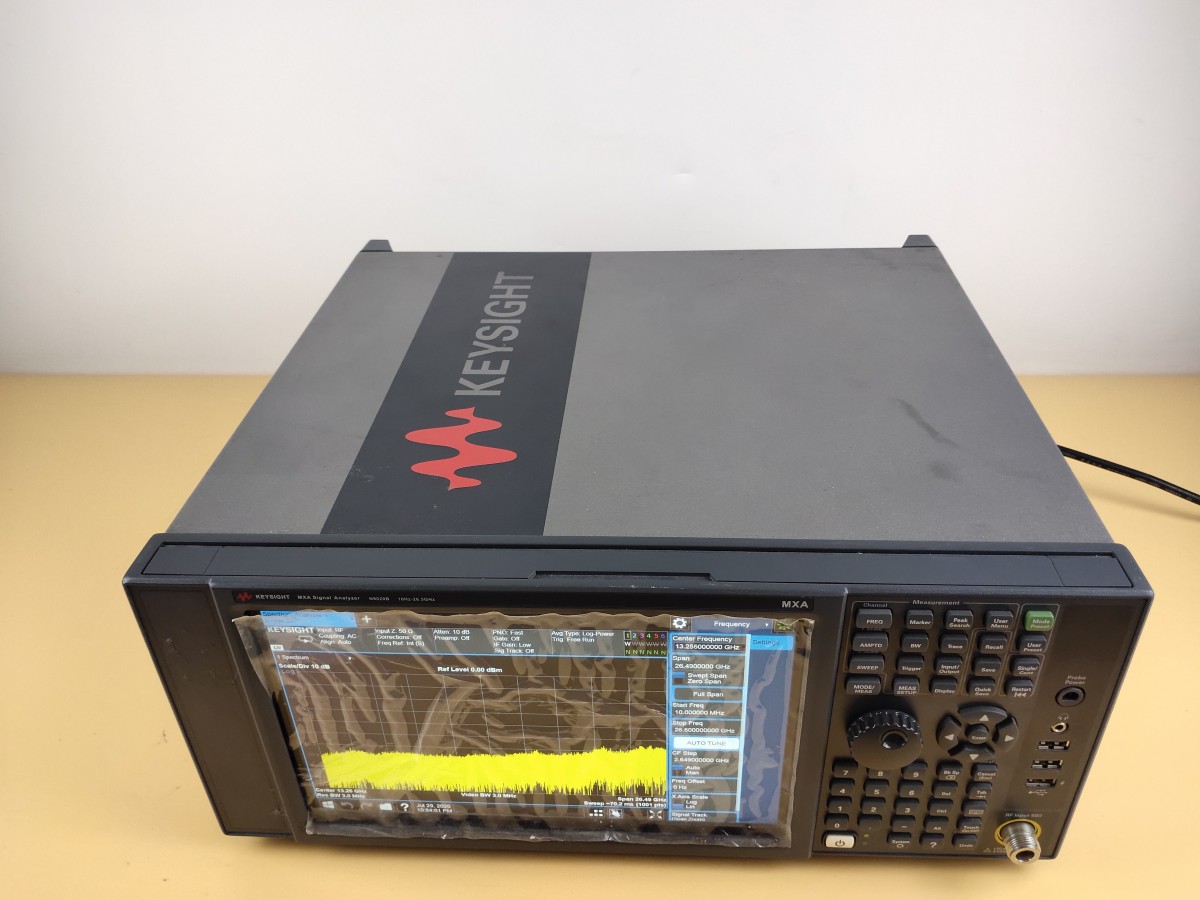

Product Name: Spectrum Analyzer

Brand: TE Connectivity

Product Model: N9020B

Frequency Range: 3.6, 8.4, 13.6, 26.5 GHz; up to 1.1 THz with a mixer

N9020B-RT1 Real-time analysis with up to 85 MHz bandwidth, basic detection, multi-touch

Two, Main Features and Functions

Achieve capture probability for signals with a short duration of 17.3 μs, and provide a full set of advanced triggering functions to observe, capture, and understand elusive signals.

Through integrated real-time display, observe signal dynamics

Protect Your Investment – Add Real-Time Spectrum Analysis (RTSA) to Your Instruments for a Fraction of the Solution Cost

Seamlessly integrate the 89600 software into your system, allowing you to analyze complex signals.

Three, Technical Instructions

FrequencyN/A

Frequency Options3.6, 8.4, 13.6, 26.5 GHz, with mixer, up to 1.1 THz

Analyze bandwidth160 MHz

Bandwidth OptionStandard 25 MHz, 40, 85, 125, 160 MHz

Real-time bandwidth160 MHz

Real-time Bandwidth Option85, 125, 160 MHz

1 GHz DANL-166 dBm

At 1 GHz, the phase noise at 10 kHz frequency offset-114 dBc/Hz

At 1 GHz, phase noise at 30 kHz offset-114 dBc/Hz

At 1 GHz, phase noise at 1 MHz offset-136 dBc/Hz

Overall Accuracy Range±0.23 dB

3rd Order Intercept (TOI), 1 GHz+20 dBm

3rd-order dynamic range at 1 GHz116 dB

Instrument TypeSpectrum Analyzer
