One, Brief Introduction:

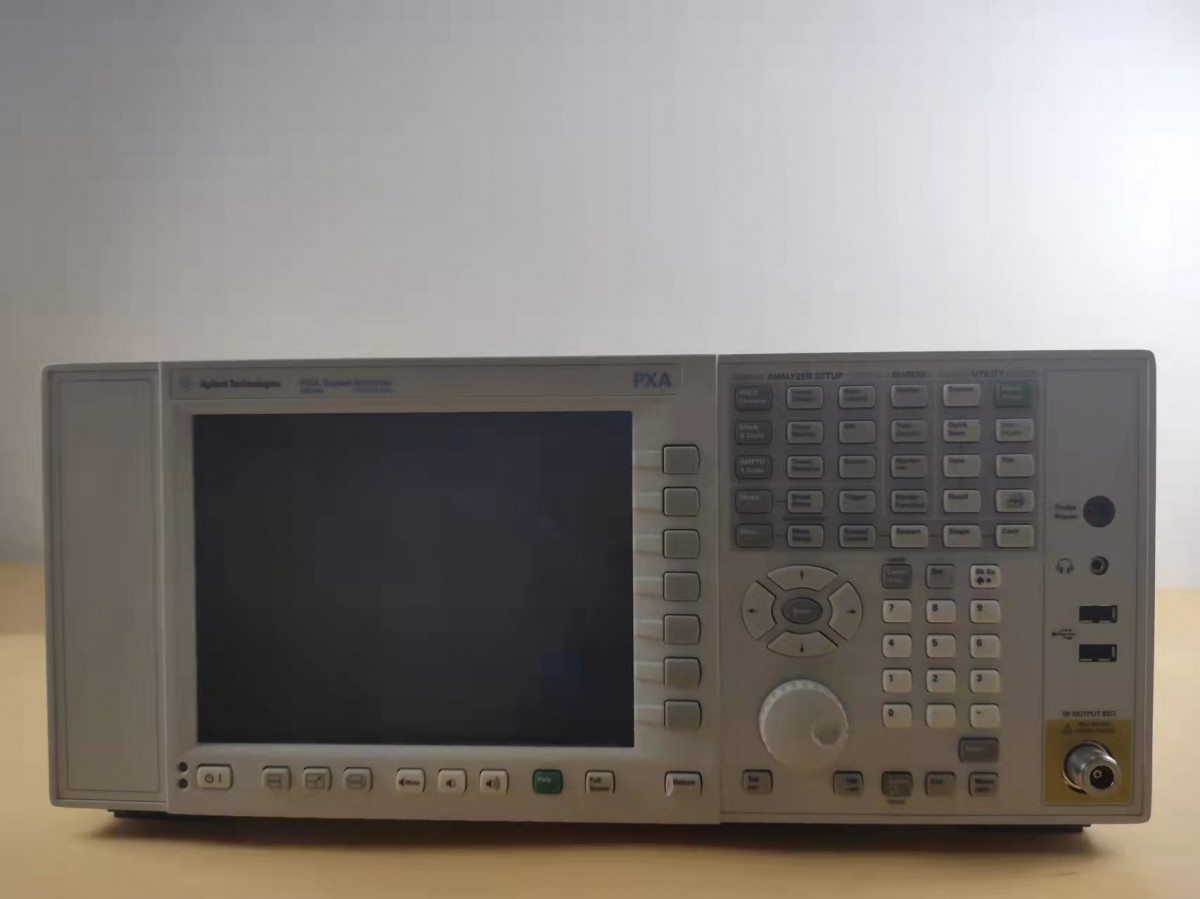

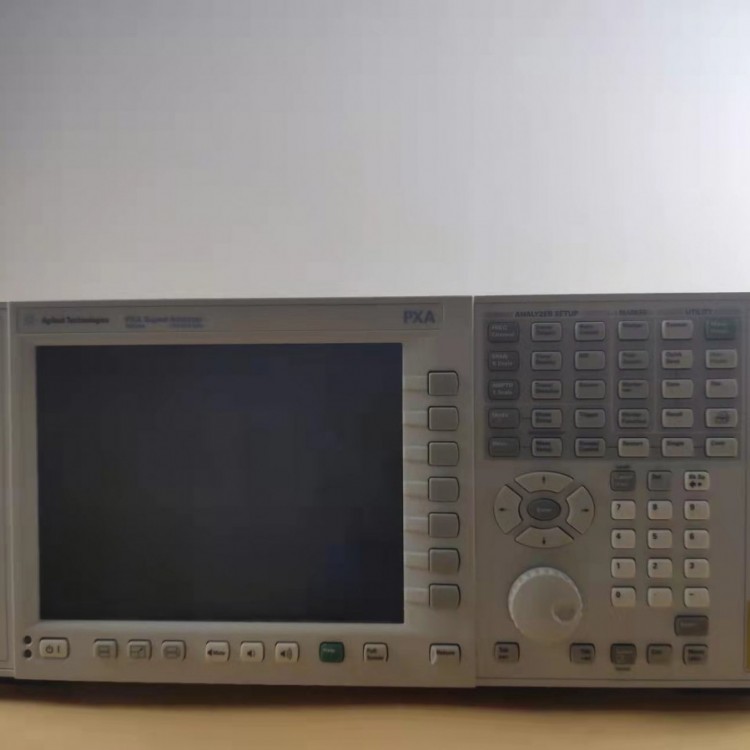

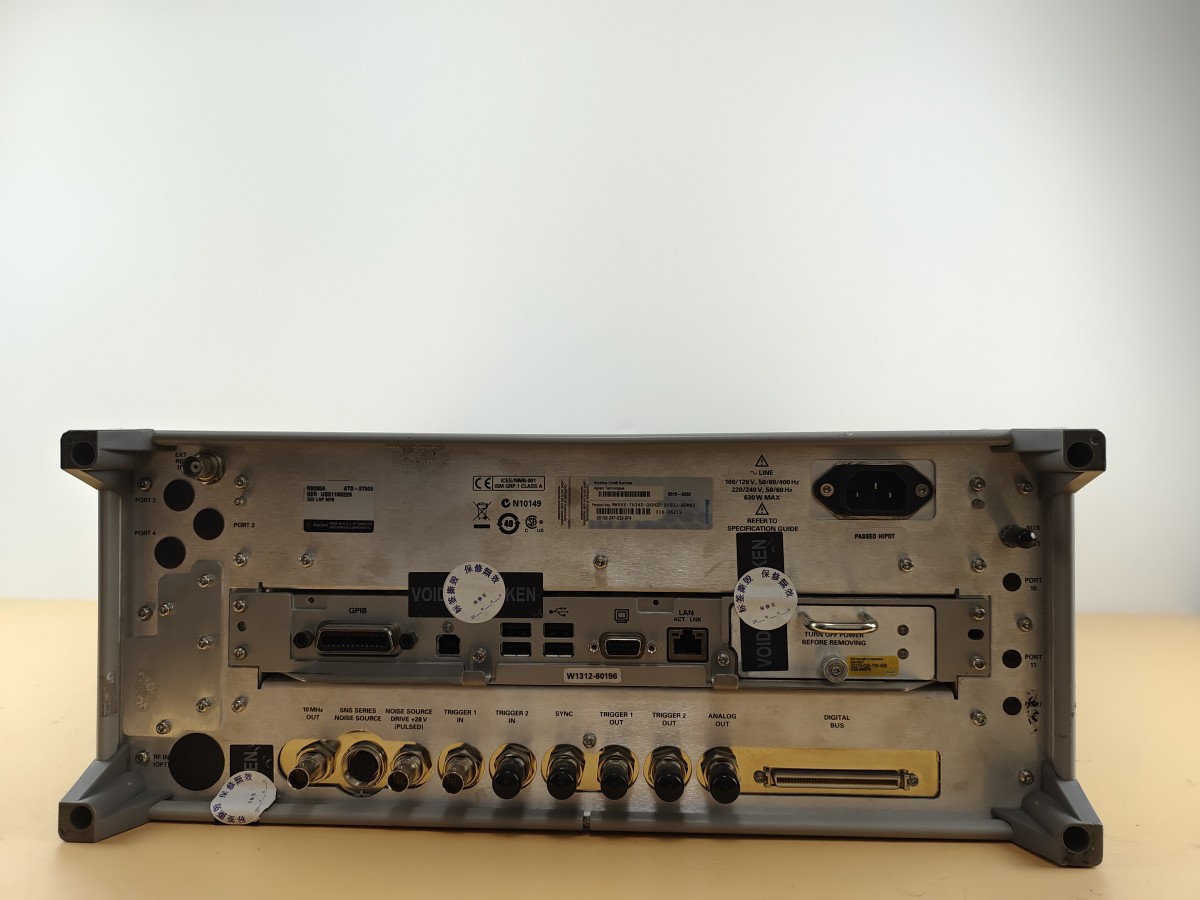

Product Name: Spectrum Analyzer

Brand: Test & Measurement Technology Co., Ltd.

Product Model: N9030A

Frequency Range: 3.6, 8.4, 13.6, 26.5, 43, 44, 50 GHz

N9030A-RT1 Real-time spectrum analysis with a bandwidth of up to 85 MHz, basic detection

Two, Main Features and Functions

Achieve capture probability for signals with a short duration of 15 μs, and provide a full set of advanced triggering functions to capture hard-to-catch signals.

Observe signal dynamics across different display modes: digital and sweep density, spectrum, spectrograms, power variation over time, seamless real-time analysis, etc.

Protect Your Investment – Add Real-Time Spectrum Analysis (RTSA) to Your PXA, at a Fraction of the Solution Cost

Seamlessly integrate the 89600 software into your system, enabling you to analyze complex signals.

External mixer extends RTSA measurement to millimeter wave range

Three, Technical Specifications

Frequency3 Hz to 50 GHz, mixer with 1.1 THz

Frequency Options3.6, 8.4, 13.6, 26.5, 43, 44, and 50 GHz; mixed with a mixer, up to 1.1 THz

Analyze bandwidth160 MHz

Bandwidth OptionStandard 25 MHz, 40, 85, 125, 160 MHz

Real-time bandwidth160 MHz

Real-time Bandwidth Option85, 160 MHz

1 GHz DANL-171 dBm

At 1 GHz, the phase noise at 10 kHz frequency offset-132 dBc/Hz

At 1 GHz, phase noise at 30 kHz frequency offset-132 dBc/Hz

At 1 GHz, phase noise at 1 MHz offset-146 dBc/Hz

Overall amplitude accuracy±0.19 dB

3rd Order Intercept (TOI), 1 GHz+22 dBm

1 GHz at Stage Dynamic Range119 dB

Instrument TypeSpectrum Analyzer
