1. Brief Introduction:

Product Name: Spectrum Analyzer

Brand: TE Connectivity

Product Model: N9030B

Frequency Range: 3.6, 8.4, 13.6, 26.5, 43, 44, 50 GHz; up to 1.1 THz with a mixer.

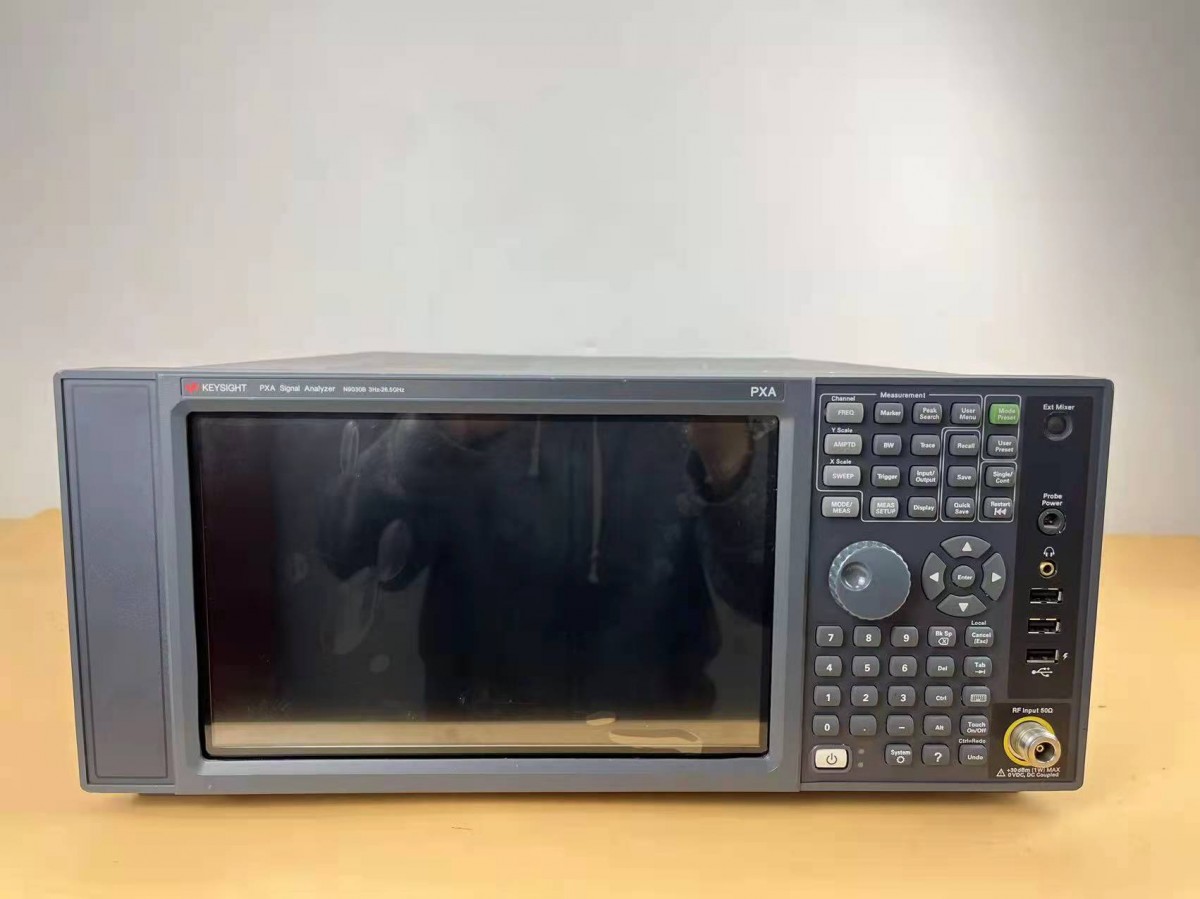

N9030B PXA Signal Analyzer, multi-touch, 2 Hz to 50 GHz

2. Key Features and Functions

Pairing with measurement options can accelerate innovation in demanding application fields.

The Keysight Technologies intelligent mixer extends the frequency range up to 110 GHz.

Utilize the real-time spectrum analysis feature to capture transient or intermittent signals

The X Series application software simplifies testing for specific applications.

89600 VSA software enables deeper fault diagnosis

Three, Technical Specifications

Frequency2 Hz to 50 GHz, mixer with 1.1 THz

Frequency Options3.6, 8.4, 13.6, 26.5, 43, 44, 50 GHz, mixed with a mixer to reach 1.1 THz

Analyze bandwidth510 MHz

Bandwidth Option25 MHz standard, 40, 85, 125, 160, 255, 510 MHz

Real-time bandwidth510 MHz

Real-time Bandwidth Option85, 160, 255, 510 MHz

1 GHz DANL-174 dBm

At 1 GHz, phase noise at 10 kHz frequency offset-136 dBc/Hz

At 1 GHz, phase noise at 30 kHz frequency offset-136 dBc/Hz

At 1 GHz, phase noise at 1 MHz offset-146 dBc/Hz

Overall Accuracy Range±0.19 dB

3rd Order Intercept (TOI), 1 GHz+22 dBm

3rd Order Dynamic Range at 1 GHz118 dB

Instrument TypeSpectrum Analyzer
