I. Brief Introduction:

Brand: AgilEnt/Agilent

Product Model: E4438C

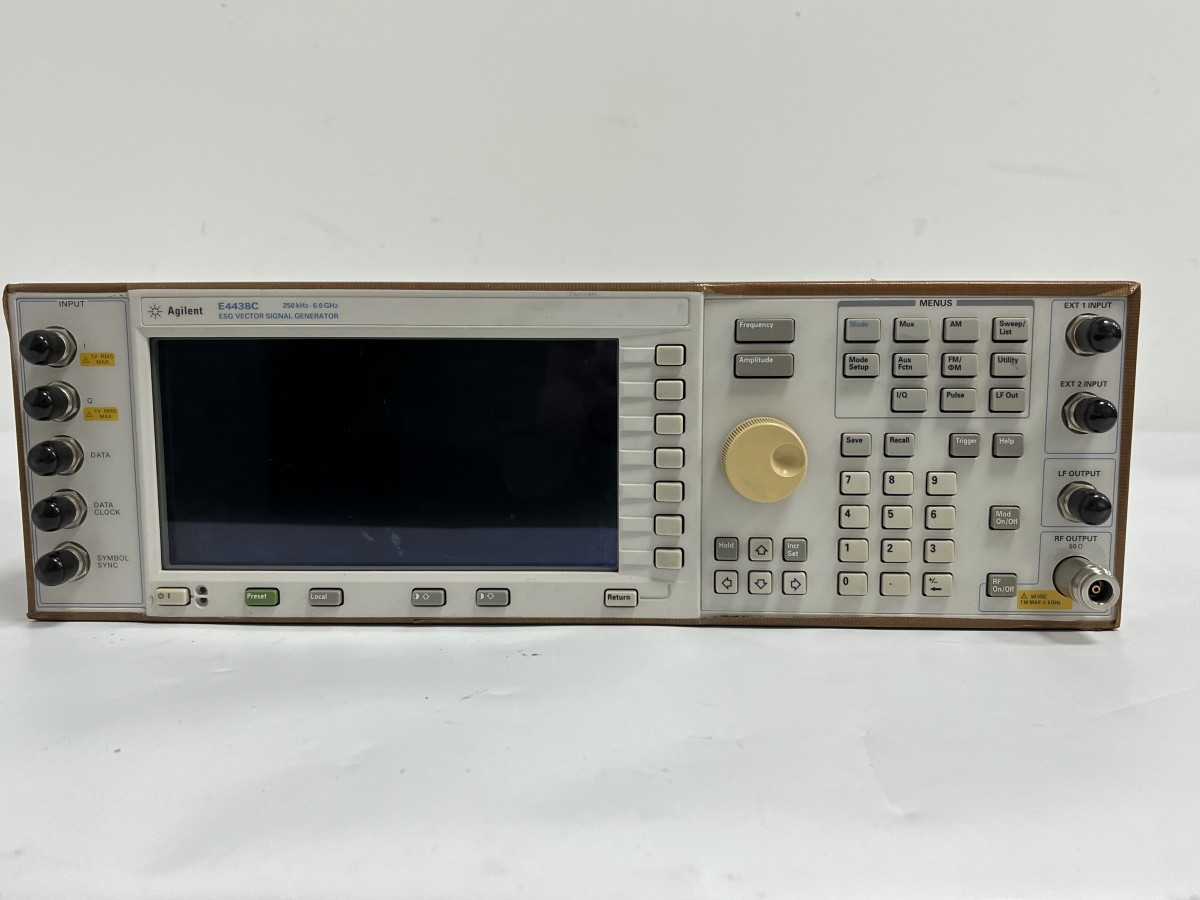

Product Information: E4438C ESG Vector Signal Generator

Product Specifications: E4438C 250 kHz ~ 1 GHz

          E4438C 250 kHz ～2GHz

          E4438C 250 kHz ～3GHz

          E4438C 250 kHz ～4GHz

          E4438C 250 kHz ～6GHz

Section 2: Main Features and Technical Specifications

Signal Characteristics

• 250 kHz to 1, 2, 3.4, or 6 GHz

+17 dBm Output Power

• At 1 GHz and with a 20 kHz offset, phase noise is less than -134 dBc (typical value)

Mixing and Scanning

AM, FM, ØM, and Pulse

• ASK, FSK, MSK, PSK, QAM, Custom I/Q

• Step scan or list scan for frequency and power

Baseband Generation and Signal Generation

• 80 MHz dual-mode integrated baseband generator: arbitrary waveform and real-time I/Q signals

• 64Msa playback storage and 1Gsa storage

• Reference Signal Generation: LTE, HSPA+, WiMAX™, WLAN, DVB-H, GPS/GNSS, MATLAB, etc. - Signal Studio

• Utilize the digital I/O, MIMO fade, RF-to-RF fade of the N5102A, along with the PXB baseband generator and channel emulator to complete multi-channel baseband generation

Automatic and Communication Interface

•10baSet LAN and GPIB

• SCPI and IVI-COM drivers

• Backward compatible with ESG, PSG, and 8648 signal generators
