1. Brief Introduction:

Brand: Agilent / Agilent Technologies

Product Model: E8257D

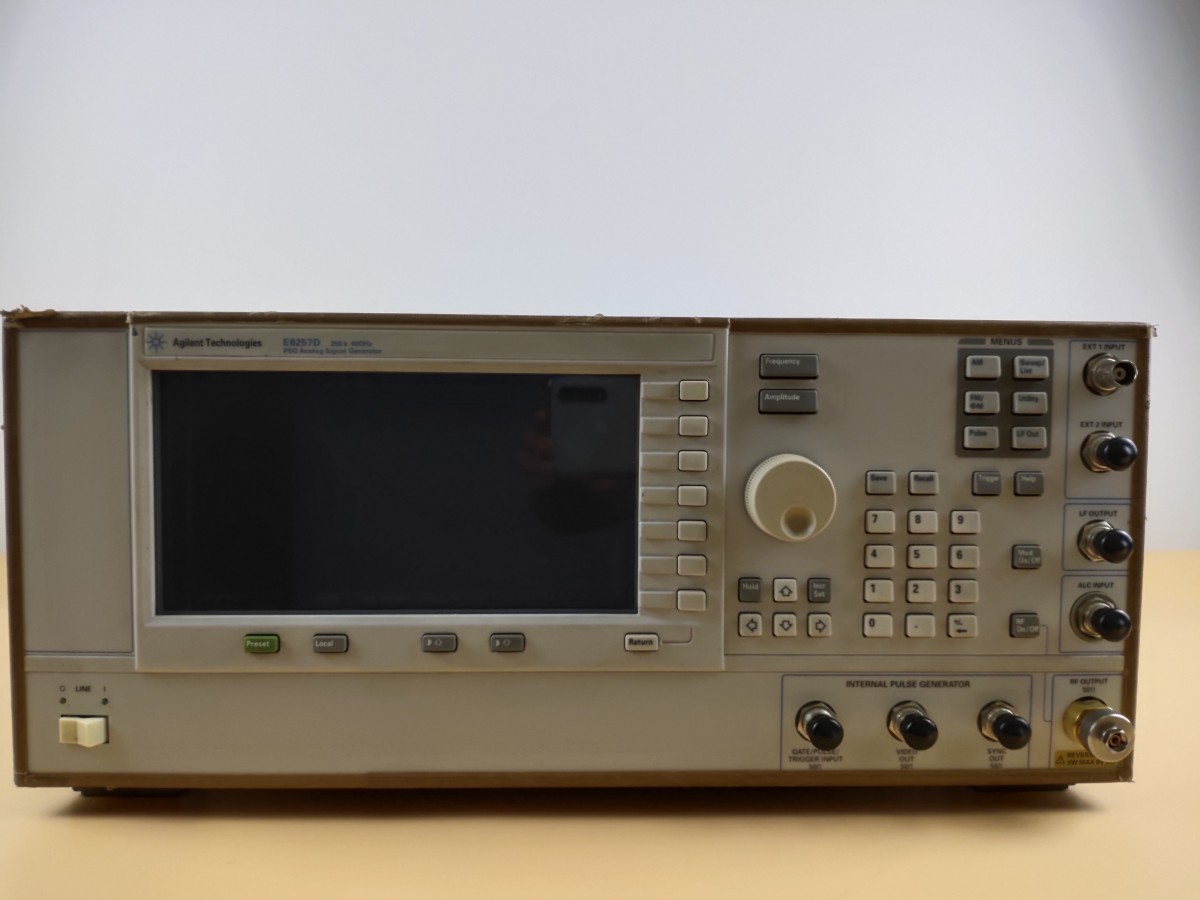

Product Information: E8257D PSG Analog Signal Generator

Product Specifications: E8257D 250 kHz to 20 GHz

E8257D 250 kHz to 31.8 GHz

E8257D 250 kHz to 40 GHz

E8257D 250 kHz to 50 GHz

E8257D 250 kHz to 67 GHz

E8257D 1 0 kHz to 20 GHz

II. Main Features and Technical Specifications

Signal Characteristics

• 250 kHz to 20, 31.8, 40, 50, or 67 GHz, operating up to 70 GHz (0.001 Hz resolution), 10 MHz to 20 GHz (only for option 521)

• Expandable up to 75, 90, 110, 140, 170, 220, 325, or 500 GHz – Millimeter Wave Module

+26 dBm @ 20 GHz, +17 dBm @ 40 GHz, +14 dBm @ 67 GHz output power; Option 521 offers +30 dBm @ 6 GHz and above (typical value)

• Industry - SSB Phase Noise - Option UNX

Mix

• AM, FM, ØM, Pulse, and Scan

• 8 ns rise/fall time and 20 ns pulse width (typical)

• Two built-in function generators: sine wave, square wave, triangle wave, ramp wave, and noise

Scan

• Stepped scan, list scan, and sawtooth scan (frequency and power)

• Utilize the PSA series spectrum analyzers for signal source control • PSA series spectrum analyzers for controlling signal sources

• Compatible with Agilent 8757D scalar network analyzer code

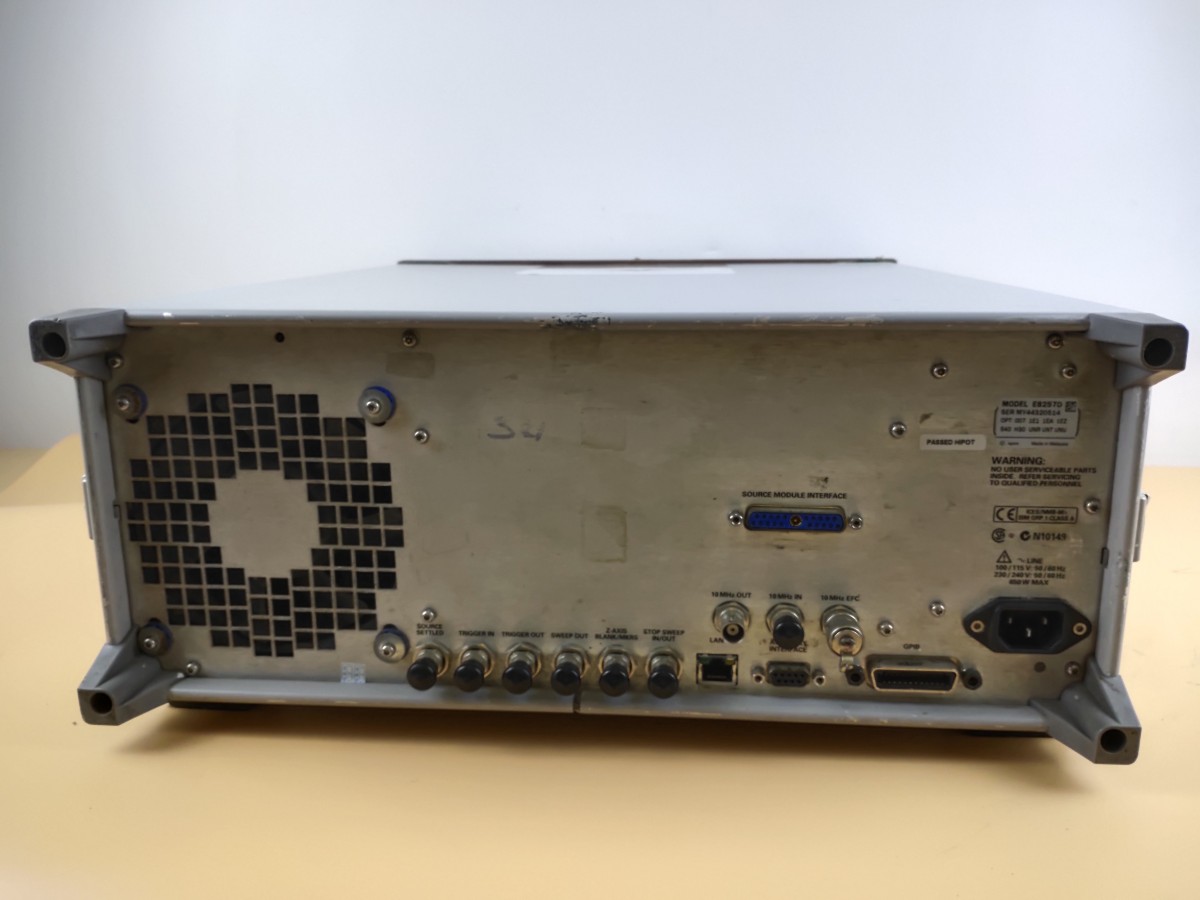

Automatic and Communication Interface

•10baSet LAN and GPIB

•SCPI and IVI-COM drivers

• Backward compatible with all PSG signal generators
