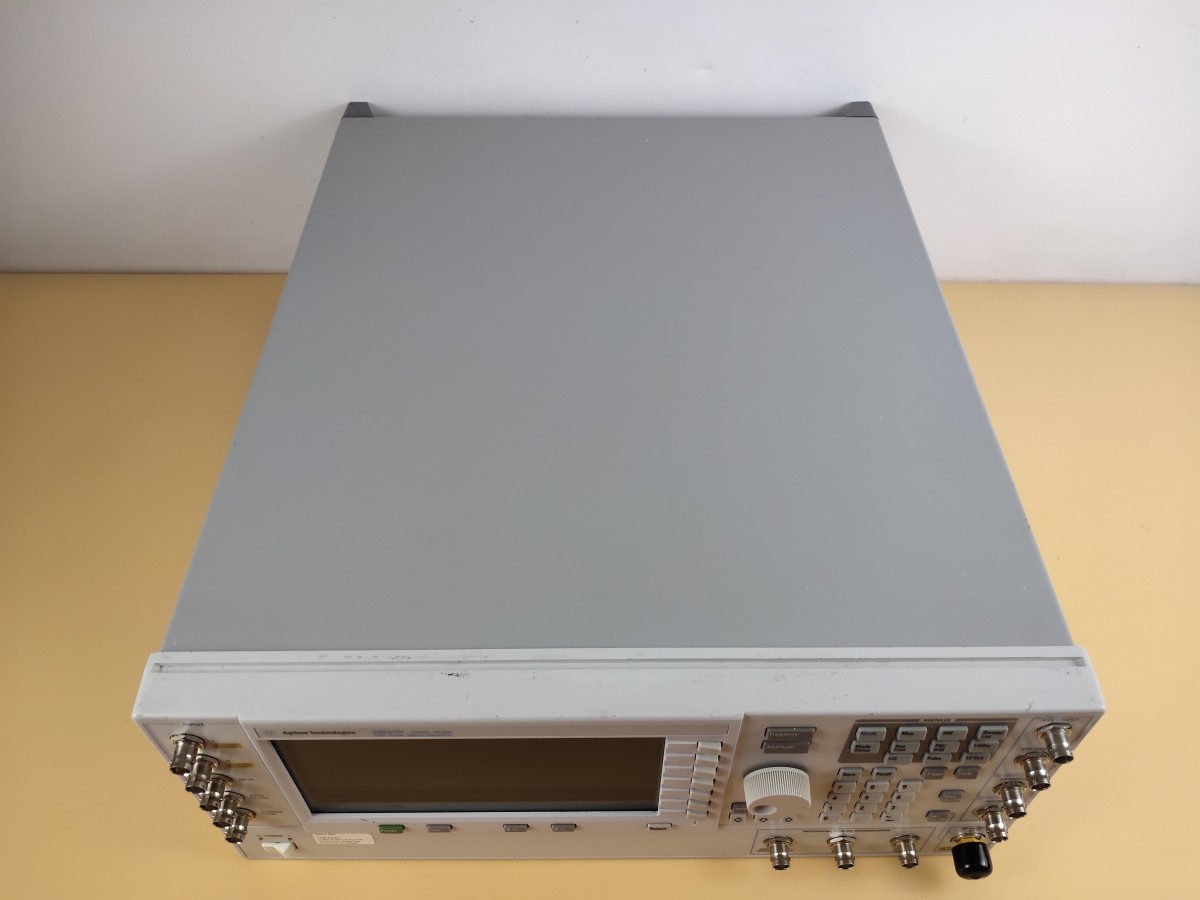

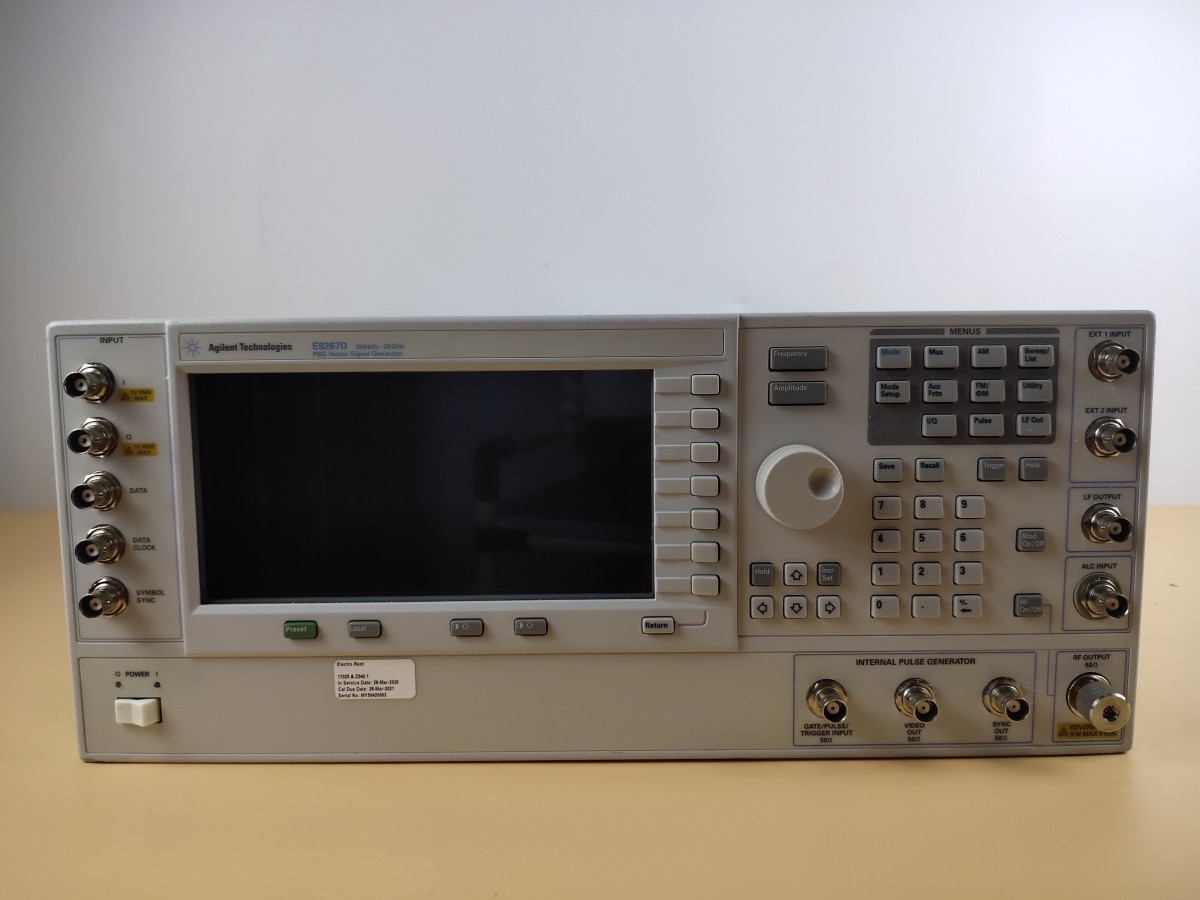

keysigh E8267D-20G Signal Generator

Summary

Industry-leading output power, level accuracy, and phase noise performance up to 67GHz (reaching 70GHz during operation)

High output power and level accuracy often allow you to test high-power devices without the need for an external amplifier.

Maximum reduction of test uncertainty allows you to detect errors early in the design process.

The leading phase noise performance of LING's products (typically -126 dBc/Hz at 10 GHz carrier and 10 kHz frequency offset) makes it an ideal choice for local oscillator, low jitter clock replacement, and adjacent channel selectivity testing.

Performance, suitable for testing射频 and microwave radar, communication, and control systems

Modular Microwave Signal Generator Platform - Optional addition of AM, FM, ØM, and/or Pulse

The platform can generate continuous wave (CW) signals for vibration (LO) substitution or scanning excitation response analysis. It also optionally adds AM, FM, ØM, and/or pulse modulation to describe radio frequency and microwave components and equipment. Additionally, you can configure a signal generator tailored to your specific testing requirements with some performance enhancement options.

You can also customize PSG for your current radio frequency and microwave testing applications, allowing for easy upgrades as your needs evolve.

Key Features and Technical Specifications

Signal Characteristics

100 kHz to 20, 31.8, 40, 50, or 67 GHz, operating up to 70 GHz (0.001 Hz resolution), 10 MHz to 20 GHz (only for option 521)

Expandable to 75, 90, 110, 140, 170, 220, 325, or 500 GHz - Millimeter Wave Module

+26 dBm @ 20 GHz, +17 dBm @ 40 GHz, +14 dBm @ 67 GHz output power; Option 521 offers +30 dBm @ 6 GHz and above (typical value)

Industry's Best SSB Phase Noise - Option UNX

Mix

AM, FM, ØM, Pulse, and Scan

8 ns rise/fall time and 20 ns pulse width (typical)

Two built-in function generators: sine wave, square wave, triangle wave, ramp wave, and noise

Scan

Stepping scan, list scan, and sawtooth scan (frequency and power)

PSA Series Spectrum Analyzers for Signal Source Control

Code compatible with Agilent 8757D scalar network analyzer

Automatic and Communication Interfaces

10baSet LAN and GPIB

SCPI and IVI-COM drivers

Backward compatible with all PSG signal generators
