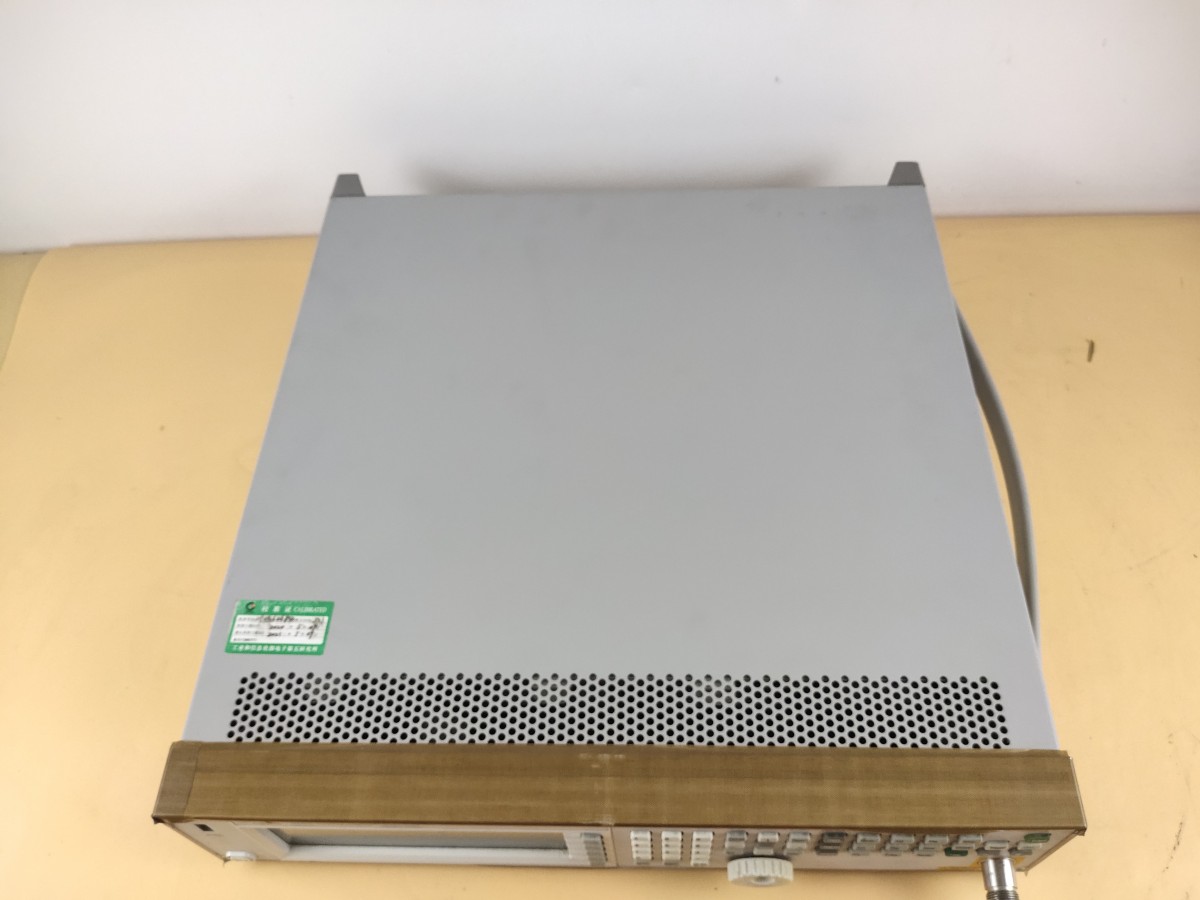

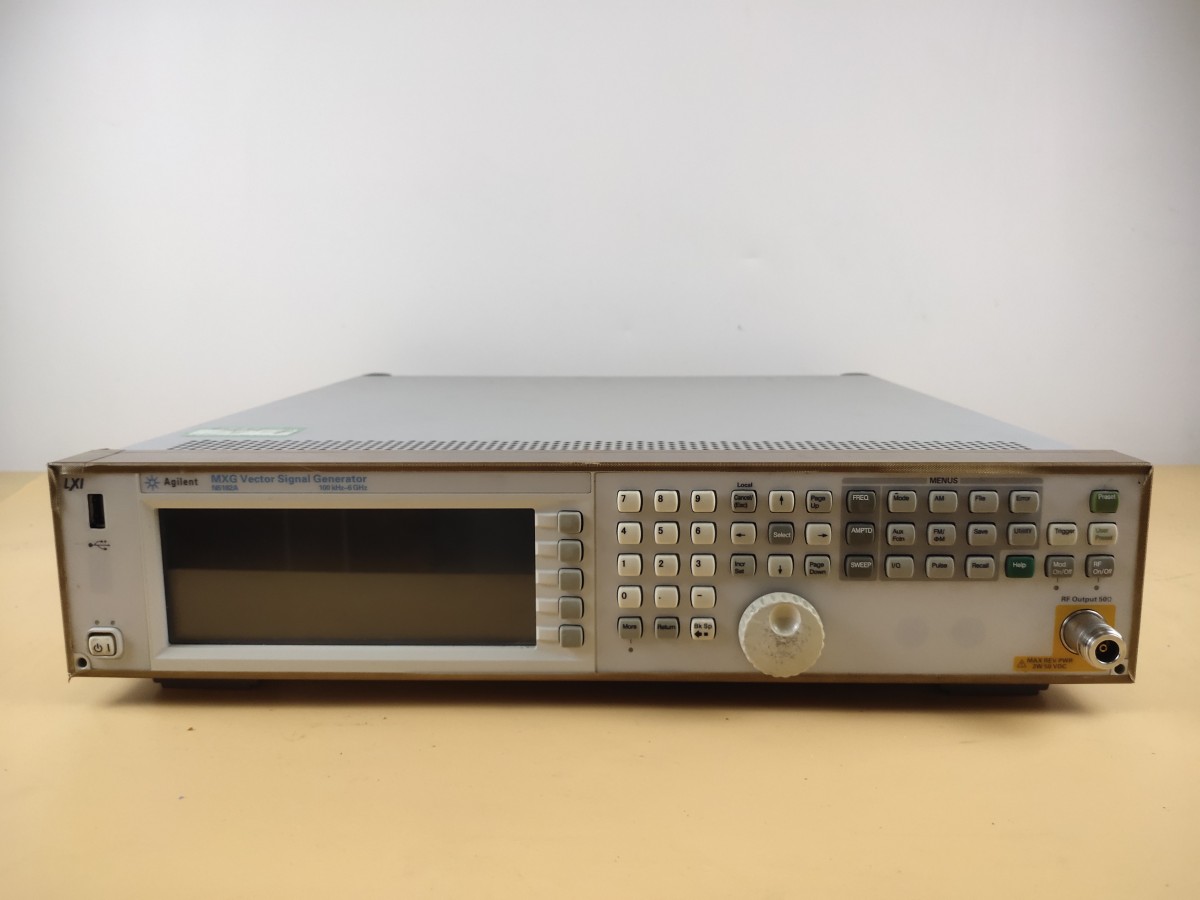

Product Name: RF Vector Signal Generator

Brand: ISDE Technology

Product Model: N5182A

Frequency Range: 100 kHz to 3 or 6 GHz

I. Main Features and Technical Specifications

Signal Characterization

100 kHz to 3 or 6 GHz

Utilizing highly reliable, fast-switching electronic attenuators, >+23 dBm at 3 GHz

W-CDMA Dynamic Range: ≤-73 dBc (Output Power +5 dBm)

In List mode, the switching speed of frequency, amplitude, and waveform is ≤900 μs simultaneously.

Mixing and Scanning

AM, FM, PWM, and Pulse

ASK、FSK、MSK、PSK、QAM

In step mode and list scan modes, synchronize switching between frequency, power, and waveform.

Baseband Generation and Signal Generation

A 100 MHz internal I/Q baseband generator with real-time balance for superior EVM performance

Up to 64 MSa replay storage and 800 MSa storage

Generate reference signals: LTE, HSPA+, WiMAX?, WLAN, DVB-H, DAB, MATLAB, etc. – Signal Generation

Utilize digital I/O, MIMO fading, RF-to-RF fading, along with the N5106A PXB baseband generator and channel emulator to complete multi-channel baseband generation

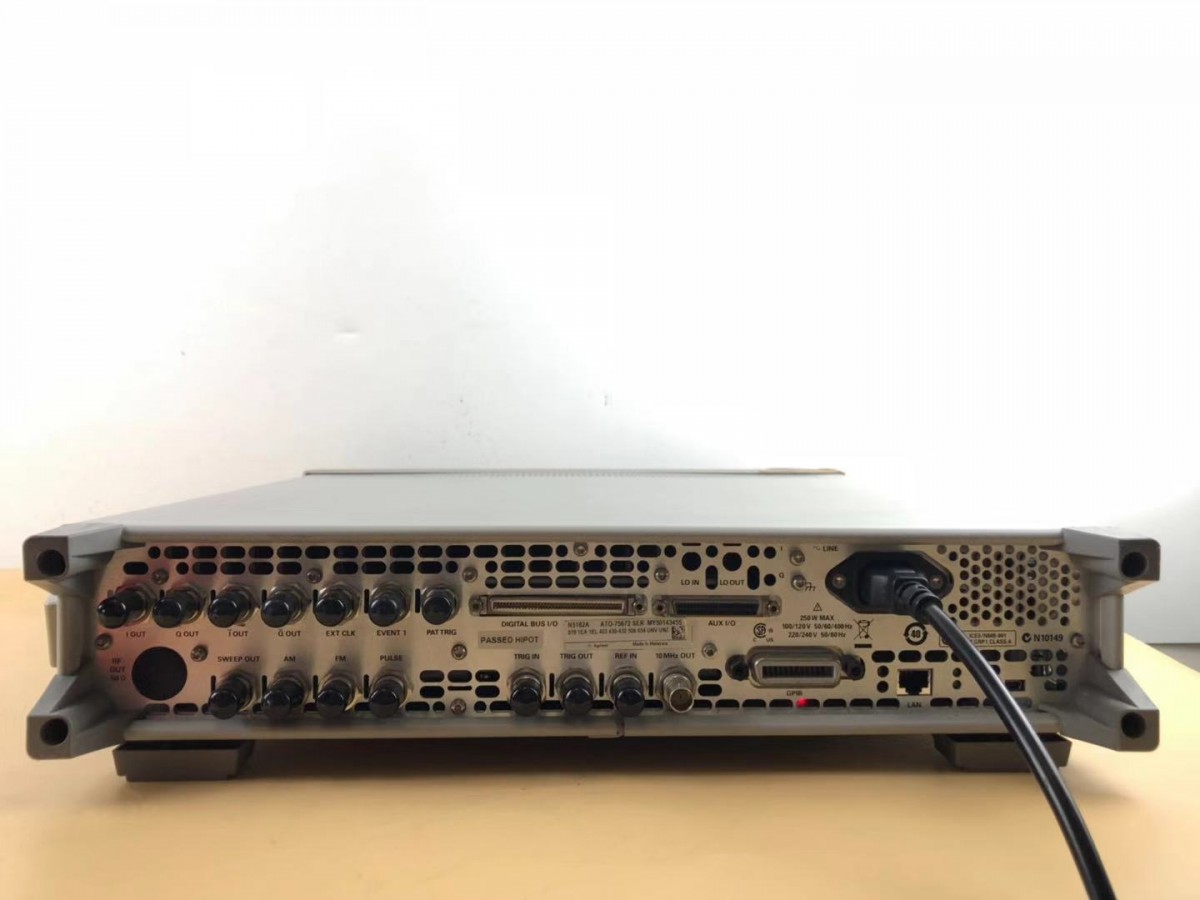

Automatic and Communication Interface

100baSet LAN, LXI B Class standard, USB 2.0, and GPIB

SCPI and IVI-COM drivers

Backward compatible with all ESG, PSG, 8648 signal generators and other manufacturers' signal generators
