1. Brief Introduction:

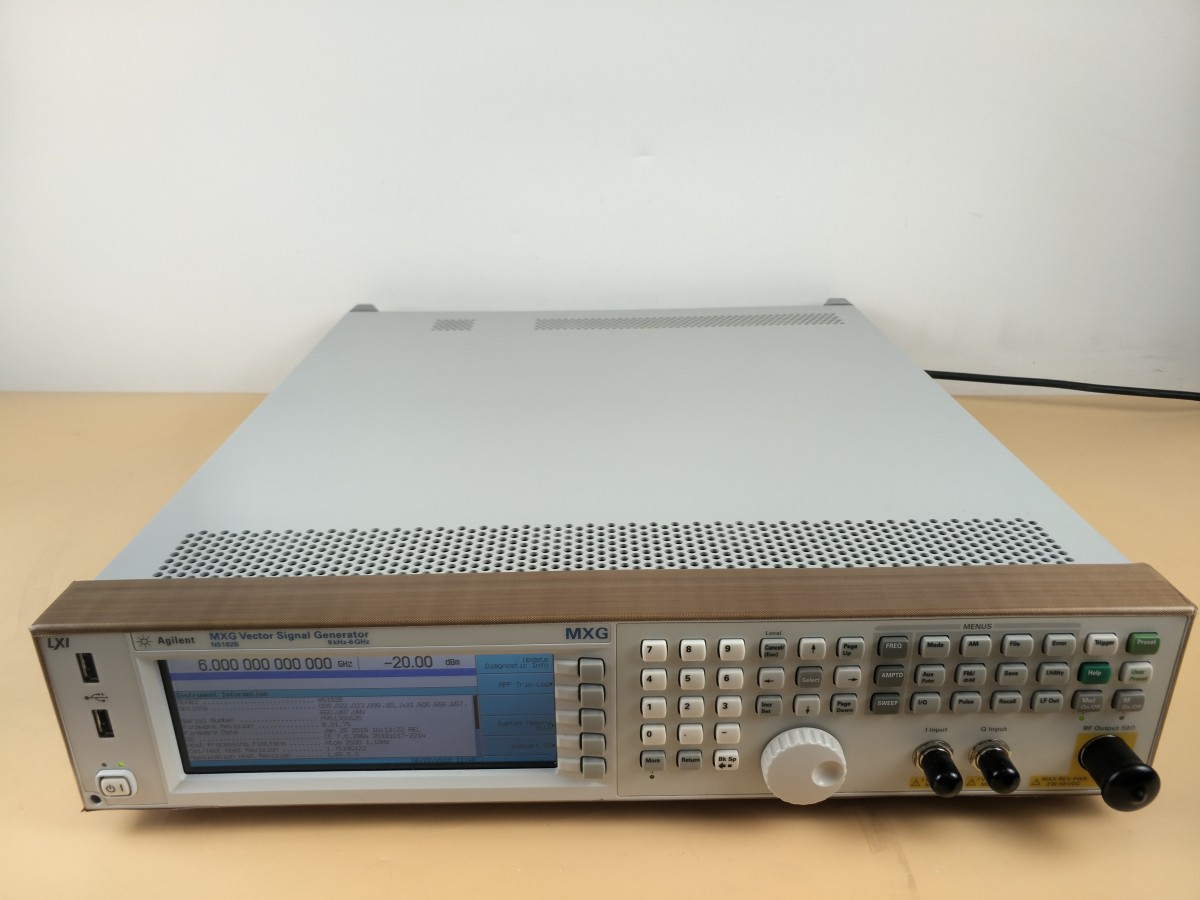

Product Name: RF Vector Signal Generator

Brand: Sichuan IsDe Technology

Product Model: N5182B

Frequency Range: 9 kHz to 3 GHz

9 kHz to 6 GHz

II. Main Features and Technical Specifications

Performance Level                ◆◆◆◆◇◇

Output Power at 1 GHz-144 dBm to +26 dBm

20 kHz phase noise at 1 GHz-146 dBc/Hz

Frequency Conversion                ≤ 800 μs

1 GHz        <-35 dBc

IQ Internal/External Modulation Bandwidth160 MHz to 200 MHz

-96 dBc at 1 GHz

Scan ModeList Step

Baseband Generator ModeWaveform Replay and Real-Time

Software - General

Simulated I/Q Input

I/Q Waveform

Multisound, NPR

Noise (AWGN)

Phase Noise Reduction

Pulse

Pulse train generator

       AM, FM, PM

       ASK

       FSK, MSK

       MATLAB

       PSK

       QAM

Software - Cellular/Wireless Connectivity

Bluetooth

      1xEV-DO

      802.11 WLAN

      802.16 WiMAX

      EDGE Evolution

      GPRS/EGPRS

      GSM/EDGE

      HSPA, HSPA+

      LTE

      NADC, PDC

      PHS, DECT

      TD-SCDMA

      TETRA, APCO

      W-CDMA

      cdma2000

      cdmaOne

Software - Audio/Video Broadcasting

AM/FM Stereo, RDS/RBDS

      ATSC, ATSC-M/H

      CMMB

      DAB, DAB+, DMB-Audio

      DOCSIS DS

      DTMB

      DVB-C/S/S2

      DVB-T/H/T2

      ISDB-T/TSB/TB/Tmm

      J.83 Annex A/B/C

      T-DMB

Software - Detection/Location/Tracking/Navigation

Galileo

GNSS waveform

     GLONASS

     GPS
