I. Brief Introduction:

Brand: AgileNt/Agilent

Product Model: N5183A

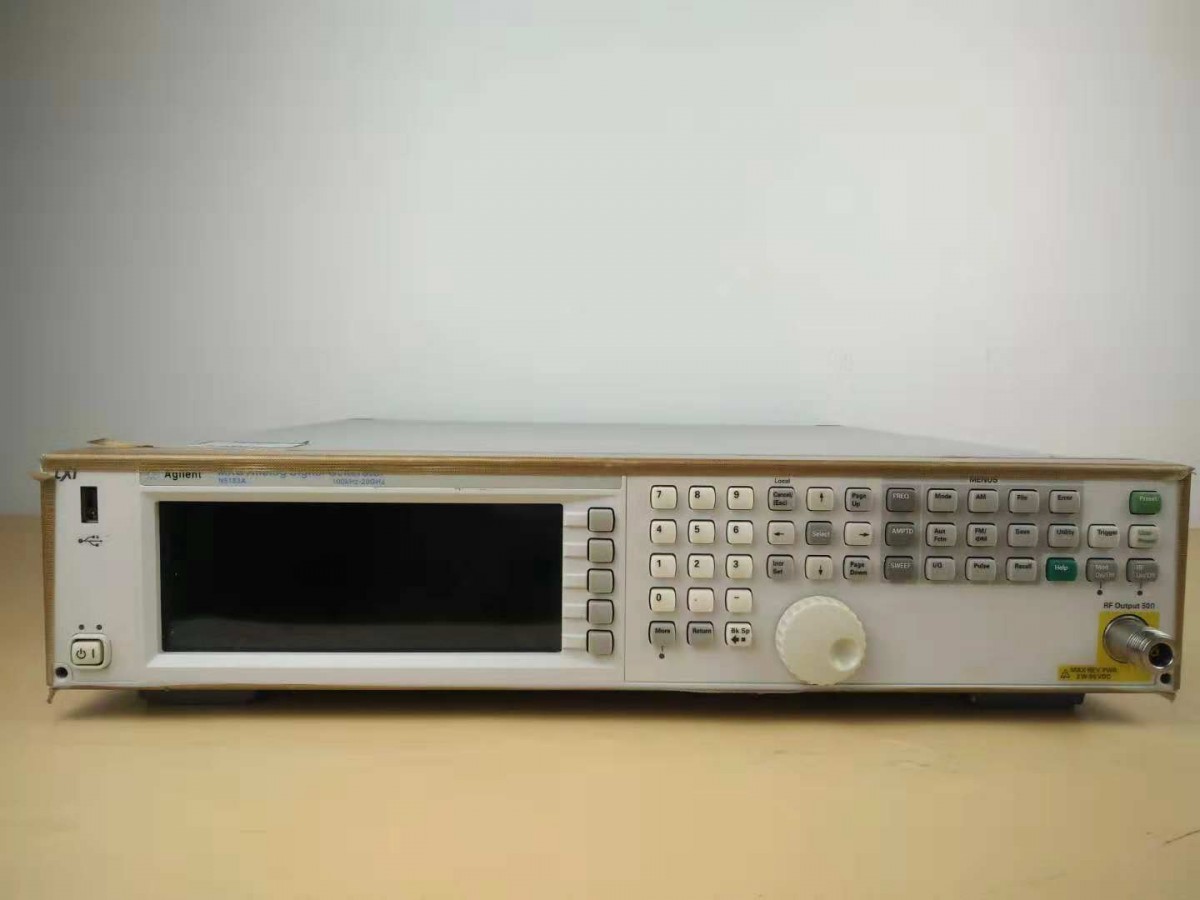

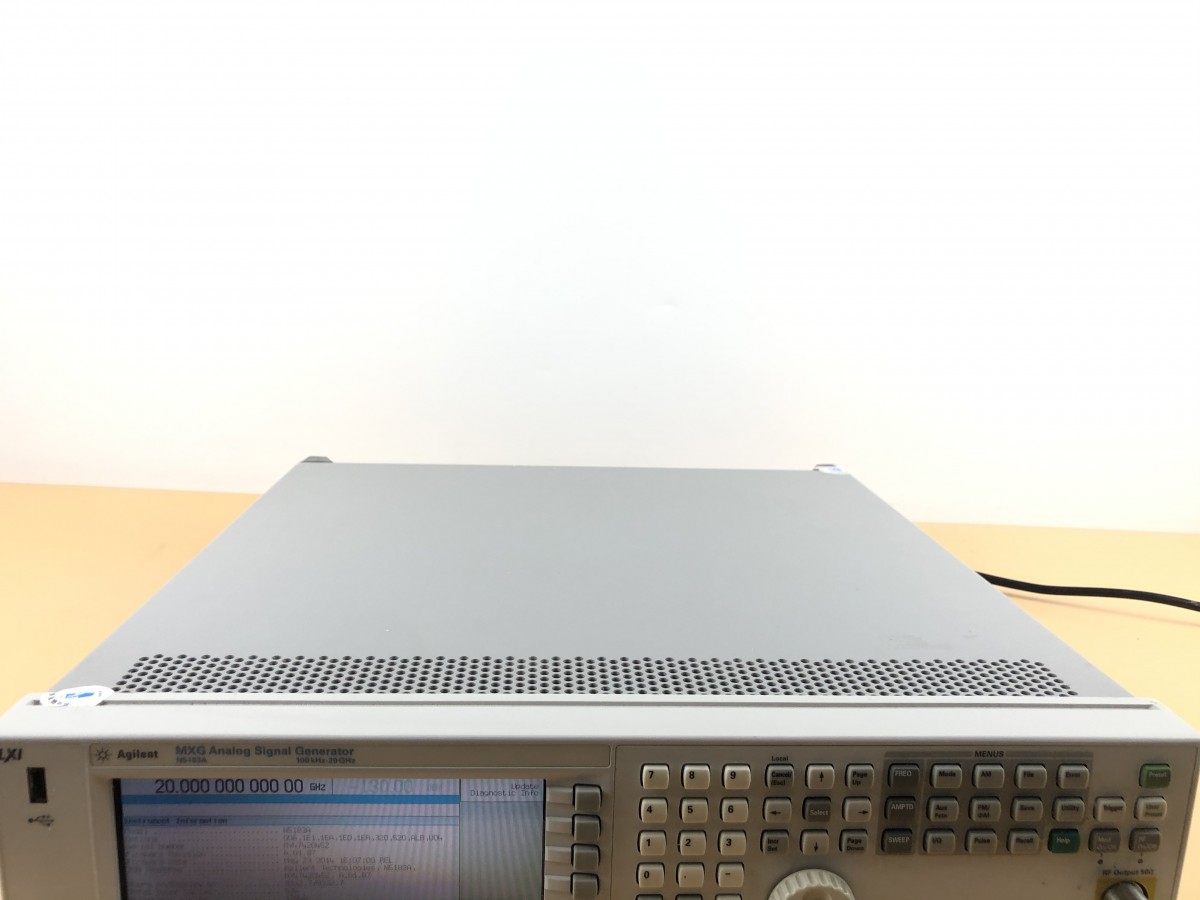

Product Information: AgileNt N5183A MXG Microwave Signal Generator

Product Specifications: 100 kHz to 20 GHz

100 kHz to 31.8 GHz

100 kHz to 40 GHz

II. Main Features and Technical Specifications

Frequency: (100 kHz to 40 GHz)

Frequency Options: ( 20、31.8、40 GHz)

Performance Level: (◆◆◆△△△)

Output power at 1 GHz: (-130 dBm to +18 dBm)

Phase noise at 20 kHz offset, 1 GHz: (-116 dBc/Hz)

Frequency Conversion:(< 600 µs)

Harmonics at 1 GHz:(<-30 dBc)

IQ Internal/External Modulation Bandwidth: (None)

Non-harmonic at 1 GHz: (≤ 70 dBc)

Scan Mode: (List/Step)

Baseband Generator Mode:(N/A)

Software - General:(Pulse/Pulse Train Generator/AM, FM, PM)

Software - Cellular/Wireless Connectivity:(No content)

Software - Audio/Video Broadcasting(N/A)

Software - Detection/Location/Tracking/Navigation: (None)

Waveshape Playback MemoryN/A

Frequency Modulation Offset at 1 GHz: (10 MHz)

Frequency Modulation Rate at 100 kHz Frequency Deviation: (DC to 7 MHz)

Phase Modulation Offset under Normal Mode: (1.25 rad to 160 rad)

Phase Modulation Offset under High Bandwidth Mode: (0.125 rad to 16 rad)

Amplitude Modulation Depth: (90%)

Amplitude Modulation Rate: (0 to 10 kHz)

Available Applications: (Yes)

III. Description

Microwave Signal Generator Optimized for Manufacturing

The N5183A MXG Microwave Signal Generator offers the performance required for broadband device manufacturing (up to 40 GHz). This instrument provides frequency switching of ≤ 900 µs (≤ 600 µs typical) to shorten test times for applications such as antenna testing and manufacturing, with its compact design (2RU) optimizing rack space. The MXG Microwave Signal Generator, with its excellent power and level accuracy, provides reliable stimulation for driving high-power devices. You can configure the MXG to meet current test requirements, such as LO replacement, CW interference, and analog modulation for device characterization, while also easily upgrading to meet future test needs.

Simple self-maintenance features can extend normal operating time to a certain extent.

Each component of the MXG Microwave Simulated Signal Generator can reduce your ownership costs, including field-replaceable components and on-site performance verification tools. Simple self-maintenance and repair features can maximize the operational time of the instrument.
