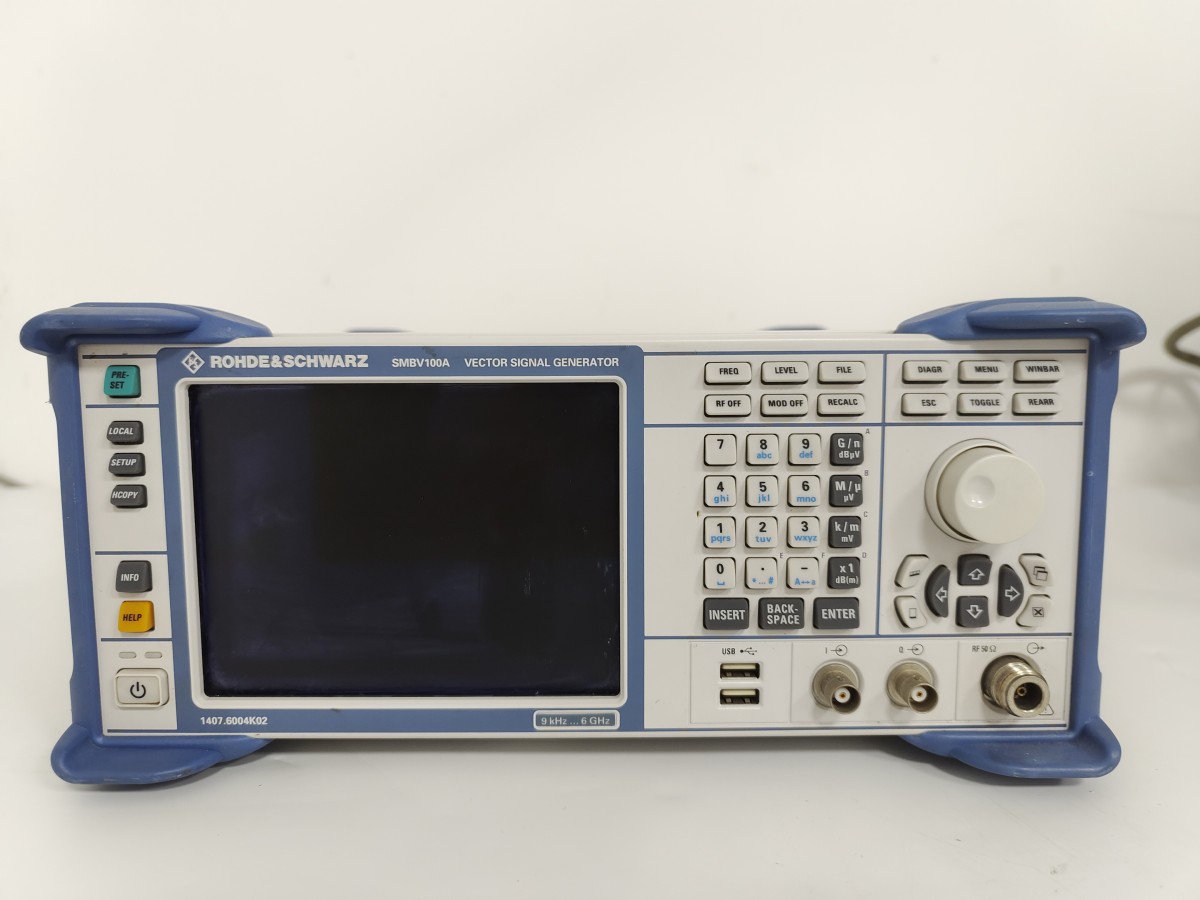

GNSS Global Satellite Navigation System for R&S SMBV100A Vector Signal Generator
Whether in research and development labs or large-scale production, the GNSS solution for R&S SMBV100A sets a new standard in the satellite simulation field. The solution supports all possible scenarios, ranging from simple setups of individual, stationary satellites to flexible applications generated in real-time by up to 24 dynamic GPS (C/A and PCode), Glonass, Galileo, and Bedou satellites.
Supports GPS L1/L2 (C/A and P Code), GLONASSNASS L1/L2, Galileo E1 and BeiDou B1 signals, including mixed constellations.
Live simulation of a true constellation formed by 24 satellites (no pre-computation of waveforms required).
*Flexible scenario generation, including mobile scenarios, dynamic power control, and atmospheric modeling.
Real-world simulation, including scenarios with limited satellite visibility, multipath effects, antenna pattern characteristics, and flight attitude changes.
Static mode for basic receiver testing, with a fixed Doppler shift or zero Doppler shift in the signal.
Supports A-GNSS testing scenarios for auxiliary data generation for GPS, Glonass, Galileo, and BeiDou.
*Supports real-time generation of external import track data under controlled mode.
Supports high dynamic mode for aircraft rotation simulation and P-code signal generation required by aerospace projects.
*Supports real-time generation of external import track records in controlled mode.
Supports Ground-Based Augmentation System (GBAS) signal simulation.
One instrument supports multiple digital communication standards (GSM, WCDMA, HSPA+, LTE, WiMAX, WLAN, ...) and wireless broadcast standards (DAB, Sirius XM Satellite Radio, HD Radio™, FM stereo)..., making GNSS receiver testing easier.
Flexible scenario generation makes receiver testing simple and straightforward.
Faster testing, real-time GNSS signal generation
Supports static modes for basic receiver testing, with a fixed Doppler shift or zero Doppler shift in the signal
Unlimited simulation time, automatically switches between satellites in operation
Supports auxiliary GNSS (A-GNSS) test cases, applicable to GPS, Glonass, Galileo, BeiDou, and QZSS
Support for a variety of aerospace applications
Support for real-time generation of external import track records in controlled mode
R&S SMBV100A utilizes the Position Dilution of Precision (PDOP) factor to generate a hybrid GPS, Glonass,
Galileo and BeiDou constellations. All GPS scenarios currently defined for A-GPS test cases are internally implemented in the R&S SMBV100A.
Real-world simulation
Simulate the real receiver testing environment
Simulated Atmospheric Environment Modeling
User-defined receiving antenna pattern characteristics
Real-time dynamic motion simulation of the tested object, including drone attitude simulation
Urban峡谷 effect under city conditions, including building obstructions and multipath effects
* Noise and interference signal simulation editor for urban "valley effect," focusing on building obstructions and multipath effects. Users can define the length, width, and height characteristics of buildings within the local coordinate system. The screenshot above shows a city environment view composed of 66 buildings. Solutions can be customized with flexible options.
Instrument configuration is customized to meet customer requirements.
Supports multiple GNSS signals, including GPS, Glonass, Galileo, and BeiDou
Applicable for R&D and production, the selection tree displays the dependency relationships of GNSS options. GNSS simulation expands the applications of vector signal generators.
Supports all major industry digital standards
Custom internal signal generator
Sexual satisfaction for various applications
The R&S SMBV100A offers optional support for various digital communication standards and analog/digital wireless broadcast standards.
Features of Different Options
