One, Brief Description:

Brand: Rohde & Schwarz

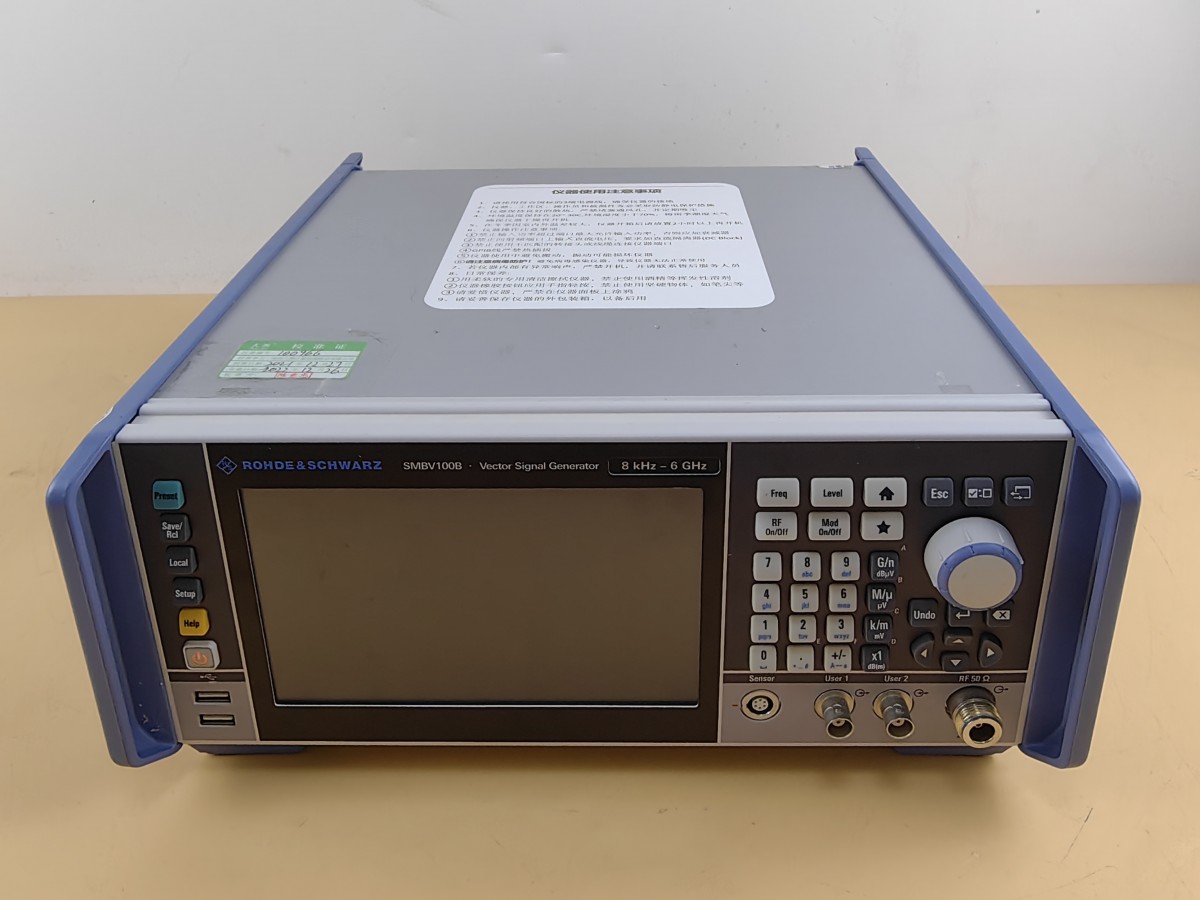

Product Model: SMBV100B

Product Information: Vector Signal Generator

Product Specifications: 8 kHz to 3 GHz

8 kHz to 6 GHz

II. Key Features

Frequency range between 8 kHz and 3 GHz or 6 GHz

Output Power, up to +34 dBm

500 MHz Modulation Bandwidth, Accuracy

Level Range: -127 dBm to +25 dBm

Section 3: Features and Advantages:

Signal Quality

Real-time user-defined frequency response calibration, capable of compensating for the effects of test fixtures

SSB Phase Noise: < -134 dBc at 1 GHz, 20 kHz offset

Broader modulation bandwidth, exceptional accuracy: Modulation frequency response < 0.3 dB within the 500 MHz bandwidth range (measured value)

Excellent EVM and ACPR, capable of achieving high power levels

2. Excellent output power

Ultra-high output power: Up to +34 dBm at 1 GHz

Continuous Wave and Modulated Signal Level Accuracy: Level Linearity < 0.2 dB (measured value)

3. User-friendly

7" touch screen, easy operation

Contextual online help system and SCPI logs for easy automation

Internal real-time signal generation

Protect User Data

4. Easy Upgrade

Easily upgrade the instrument on-site with the software activation code.

Limited-Time Software Option License

R&S LegacyPro: Upgrade Test and Measurement Equipment

Replace outdated signal generators: Simulate Rohde & Schwarz and other suppliers' signal generators (e.g., R&S SMBV100A, Keysight MXG/EXG)

、Aeroflex、Anritsu）
